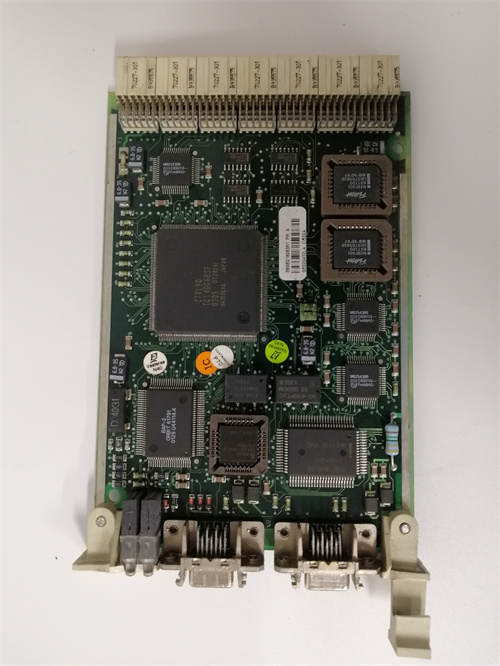

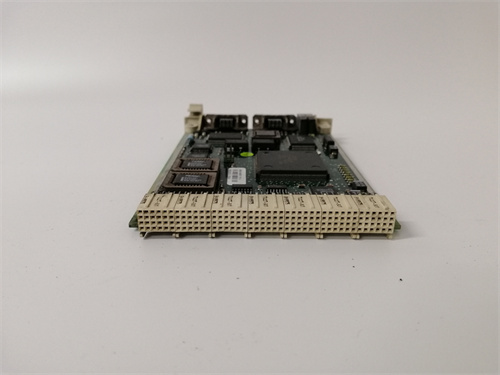

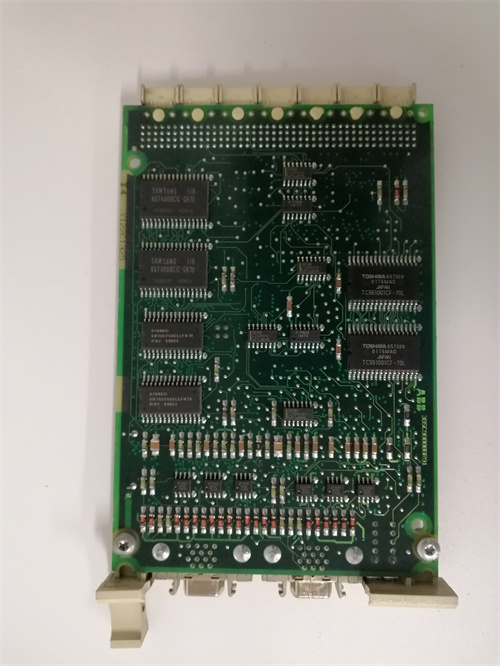

ABB CI522A 3BSE018283R1

Description

Product Description

The ABB CI522A 3BSE018283R1 is a versatile and powerful communication interface module for the ABB AC 800M controller family, used within the System 800xA and Compact Product Suite automation systems. This module functions as a PROFIBUS DP-V1 Slave (or Device) interface, allowing an AC 800M controller or an S800 I/O station to seamlessly integrate into an existing PROFIBUS DP network as a subordinate device. The ABB CI522A 3BSE018283R1 enables a master controller (from ABB, Siemens, or any other vendor) to read data from and write data to the AC 800M system, facilitating hierarchical control or data exchange in multi-vendor environments. For system integrators needing to connect ABB’s advanced control platform to a higher-level PROFIBUS master, the ABB CI522A 3BSE018283R1 provides a robust and configurable solution. Technical specifications and configuration guides for this module are available at [Insert Link Here].

Product Parameters

• Product Type: PROFIBUS DP-V1 Slave Communication Interface Module
• System Series: ABB AC 800M, S800 I/O (as a communication interface).
• PROFIBUS Role: Operates as a PROFIBUS DP-V1 Slave (Device). Supports both cyclic and acyclic (MSAC2) data exchange.
• Communication Port: One RS-485 port via a 9-pin D-sub connector for connection to the PROFIBUS DP network.
• Baud Rate: Auto-baud detection or manually configurable from 9.6 kbps up to 12 Mbps.
• PROFIBUS Address: Set via rotary switches or software configuration (depending on variant).
• Data Exchange Area: Provides a configurable amount of input and output data (e.g., up to 244 bytes each) to be mapped between the PROFIBUS master and the AC 800M controller’s process image.
• Integration: Installs into a dedicated communication slot in an AC 800M controller (e.g., PM851, PM861) or into an S800 I/O station (e.g., TU847 with a communication module base).
• Configuration: Configured using ABB’s Control Builder M engineering software. Requires a GSD (General Station Description) file for the master’s configuration.
• Diagnostics: Provides comprehensive diagnostics for the module itself and PROFIBUS communication status, accessible via Control Builder and LED indicators.

Advantages and Features

• Multi-Vendor Integration: The key advantage of the ABB CI522A 3BSE018283R1 is its ability to integrate AC 800M systems as a reliable and intelligent slave into PROFIBUS networks managed by other PLCs or DCS systems (e.g., Siemens, ABB Master, etc.).
• High Flexibility: Supports the advanced PROFIBUS DP-V1 standard, enabling not only fast cyclic I/O data exchange but also acyclic parameterization and diagnostic services from the master.
• Large Data Capacity: The configurable data area allows for the exchange of significant amounts of process and status data, supporting complex integration scenarios.
• Robust and Reliable: Built to ABB’s industrial standards, ensuring stable communication in electrically noisy plant environments.
• Seamless AC 800M Integration: Data exchanged via the ABB CI522A 3BSE018283R1 is directly mapped into the AC 800M controller’s software application, appearing as standard I/O or communication variables for easy programming.
• Clear Diagnostics: Status LEDs and detailed software diagnostics simplify troubleshooting of network and module issues.

Application Cases in Key Fields

• Automotive Manufacturing: Integrating an AC 800M-controlled process cell (e.g., painting, welding) as a slave into a Siemens-based main production line PROFIBUS network.
• Water and Wastewater: Using an AC 800M controller to manage a remote pumping station or treatment basin, with its data being read by a central SCADA master PLC via PROFIBUS DP.
• Pharmaceutical: Incorporating a standalone AC 800M skid (e.g., a clean-in-place system) into a plant-wide Siemens or Rockwell control network for monitoring and supervisory control.
• Material Handling: Allowing a central material transport PLC to send commands and receive status from AC 800M-controlled conveyor sections or sorting machines.
• Power Generation (Auxiliary Systems): Integrating balance-of-plant systems controlled by AC 800M (e.g., water treatment, fuel handling) into the main turbine DCS or plant SCADA system.

Comparisons with Competing Products

• Vs. ABB’s PROFIBUS Master Modules (e.g., CI867): The master module allows the AC 800M to control other slaves. The ABB CI522A 3BSE018283R1 is the slave counterpart, allowing the AC 800M to be controlled by another master. They serve opposite roles in the network hierarchy.
• Vs. Generic PROFIBUS Slave Gateways: Third-party gateways can provide similar connectivity but often lack the deep, direct integration with the AC 800M’s backplane and Control Builder software. The ABB CI522A offers superior performance and easier configuration within the native ecosystem.
• Vs. Communication Modules for Other Protocols (e.g., CI854 for Ethernet): The ABB CI522A 3BSE018283R1 is dedicated to PROFIBUS DP-V1. Other modules support different protocols like Modbus TCP, EtherNet/IP, or OPC. The choice is dictated by the network protocol of the higher-level system.
• Vs. Hardwired I/O Integration: Using a communication module like the ABB CI522A is far more efficient and flexible than using hundreds of hardwired discrete signals to exchange data between two separate control systems.

Selection Suggestions and Precautions

• Selection Advice:
  1. Define the Master-Slave Relationship: Clearly establish that the AC 800M system will be the slave device. The ABB CI522A 3BSE018283R1 is the correct choice for this architecture.
  2. Determine Data Exchange Requirements: Map out exactly what data (I/O states, setpoints, alarms) needs to be exchanged and calculate the total byte count for inputs and outputs to ensure it fits within the module’s capacity.
  3. Coordinate with Master System Engineer: Obtain the GSD file for the ABB CI522A 3BSE018283R1 from ABB and provide it to the engineer configuring the PROFIBUS master. Agree on the slave address and data layout.
  4. Choose Installation Location: Decide whether the module will be installed directly in the AC 800M controller or in a remote S800 I/O station, based on physical layout and network topology.
• Important Precautions:
  1. Correct PROFIBUS Network Installation: Adhere strictly to PROFIBUS installation standards: use proper shielded cable, ensure correct bus termination at both ends of the segment, and avoid excessive drop line lengths.
  2. Address Configuration: Ensure the PROFIBUS slave address set on the ABB CI522A 3BSE018283R1 (via switches or software) is unique on the network and matches the address configured in the master’s project.
  3. Configuration Synchronization: The data mapping configured in Control Builder M for the ABB CI522A 3BSE018283R1 must exactly match the data layout configured in the master station’s software. Any mismatch will result in corrupt data.
  4. Grounding: Properly ground the PROFIBUS cable shield at the master end (or as per network design) to prevent ground loops and ensure noise immunity.
  5. Firmware Compatibility: Ensure the firmware version of the communication module is compatible with the version of Control Builder M and the AC 800M controller firmware.
