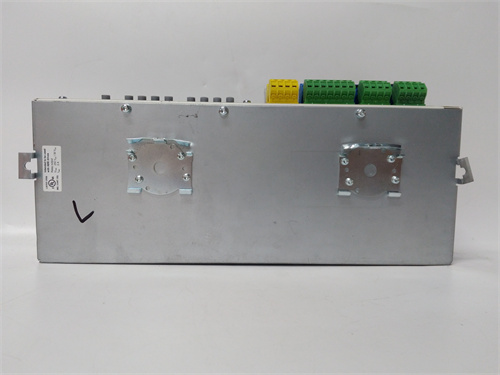

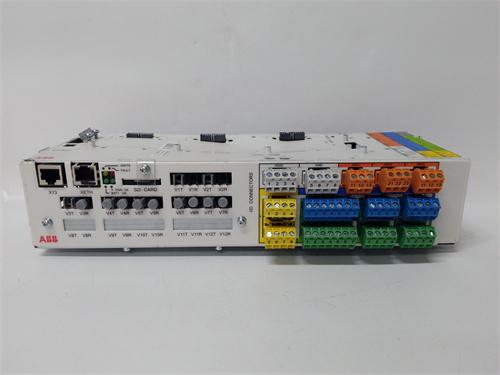

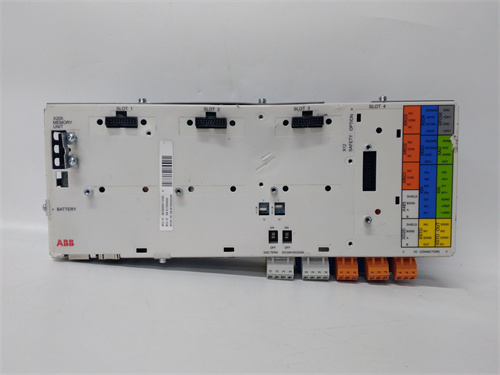

ABB BCU-12

Description

Product Description

Product Parameters

Advantages and Features

1. Multi-Mode Control Flexibility

   The ABB BCU-12 supports V/f, scalar, and vector control modes, enabling precise regulation of different motor types for applications ranging from HVAC fans to heavy-duty conveyor systems.

2. Seamless Communication & Integration

   With built-in Modbus RTU and expandable industrial protocols, the ABB BCU-12 integrates effortlessly with PLCs, SCADA systems, and DCS platforms, facilitating centralized monitoring and control of drive systems.

3. Compact Modular Design

   The compact footprint of the ABB BCU-12 saves valuable cabinet space, while its modular architecture allows users to add I/O or communication modules as needed, avoiding over-investment in unnecessary features.

4. Comprehensive Protection Mechanisms

   Equipped with multi-layer protection functions (overcurrent, overvoltage, motor overload, etc.), the ABB BCU-12 safeguards both the drive and the motor, reducing downtime and maintenance costs.

5. User-Friendly Configuration

   Compatible with ABB Drive composer software, the ABB BCU-12 enables intuitive parameter setup, diagnostic testing, and firmware updates, cutting commissioning time by up to 30%.

Application Cases in Application Fields

1. HVAC Systems in Commercial Buildings

   In a large shopping mall’s HVAC system, the ABB BCU-12 controls the speed of centrifugal fans and water pumps, adjusting motor output based on real-time temperature and humidity data. This variable speed control reduces energy consumption by 25–30% compared to fixed-speed systems, lowering operational costs.

2. Conveyor Systems in Logistics Warehouses

   A logistics center uses the ABB BCU-12 to synchronize multiple conveyor belt motors, ensuring smooth and consistent material handling. The control unit’s vector control mode maintains stable torque even at low speeds, preventing product jams and improving throughput.

3. Pump Control in Water Utilities

   Municipal water treatment plants deploy the ABB BCU-12 to regulate booster pumps, adjusting motor speed according to pipeline pressure. Its overpressure protection feature prevents pipe damage, while its communication capabilities enable remote monitoring of pump status.

4. Industrial Mixers in Food & Beverage Production

   In a beverage factory, the ABB BCU-12 controls the speed of mixing tank motors, ensuring uniform blending of ingredients. The control unit’s precise torque regulation avoids over-mixing or under-mixing, maintaining consistent product quality.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Match with ABB ACS880 Drives

   Prioritize the ABB BCU-12 for use with ABB ACS880 industrial drives to ensure optimal compatibility and performance; it is not recommended for third-party drive systems due to protocol limitations.

2. Assess Expansion Needs

   Choose the ABB BCU-12 if your application requires scalable I/O or communication options; opt for fixed-function control units only if your system has unchanging requirements.

3. Consider Environmental Conditions

   Select the ABB BCU-12 for applications with ambient temperatures up to +60°C or vibration-prone environments, as it offers better durability than competitors with narrower operating ranges.

Precautions

1. Wiring Safety

   Ensure the power supply is disconnected before wiring the ABB BCU-12; use shielded cables for analog signals to minimize EMI interference and maintain control precision.

2. Parameter Configuration

   Avoid modifying critical control parameters (e.g., vector control gains) without proper training; incorrect settings may cause motor instability or damage.

3. Maintenance & Firmware Updates

   Perform regular firmware updates via Drive composer software to enhance the ABB BCU-12’s performance and security; store spare modules in a dry, temperature-controlled environment to prevent component degradation.

4. Compatibility Check

   Verify that optional communication modules are compatible with the ABB BCU-12 before installation; using non-approved modules may void the product warranty.
