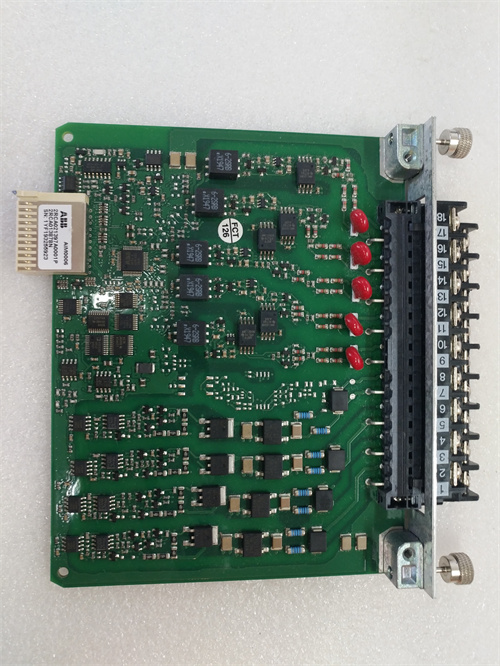

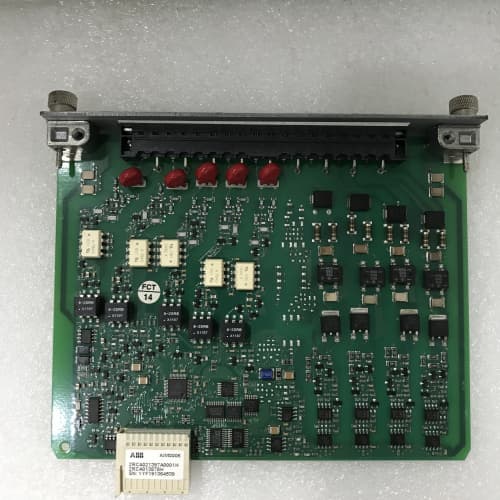

ABB AIM0006 2RCA021397A0001F

Description

Product Description

The ABB AIM0006 2RCA021397A0001F is a specialized analog input/output module designed for integration within ABB’s distributed control and automation systems, likely pertaining to the Freelance or AC 700F/900F controller family. This module functions as a critical interface for acquiring precise analog signals from field sensors (e.g., 4-20 mA transmitters for pressure, temperature, flow) and generating analog command signals to final control elements (e.g., valve positioners, variable speed drives). The ABB AIM0006 2RCA021397A0001F is engineered to provide high accuracy, electrical isolation, and reliable signal conversion in industrial environments. It connects to the controller’s rack and communicates via the system backplane, becoming a configurable point for process monitoring and closed-loop control. The specific functionality and I/O channel configuration of the ABB AIM0006 2RCA021397A0001F are defined by its dual part numbers. Integrating this module, as per the ABB AIM0006 2RCA021397A0001F (https://www.example-link-abb-product.com) specifications, expands the system’s capability to handle continuous process variables accurately. The robust design ensures stable operation in process and manufacturing applications.

Product Parameters / Technical Specifications

• Manufacturer: ABB
• Product Family: Likely Freelance or AC 700F/900F System I/O Modules
• Module Type: Analog Input/Output Module
• Model / Designation: AIM0006
• Order Code / Article Number: 2RCA021397A0001F
• I/O Configuration: Typically provides a combination of analog inputs and outputs. Common configurations for such a module include:
  • 4 Analog Inputs (AI) and 2 Analog Outputs (AO)
  • 8 Analog Inputs (AI)
  • The specific mix is defined by the variant code.
• Signal Types:
  • Analog Inputs: Configurable for 0/4-20 mA, 0-10V, thermocouple (T/C), or RTD.
  • Analog Outputs: Typically 4-20 mA.
• Resolution: High resolution (e.g., 16-bit) for accurate measurement and control.
• Accuracy: High accuracy, typically ±0.1% of full scale or better.
• Isolation: Channel-to-channel and channel-to-system bus isolation to prevent ground loops and ensure signal integrity.
• Diagnostics: Includes diagnostics for open wire, short circuit, and out-of-range signals.
• Update Rate: Suitable for standard process control loops.
• Power Supply: Powered from the controller’s backplane.
• Configuration: Configured via the controller’s dedicated engineering software (e.g., Freelance Engineering Tool).

Advantages and Key Features

• High Precision for Process Control: The ABB AIM0006 2RCA021397A0001F is designed for accurate measurement and output, which is critical for maintaining product quality, safety, and efficient process operation.
• Versatile Signal Handling: Ability to handle various analog signal types (current, voltage, temperature) provides flexibility for connecting a wide range of field instruments.
• Robust Electrical Isolation: Superior isolation protects sensitive controller electronics from noise, transients, and faults on the field wiring side.
• Seamless System Integration: As a genuine ABB module, it guarantees hardware compatibility and is fully supported within the corresponding ABB engineering environment.
• Clear Identification: The specific dual part numbers allow for accurate procurement and replacement, ensuring the correct I/O mix and functionality.

Application Cases in Various Fields

• Chemical Processing: Monitoring reactor temperature (via RTD) and pressure (4-20mA) while controlling a cooling water valve position (4-20mA output).
• Water & Wastewater Treatment: Acquiring signals from pH, conductivity, and flow transmitters and sending speed references to dosing pump drives.
• Food & Beverage Production: Measuring tank levels and product temperatures and controlling steam valve positions for cooking processes.
• Pharmaceutical Manufacturing: Providing precise analog I/O for environmental monitoring and control in cleanrooms or bioreactors.
• HVAC & Building Management: Monitoring air temperature and pressure and controlling damper actuators and chilled water valves.

Comparison with Competing Products

The ABB AIM0006 2RCA021397A0001F is a proprietary analog I/O module for specific ABB controller platforms. Its direct competitors are similar analog modules from other DCS/PLC manufacturers, such as Siemens (AI/AO modules for ET 200S/M), Emerson (DeltaV CHARM AI/AO cards), and Schneider Electric (analog modules for Modicon). Its key advantage is guaranteed compatibility and optimized performance within its native ABB system. Compared to using separate signal conditioners and isolated analog cards, this integrated module offers a more streamlined solution with unified engineering and diagnostics.

Selection Suggestions and Precautions

• Selection Advice: Select the ABB AIM0006 2RCA021397A0001F to add analog I/O capability to a compatible ABB Freelance or AC 700F/900F controller. The selection is driven by the required number and type of analog inputs and outputs. Both part numbers must be verified against the controller’s compatibility list. It is ideal for process applications requiring a mix of monitoring and control points.
• Precautions:
  1. I/O Configuration Verification: Confirm the exact I/O mix (e.g., 4AI/2AO) defined by the 2RCA021397A0001F variant matches your application needs. An incorrect variant will not have the required channels.
  2. Signal Type Configuration: In the engineering software, each channel must be correctly configured for its specific signal type (e.g., 4-20mA, RTD). Misconfiguration leads to erroneous readings or outputs.
  3. Wiring and Shielding: Use proper shielded, twisted-pair cables for all analog signals. Connect the shield at the cabinet ground point only (usually at the I/O base) to prevent ground loops.
  4. Calibration: For critical loops, consider verifying the calibration of the analog channels after installation, as module-to-module variations can occur.
  5. Genuine Parts: Source the module from authorized ABB channels. Non-genuine modules may have inferior components, leading to accuracy drift, poor isolation, and a shorter lifespan.
