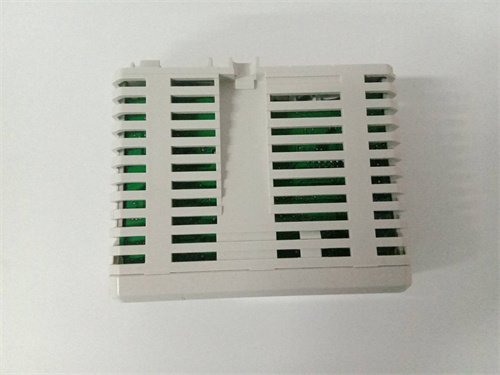

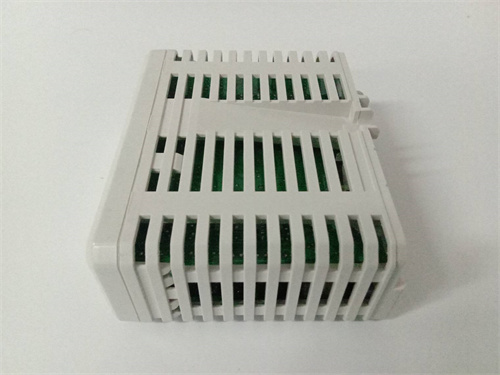

ABB AI815 3BSE052604R1

The ABB AI815 3BSE052604R1 is a high-performance analog input module designed for integration with ABB’s AC 800M and AC 800XA distributed control systems, delivering reliable signal acquisition for industrial processes. Engineered to convert analog signals from sensors and transmitters into digital data for PLC and DCS processing, the ABB AI815 3BSE052604R1 supports 8 channels of differential input, making it ideal for applications requiring multi-point data monitoring. With its robust design and compliance with international industrial standards, the ABB AI815 3BSE052604R1 ensures stable operation in harsh environments, including high-temperature, high-vibration, and high-electromagnetic-interference settings. This module is a core component for process automation, enabling seamless communication between field devices and control systems to optimize production efficiency.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

The ABB AI815 3BSE052604R1 is a high-performance analog input module designed for integration with ABB’s AC 800M and AC 800XA distributed control systems, delivering reliable signal acquisition for industrial processes. Engineered to convert analog signals from sensors and transmitters into digital data for PLC and DCS processing, the ABB AI815 3BSE052604R1 supports 8 channels of differential input, making it ideal for applications requiring multi-point data monitoring. With its robust design and compliance with international industrial standards, the ABB AI815 3BSE052604R1 ensures stable operation in harsh environments, including high-temperature, high-vibration, and high-electromagnetic-interference settings. This module is a core component for process automation, enabling seamless communication between field devices and control systems to optimize production efficiency.

Product Parameters

Parameter Category Specifications
Input Channels 8 differential analog inputs
Input Signal Range 4–20 mA, 0–20 mA, 0–10 V, ±5 V, ±10 V (configurable per channel)
Measurement Accuracy ±0.1% of full scale (at 25°C)
Resolution 16 bits
Isolation Channel-to-channel isolation: 500 V AC; Channel-to-system isolation: 1500 V AC
Operating Temperature -40°C to +70°C
Power Supply 24 V DC (18–32 V DC)
Communication Interface Profibus DP, Ethernet/IP (via parent controller)
Dimensions (W×H×D) 45 mm × 210 mm × 120 mm
Certification CE, UL, ATEX, IECEx

Advantages and Features

  1. High Precision & Stability

    The ABB AI815 3BSE052604R1 offers 16-bit resolution and ±0.1% measurement accuracy, ensuring precise data acquisition for critical processes such as pressure, temperature, and flow rate monitoring. Its advanced signal filtering technology minimizes noise interference, maintaining data integrity even in complex industrial environments.

  2. Flexible Configuration

    Each input channel of the ABB AI815 3BSE052604R1 can be independently configured for different signal types, eliminating the need for additional modules and reducing system costs. The module supports hot swapping, allowing maintenance without shutting down the entire control system.

  3. Robust Industrial Design

    With wide operating temperature range and high isolation ratings, the ABB AI815 3BSE052604R1 is built to withstand extreme conditions in oil and gas, chemical, and power generation industries. Its corrosion-resistant housing enhances durability and extends service life.

  4. Seamless System Integration

    Optimized for ABB’s AC 800M/800XA control systems, the module ensures fast data transmission and compatibility with third-party PLCs via standard industrial protocols, simplifying system design and expansion.

Application Cases in Application Fields

  1. Chemical Manufacturing

    In a large-scale petrochemical plant, the ABB AI815 3BSE052604R1 is used to monitor the temperature and pressure of reaction vessels. Its high accuracy and anti-interference capability prevent measurement errors, ensuring safe and stable operation of the production line and reducing the risk of accidents.

  2. Power Generation

    A thermal power plant deployed the ABB AI815 3BSE052604R1 to collect data from steam turbine vibration sensors and boiler water level transmitters. The module’s hot-swap function allows maintenance personnel to replace faulty channels without interrupting power generation, improving plant availability.

  3. Water Treatment

    Municipal water treatment facilities utilize the ABB AI815 3BSE052604R1 to monitor pH value, turbidity, and dissolved oxygen levels in water. The module’s multi-channel design reduces equipment footprint, while its reliable performance ensures compliance with water quality standards.

Comparisons with Competing Products

Feature ABB AI815 3BSE052604R1 Competitor A (Siemens SM 331) Competitor B (Allen-Bradley 1756-IF8)
Channel Isolation 500 V AC (channel-to-channel) 250 V AC 500 V AC
Operating Temperature -40°C to +70°C -25°C to +60°C -40°C to +70°C
Hot Swap Support Yes No Yes
Cost-Effectiveness High (8 channels, low unit cost per channel) Medium (6 channels) Low (high upfront cost)
The ABB AI815 3BSE052604R1 outperforms Competitor A in isolation capability and operating temperature range, making it more suitable for harsh environments. Compared to Competitor B, it offers a more cost-effective solution for projects requiring high channel density, without compromising on performance.

Selection Suggestions and Precautions

Selection Suggestions

  1. Choose the ABB AI815 3BSE052604R1 for projects requiring 8-channel analog input with multi-signal type support, especially in industries with harsh operating conditions.
  2. Verify compatibility with your existing control system (preferred for ABB AC 800M/800XA; confirm protocol support for third-party systems).
  3. Calculate the required number of modules based on field device quantity; leverage the module’s channel independence to reduce redundant equipment.

Precautions

  1. Ensure proper grounding during installation to avoid electromagnetic interference affecting measurement accuracy.
  2. Do not exceed the specified power supply voltage range (18–32 V DC) to prevent module damage.
  3. When performing hot swapping, follow ABB’s official operation guidelines to avoid short circuits or system errors.
  4. Regularly calibrate the module (recommended every 6–12 months) to maintain measurement precision over long-term use.
