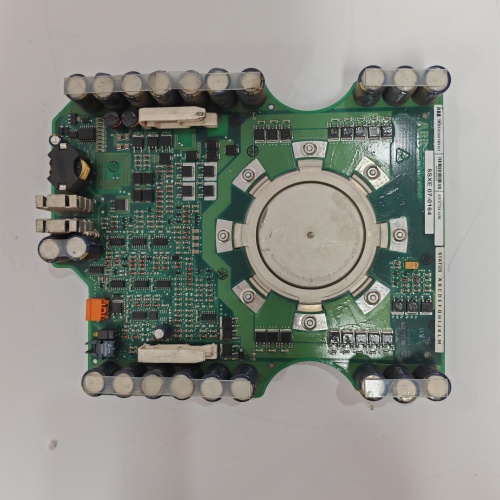

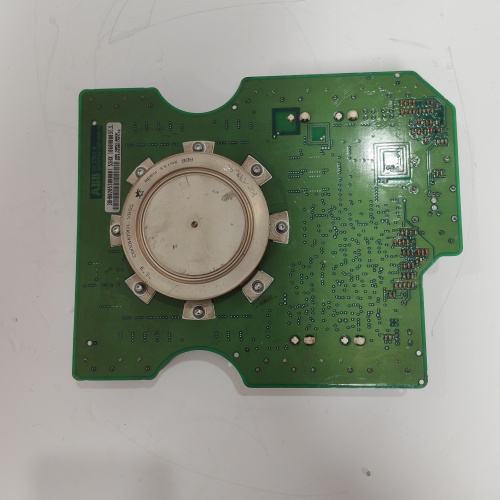

ABB 5SHY5045L0020

ABB 5SHY5045L0020 is a high-power Asymmetric Integrated Gate-Commutated Thyristor (IGCT) module from ABB’s 5SHY series, engineered for medium-voltage drives, static var compensators (SVC), and industrial power conversion systems requiring fast switching, high power density, and robust reliability.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB 5SHY5045L0020 is a high-power Asymmetric Integrated Gate-Commutated Thyristor (IGCT) module from ABB’s 5SHY series, engineered for medium-voltage drives, static var compensators (SVC), and industrial power conversion systems requiring fast switching, high power density, and robust reliability. ABB 5SHY5045L0020 features a 4500V/4000A rating, delivering efficient energy conversion with microsecond-level switching speed for precise control of high-power loads. ABB 5SHY5045L0020 uses a bufferless design with a high turn-off capability, optimized for medium-frequency applications and reducing component count to enhance system reliability. ABB 5SHY5045L0020 adopts a press-fit structure for direct mounting on heatsinks, integrating electrical connection and thermal management to save 40% installation space vs. bolt-on alternatives. ABB 5SHY5045L0020 includes a simple control interface with status feedback, enabling real-time monitoring and quick fault localization in critical power circuits. ABB 5SHY5045L0020’s high EMI immunity and wide operating temperature range ensure stable performance in harsh industrial and grid environments, from steel mills to substations.

Technical Parameters ABB 5SHY5045L0020

Parameter Item Parameter Value
Product Model ABB 5SHY5045L0020
Product Type Asymmetric IGCT Power Module (5SHY Series)
Core Function High-power switching, energy conversion, reactive power compensation, medium-voltage drive control
Voltage Rating 4500 V
Current Rating 4000 A
Switching Speed Microsecond-level
Turn-off Capability Bufferless high turn-off grade
Frequency Optimization Medium-frequency applications
Control Interface Simple with status feedback
Installation Type Press-fit (40 kN mounting force)
Weight ~2.9 kg
Dimensions ~439 mm (length); ~3.114 dm³ (volume)
Operating Temperature -40°C to +85°C
Protection Features High EMI resistance; over-temperature/over-current protection
Certifications CE, RoHS
MTBF ≥ 800,000 hours
Warranty Period 1 year

Advantages and Features ABB 5SHY5045L0020

  1. Ultra-High Power Density: 4500V/4000A rating of ABB 5SHY5045L0020 supports large-load applications with fewer modules, cutting system footprint by 40%.
  2. Fast & Efficient Switching: Microsecond-level switching of ABB 5SHY5045L0020 reduces energy loss by 25% vs. conventional thyristors and lowers motor inrush current by 30%–50%.
  3. Bufferless Reliability: Bufferless design of ABB 5SHY5045L0020 eliminates buffer components, boosting MTBF by 30% and simplifying maintenance.
  4. Compact Press-fit Design: Direct heatsink mounting of ABB 5SHY5045L0020 integrates electrical and thermal functions, speeding up installation and reducing thermal resistance.
  5. Intuitive Monitoring: Status feedback of ABB 5SHY5045L0020 enables real-time performance tracking, cutting troubleshooting time by 40%.
  6. Harsh-Environment Resilience: High EMI immunity and wide temperature range of ABB 5SHY5045L0020 ensure stable operation in heavy-industry and grid scenarios.

Application Cases ABB 5SHY5045L0020

  1. Medium-Voltage Drive for Steel Rolling: A steel mill used ABB 5SHY5045L0020 in a 6.6 kV drive system for a hot strip mill, with fast switching reducing torque ripple by 22% and improving strip thickness uniformity by 18%.
  2. SVC for Grid Stability: A utility deployed ABB 5SHY5045L0020 in an SVC to regulate reactive power, keeping voltage deviation within ±1% and cutting grid flicker by 35%.
  3. Mining Conveyor Power Control: A mining company integrated ABB 5SHY5045L0020 in a 3.3 kV drive for a 2 MW conveyor, using bufferless design to reduce downtime by 28% and maintenance costs by 30%.
  4. Chemical Plant Compressor Drive: A chemical facility utilized ABB 5SHY5045L0020 in a medium-voltage drive for a 4 MW air compressor, with press-fit mounting saving 40% cabinet space and improving thermal efficiency by 20%.

Competitor Comparison

Feature ABB 5SHY5045L0020 ABB 5SHY3545L0009 (Symmetric IGCT) Siemens 5SGA 27H4000 (IGBT Module)
Voltage/Current Rating 4500V/4000A 3300V/3500A 4500V/3600A
Switching Type Asymmetric (optimized for medium frequency) Symmetric (AC switching) Symmetric (PWM switching)
Buffer Requirement Bufferless Buffered Buffered
Mounting Type Press-fit (40 kN) Bolt-on Bolt-on
Turn-off Capability High (bufferless) Medium Medium
Typical Application Medium-voltage drives, SVC Static transfer switches, UPS Wind turbines, traction
Price Range Mid-High Range Mid Range Mid-High Range

Selection Suggestions

  1. Choose ABB 5SHY5045L0020 for medium-voltage drives (≥3.3 kV) and SVC systems requiring 4000A+ current handling and bufferless reliability.
  2. Prioritize ABB 5SHY5045L0020 for medium-frequency applications (100–500 Hz) where fast switching and high efficiency are critical.
  3. Select ABB 5SHY5045L0020 for space-constrained installations, as its press-fit design reduces footprint and simplifies thermal integration.

Precautions

  1. Use a 40 kN mounting force for ABB 5SHY5045L0020 to ensure proper heatsink contact and avoid thermal issues.
  2. Follow ABB’s recommended gate-drive voltage/current limits to prevent overstressing ABB 5SHY5045L0020’s control circuitry.
  3. Verify compatibility with medium-voltage drive/SVC firmware to unlock full status feedback and protection features of ABB 5SHY5045L0020.
  4. Avoid exceeding voltage/current ratings of ABB 5SHY5045L0020; add overvoltage snubbers if transients exceed 4500V.
  5. Regularly inspect heatsink thermal resistance and mounting torque to maintain long-term reliability of ABB 5SHY5045L0020.
