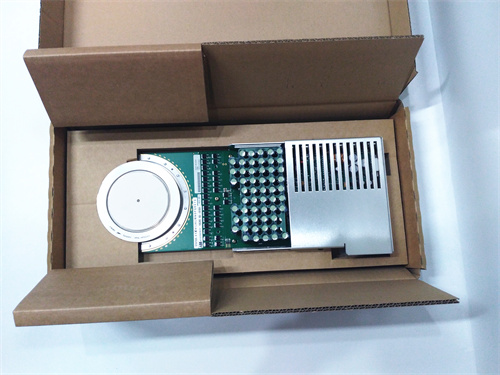

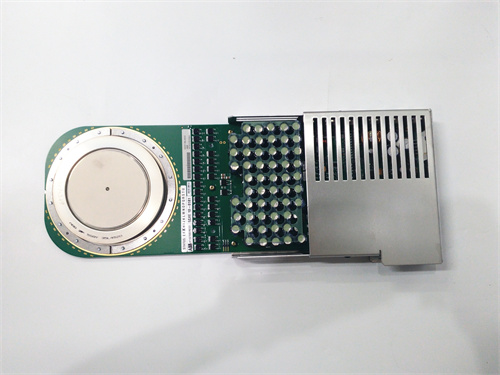

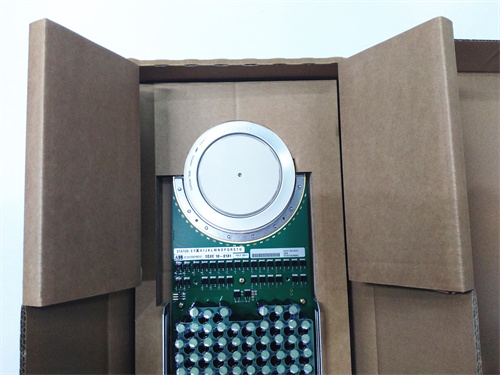

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101

Description

Technical Parameters ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101

Advantages and Features ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101

1. High-Efficiency Power Conversion: ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 has an on-state voltage of 1.8V and 320Hz switching frequency, improving power conversion efficiency by 4% and reducing energy loss in high-load operations.
2. Superior Safety & Stability: 28kV isolation voltage resists high-voltage breakdown, while the -50℃ to 160℃ operating range adapts to extreme industrial environments, enhancing system reliability.
3. High Power Density: 4500V/4000A rating delivers exceptional power density, saving installation space and supporting compact system designs.
4. Seamless System Integration: Compatible with Modbus, Profibus, and EtherCAT protocols, easily integrating into ABB PLC/DCS and existing industrial control networks.
5. Intelligent Monitoring & Maintenance: Built-in state monitoring enables real-time parameter tracking, while remote diagnostic support shortens downtime and simplifies maintenance.

Application Cases

1. Steel Mill Heavy-Duty Drives: A steel plant integrated ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 into its hot strip mill drive system. Its high current capacity and low conduction loss stabilized motor operation, increasing production efficiency by 8% and reducing energy consumption by 12%.
2. HVDC Transmission Systems: A power utility used ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 in HVDC converter stations. The module’s 28kV isolation voltage and high reliability ensured stable long-distance power transmission, cutting grid fluctuation-related outages by 30%.
3. Large-Scale Energy Storage: A GW-level electrochemical storage plant deployed ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 in its converter systems. Its fast switching speed and high efficiency improved charge-discharge cycle life by 15% and enhanced grid peak-shaving responsiveness.

Competitor Comparison

Selection Suggestions

1. Choose ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 for high-voltage (4500V) and high-current (4000A) applications like heavy industrial drives or HVDC transmission.
2. Opt for ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 in extreme temperature environments (-50℃ to 160℃) such as outdoor energy storage or marine power systems.
3. Select ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 for energy-efficient projects, leveraging its low conduction loss to reduce long-term operational costs.
4. Use ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 in Modbus/Profibus-based industrial networks for seamless integration with existing PLC/DCS systems.

Precautions

1. Ensure the operating voltage and current do not exceed 4500V DC and 4000A to prevent damage to ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101.
2. Use shielded cables for communication wiring to enhance anti-interference performance in high-voltage industrial environments.
3. Follow DIN rail mounting guidelines and ensure proper heat dissipation to maintain temperature within the -50℃ to 160℃ range.
4. Regularly monitor on-state voltage and off-state current to detect early signs of component degradation.
5. Conduct periodic insulation tests to verify the 28kV isolation voltage and ensure operational safety.
