ABB 5SHY35L4520 5SXE10-0181 | IGCT Module, 4500V, 350A

Description

Product Introduction

That mining operation in Chile—the one with the 5MW SAG mill driven by an ACS6000—had a drive fault last year. The mill stopped, and the maintenance crew couldn’t reset it. The fault log pointed to a short circuit in the inverter section. They opened the cabinet, and the smell was unmistakable—burnt silicon. One of the 5SHY35L4520 IGCTs had failed shorted. The module was blackened, and the gate drive board was toast. One 5,000 device, one 50,000 drive repair, one week of lost production.

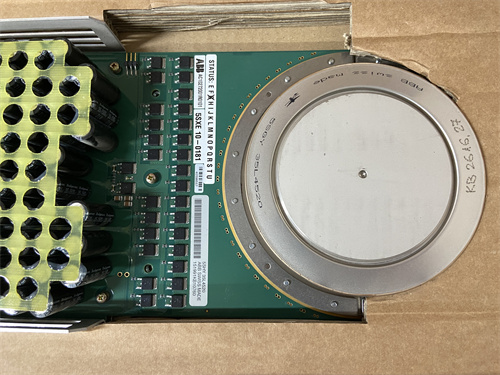

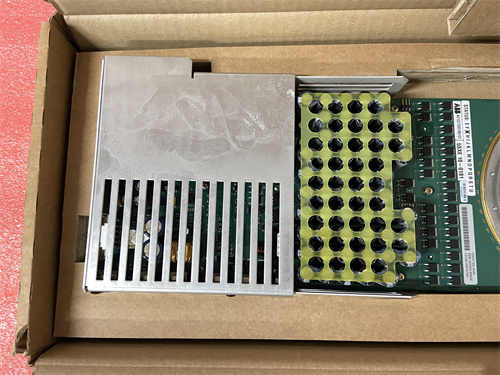

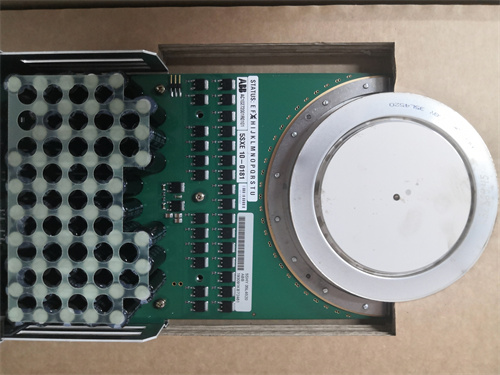

The ABB 5SHY35L4520 is an Integrated Gate Commutated Thyristor (IGCT) used in ABB’s ACS6000 and ACS5000 medium voltage drives. It’s a press-pack device—no wires, just huge copper contacts that clamp together under pressure. The “35L” indicates 4500V blocking voltage and 350A average current. The integrated gate unit (5SXE10-0181) is built into the package, so it’s a complete switching device: give it 24V and a fiber optic signal, and it switches megawatts. In a 6kV drive, you’ll find 18 or 24 of these in a three-phase inverter. They’re the heart of the drive—if one fails, the drive stops.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

An IGCT requires specialized test equipment. Here’s our process.

1. Incoming Verification
   • Match all numbers: 5SHY35L4520, 5SXE10-0181, AC10272001R0101. (The AC number is the ABB ordering code.)
   • Visual inspection: Check the ceramic housing for cracks. Look at the pressure contacts—should be clean, no pitting.
   • Inspect the gate drive fiber optic ports—no damage.
2. Electrical Test (Off-State)
   • Apply 2500V DC between anode and cathode with gate open.
   • Leakage current must be <10 mA.
   • Apply 4500V (test limit) for 1 second—no breakdown.
3. Gate Drive Test
   • Apply 24V DC to the gate drive power pins.
   • Send a fiber optic turn-on pulse.
   • Verify the gate drive responds (LED flash, internal check).
   • Measure gate voltage waveform—should be clean, no ringing.
4. Conduction Test (Low Current)
   • Apply a low voltage (10V) through a current-limiting resistor.
   • Send a turn-on pulse.
   • Verify the device conducts—voltage drop <3V at 10A.
5. Clamping Force Simulation
   • We don’t apply full clamping force (that requires a press). But we check the device for any signs of previous clamping damage—scratches on the contact surfaces.
6. Thermal Imaging (Sample)
   • For a sample of devices, we conduct a high-current pulse and image with a thermal camera.
   • Even heating indicates good internal connections.
7. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static foam (the contacts are sensitive).
   • Box in original ABB packaging if available, otherwise custom foam-lined box.
   • Test report included—leakage current, gate drive check.

Field Replacement Pitfalls

I’ve swapped these in mines, refineries, and test labs. Here’s where people go wrong.

❗Clamping Force
The IGCT must be clamped with the exact force specified (30–40 kN). Too little, and the contact resistance causes overheating. Too much, and you crack the silicon. Use a torque wrench and follow the drive manual exactly.

Gate Drive Fiber
The fiber optic cable must be clean and properly seated. A dirty connector can cause intermittent firing. Clean with alcohol and inspect with a scope.

Busbar Alignment
The press-pack sits between two busbars. If the busbars aren’t perfectly parallel, the pressure won’t be even, and the device may fail. Check alignment before clamping.

Snubber Circuit
The drive’s snubber circuit protects the IGCT from voltage spikes. If you’ve had a failure, check the snubber components—they may be damaged too.

Gate Drive Power
The gate drive needs clean 24V DC. If the power supply is noisy, the gate drive may misfire. Check the power supply before installing a new device.

Nail these five, and your IGCT will last for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this IGCT was manufactured by ABB, packed in its original box, and never installed. The silicon has zero hours, the gate drive is unused, and the pressure contacts are pristine.

Refurbished risk in plain terms
IGCTs are not refurbished—they’re either new or used. A used IGCT has unknown history. It may have been stressed by surges, overheated, or clamped incorrectly. It might test okay at low voltage but fail under full load.

Real cost of a refurbished failure
If a used IGCT fails in service, it can take out the entire drive section. The cost of repair, plus downtime, dwarfs the savings from buying used.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Leakage current test results.
• Gate drive check.
• 12‑month warranty.

Pricing context
We’re priced competitively with other new-old-stock suppliers. A used IGCT might be 50% cheaper, but the risk isn’t worth it.

Performance Benchmarks & Test Results

Test conditions: 25 °C ambient, leakage test at 2500V.

We keep the full test data—ask, and we’ll email the PDF.
