ABB 5SHY35L4520

Description

Product Description

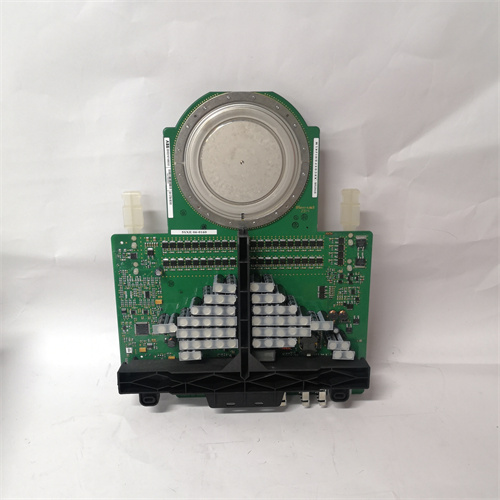

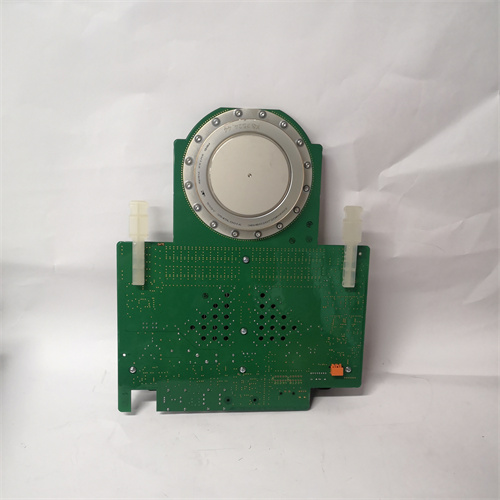

The ABB 5SHY35L4520 is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor device, a key component within ABB’s renowned ACS 6000 medium-voltage drive family and similar power conversion systems. This device is not a traditional PLC spare part, but a critical power electronic component essential for the reliable and efficient operation of very large variable frequency drives (VFDs) that control high-voltage motors. featuring a press-pack design for efficient cooling and short-circuit ruggedness. The performance and reliability of the ABB 5SHY35L4520 are fundamental to the uptime of major drive systems in heavy industries. For maintenance engineers and system integrators, this IGCT represents a critical spare part whose replacement requires specialized high-voltage handling procedures and technical expertise.

Product Parameters

• Product Type: Integrated Gate-Commutated Thyristor (IGCT).
• Device Technology: Asymmetric, reverse conducting IGCT in a press-pack housing.
• Voltage Rating: Typically rated for a blocking voltage of 4500V or 5500V (specific to the 5SHY35L4520 variant).
• Current Rating: Capable of conducting very high average and surge currents, often in the range of several thousand Amperes.
• Package: Press-pack design, which allows for double-sided cooling when clamped between heatsinks, providing excellent thermal performance.
• Gate Unit Compatibility: Requires a specific, matched Gate Unit (GU) for triggering and protection. The gate unit is often a separate but mandatory component.
• Function: Used as the main switching element in the inverter or converter section of a multi-level, medium-voltage drive topology.
• Application: Specifically designed for use in ABB ACS 6000, ACS 6000c, and other high-power converter cabinets.

Advantages and Features

• High Power Density: Enables the construction of very compact medium-voltage drives for their power rating, saving valuable floor space.
• Robustness and Short-Circuit Withstand: The IGCT technology and press-pack design offer inherent robustness and can typically withstand short-circuit currents without destruction, enhancing system reliability.
• Low Switching Losses: Compared to older technologies like GTOs, IGCTs like the ABB 5SHY35L4520 have significantly lower switching losses, leading to higher drive efficiency and reduced cooling requirements.
• High Reliability: Designed for continuous operation in demanding industrial environments, contributing to the long mean-time-between-failure (MTBF) of the overall drive system.
• Direct Series Connection: The characteristics of the IGCT allow for reliable series connection of devices to achieve the required voltage levels for medium-voltage applications (e.g., 3.3 kV, 4.16 kV, 6.6 kV, 10 kV).

Application Cases in Application Fields

• Mining Hoist Drive: Used in the ACS 6000 drive controlling the massive hoist motor that lifts ore from deep underground, where precise speed control and extreme reliability are paramount for safety and production.
• Oil & Gas Pipeline Compression: Serving as the core switching device in the compressor drive for a mainline natural gas pipeline station, ensuring efficient and continuous gas flow over long distances.
• Metal Rolling Mill Main Drive: Found in the high-power drive controlling the main rolls of a hot strip mill, requiring fast dynamic response and handling high torque loads.
• Large Pump in Water Supply: Used in a variable speed drive for a very large multi-megawatt pump in a municipal water supply or irrigation system, optimizing energy consumption.

Comparisons with Competing Products

Competing technologies for medium-voltage high-power drives include Insulated-Gate Bipolar Transistors (IGBTs) and older Gate Turn-Off thyristors (GTOs). Compared to IGBT modules, the ABB 5SHY35L4520 IGCT typically offers advantages in very high power applications (above 10+ MW) in terms of lower conduction losses and superior short-circuit ruggedness. Compared to GTOs, it offers much higher switching frequency, lower losses, and simpler gate drive requirements. The primary competition is often between different drive manufacturer’s preferred semiconductor technology (e.g., Siemens with IGBTs, ABB with IGCTs). The key advantage of the ABB 5SHY35L4520 is its optimization within ABB’s proven ACS 6000 system architecture, providing a reliable, high-performance solution validated for the most demanding applications.

Selection Suggestions and Precautions

1. Exact Replacement Verification: This part is a critical, drive-specific component. You must verify the exact drive type (e.g., ACS 6000, specific cabinet serial number) and the original part number from the drive’s documentation or the failed component itself. Using an incorrect semiconductor can cause catastrophic drive failure.
2. Professional Handling Required: Replacement of an IGCT like the ABB 5SHY35L4520 is a high-risk task that must be performed by qualified high-voltage technicians. It involves working on lethal voltages and requires precise torque settings for clamping, proper application of thermal grease, and handling of the sensitive gate connection.
3. Gate Unit and Spare Kit: Always replace the associated Gate Unit (GU) when replacing the IGCT. Procure the complete recommended spare part kit from ABB, which includes the IGCT, GU, thermal interface material, and any necessary hardware.
4. Cause of Failure Analysis: Simply replacing a failed ABB 5SHY35L4520 without investigating the root cause (e.g., cooling system failure, snubber circuit issue, control board fault) will likely lead to a rapid repeat failure. A thorough system diagnostic is mandatory.
