Description

ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127: IGCT Power Semiconductor for ACS6000 Drive

Product Description

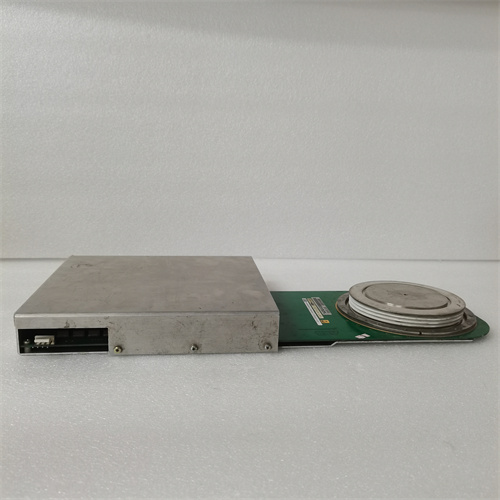

The ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127 is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor, a critical component within the power stacks of ABB’s ACS 6000 medium-voltage variable frequency drive (VFD). This part number cluster refers to the complete press-pack IGCT assembly, which includes the semiconductor die, its integrated gate unit, and associated heatsink/clamping hardware. The ABB 5SHY35L4503 device functions as a high-speed, robust electronic switch, controlling the flow of electrical power to the motor with high efficiency. Its reliability is paramount, as a failure can lead to a drive shutdown and significant process interruption. The complexity and high power rating of the ABB 5SHY35L4503 assembly make it a key spare part for maintaining large drive systems in heavy industries.

Product Parameters

• Product Type: IGCT (Integrated Gate-Commutated Thyristor) Power Semiconductor Assembly

• Manufacturer: ABB

• Part Numbers: 5SHY35L4503 (IGCT type), 3BHB004693R0001, 3BHB004692R0002, 5SXE01-0127 (related gate unit or assembly components).

• Compatible System: ACS 6000 Medium Voltage Drive (and potentially other high-power ABB converters).

• Voltage Rating: Typically 4500V or higher.

• Current Rating: High current capability (e.g., several kA).

• Switching Frequency: Designed for the specific switching requirements of multi-level MV drive topologies.

• Package: Press-pack design for optimal thermal and mechanical interface with the drive’s heatsink and clamping system.

• Assembly: Includes the IGCT, its matched gate driver board, and often associated snubber components.

Advantages and Features

The ABB 5SHY35L4503 IGCT assembly offers superior performance for medium-voltage applications. Its key advantage is the integration of the gate drive circuitry directly with the thyristor, which provides very low-inductance commutation, enabling faster and more efficient switching with reduced losses compared to traditional GTOs. This results in higher drive efficiency and power density. The press-pack design allows for double-sided cooling, greatly improving thermal management and reliability. The robust construction of the ABB 5SHY35L4503 is designed to withstand the high electrical and thermal stresses encountered in demanding industrial drive service. ABB’s deep vertical integration in power semiconductors ensures a high level of quality and performance matching.

Application Cases in Various Fields

This component is used exclusively in very high-power drive applications. In Mining, the ABB 5SHY35L4503 is part of drives controlling grinding mills, conveyors, and shovel hoists. Within Metals Production, it powers drives for rolling mills, mine hoists, and blast furnace blowers. For Oil & Gas, it is used in drives for pipeline compressors and large pumps. It is also critical in Marine Propulsion for cruise ships and LNG carriers, and in Power Generation for large boiler feed pumps and induced draft fans.

Comparisons with Competing Products

The ABB 5SHY35L4503 IGCT competes with other high-power semiconductor technologies like IEGTs (from Toshiba/Mitsubishi) and HV-IGBTs (from Infineon, Dynex) in the medium-voltage drive space. Compared to IGBT-based solutions, the IGCT (as implemented in the ABB 5SHY35L4503) often offers lower conduction losses at very high current levels, making it advantageous for the highest power drives. Compared to older thyristor technologies, it offers vastly superior switching performance. Its primary competitive context is within ABB’s own drive platforms; it is the designated, optimized semiconductor for the ACS 6000, ensuring full compatibility with the drive’s control and protection algorithms.

Selection Suggestions and Precautions

1. Exact Drive Model Match: This part is specific to the ACS 6000 and its inverter stack design. You must verify the exact drive model, inverter cabinet number, and semiconductor position (e.g., Inverter Phase A, Upper Arm) from the drive’s documentation to order the correct assembly.

2. High-Voltage Hazard: Replacement involves working inside a medium-voltage drive cabinet. This must be performed only by qualified high-voltage technicians following strict lockout/tagout procedures. The DC bus capacitors must be fully discharged and verified safe before any work begins.

3. Replacement in Sets: In many drive designs, power semiconductors like the ABB 5SHY35L4503 are replaced in matched sets (e.g., all devices in one phase or one arm) to ensure balanced performance. Consult the drive’s maintenance manual for specific replacement guidelines.

4. Thermal Interface Management: Proper application of thermal compound (grease) and correct clamping torque are absolutely critical for the ABB 5SHY35L4503 to transfer heat to the heatsink effectively. Incorrect installation will lead to immediate overheating and failure.

5. Professional Service Required: Due to the complexity, cost, and safety criticality, replacement of an ABB 5SHY35L4503 IGCT assembly is not a general maintenance task. It should be planned and executed by ABB Field Service or a highly trained and authorized service partner with the proper tools and procedures.
