ABB 5SHY3545L0016 3BHB020720R0002 3BHE039203R0101 GVC736CE101

Description

Product Description

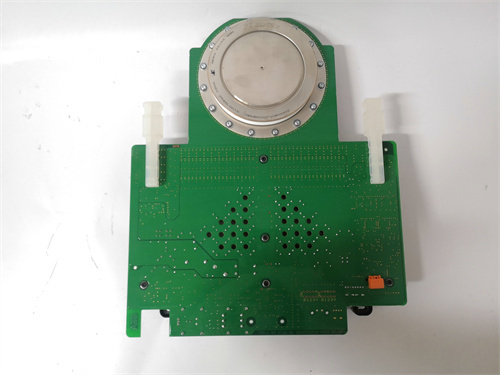

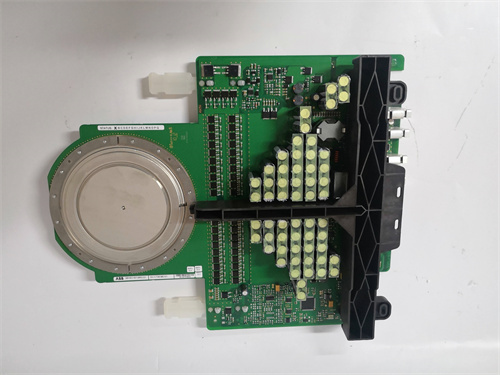

The ABB 5SHY3545L0016 is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor device designed as a critical switching component for ABB’s medium-voltage drive systems and power electronics applications. This press-pack device is engineered for the most demanding industrial applications, enabling efficient and reliable control of high-power electric motors in applications such as large pumps, compressors, fans, and conveyors. The core function of the ABB 5SHY3545L0016 is to act as a high-speed, high-current switch in the power converter section of the drive, converting AC power to DC and back to AC at variable frequencies and voltages to control motor speed and torque. The associated part numbers 3BHB020720R0002 and 3BHE039203R0101 are ABB’s internal ordering codes for related components, gate drivers, or documentation, while GVC736CE101 may represent a specific control board or interface module used with this IGCT. The IGCT technology offers lower conduction losses compared to IGBTs in high-current applications, making the ABB 5SHY3545L0016 ideal for megawatt-scale applications. Its press-pack construction provides fail-short mode operation and double-sided cooling capability.

Product Parameters

• Model Number: ABB 5SHY3545L0016 (with 3BHB020720R0002, 3BHE039203R0101, GVC736CE101)
• Device Type: Integrated Gate-Commutated Thyristor (IGCT) / Power Semiconductor
• Series: ABB Medium-Voltage Drives (ACS 1000, ACS 6000, ACS 5000)
• Voltage Rating: Typically 4500V – 6500V (specific rating depends on variant)
• Current Rating: High current capability, typically in the range of hundreds to thousands of amperes
• Switching Frequency: Optimized for medium-voltage drive applications
• Package: Press-pack (disc-type) construction for high reliability and double-sided cooling
• Associated Components: Gate driver boards, control interfaces as indicated by part numbers
• Application: Power switching in three-level or multi-level inverter topologies
• Cooling: Liquid cooling (typically deionized water) or forced air in high-power applications
• Protection: Integrated protection features via gate driver monitoring
• Mounting: Stack assembly with clamping mechanism for press-pack devices
• Certification: CE, UL, CSA (component recognition)

Advantages and Features

The primary advantage of the ABB 5SHY3545L0016 lies in its exceptional power handling capability combined with low switching and conduction losses. Using the ABB 5SHY3545L0016 allows drive manufacturers to achieve high efficiency in megawatt-scale applications, reducing energy costs and cooling requirements. The press-pack construction of the ABB 5SHY3545L0016 provides fail-short mode operation, meaning that if the device fails, it fails as a short circuit rather than an open circuit, allowing the drive to continue operating temporarily or to blow fuses in a controlled manner. The associated gate driver components ensure proper switching and provide intelligent monitoring and protection. The robust construction and extensive testing ensure long-term reliability of the ABB 5SHY3545L0016 in continuous industrial operation. As original ABB components, these devices guarantee proper compatibility with ABB’s medium-voltage drive platforms.

Application Cases in Application Fields

The ABB 5SHY3545L0016 finds application in the most demanding high-power industrial applications requiring precise motor control.

• Mining (Grinding Mills): In a large copper mine, ACS 6000 drives using ABB 5SHY3545L0016 IGCTs power massive semi-autogenous grinding (SAG) mills, controlling mill speed and torque to optimize ore processing while protecting mechanical components from shock loads.
• Oil and Gas (Pipeline Compressors): On a major gas pipeline, centrifugal compressors driven by ACS 6000 systems equipped with ABB 5SHY3545L0016 devices maintain optimal pipeline pressure.
• Marine Propulsion (Icebreakers): In icebreaking vessels, propulsion drives using these IGCTs provide the massive torque needed to break through thick ice while maintaining precise control for maneuverability.
• Metals (Rolling Mills): In a steel hot strip mill, main drive motors are controlled by medium-voltage drives incorporating ABB 5SHY3545L0016 devices.
• Test Stands (Dynamometers): In automotive and aerospace test facilities, drives using these IGCTs control large dynamometers.

Comparison with Competing Products

When compared to competing high-power semiconductor technologies such as IGBT modules from Infineon or Mitsubishi, the ABB 5SHY3545L0016 IGCT offers distinct advantages in specific application areas. While IGBT modules excel in lower-power applications and offer simpler gate drive requirements, the IGCT technology provides lower conduction losses and higher surge current capability in multi-megawatt applications. Compared to GTO (Gate Turn-Off) thyristors, which were the previous generation technology, the ABB 5SHY3545L0016 offers simpler gate drive requirements and higher switching frequencies. For users invested in ABB’s medium-voltage drive platforms, using genuine ABB 5SHY3545L0016 devices ensures proper compatibility with ABB’s gate driver boards and control software.

Selection Suggestions and Precautions

When selecting the ABB 5SHY3545L0016 for your application, first verify the exact voltage and current ratings required for your specific drive model and power level. Ensure that the associated gate driver boards and control modules (referenced by the additional part numbers) are the correct revisions for your ABB 5SHY3545L0016 devices, as mismatched gate drivers can lead to improper switching and device failure. When handling these press-pack devices, follow strict safety procedures as these components may be charged with stored energy and can cause serious injury if mishandled. Ensure proper clamping force is applied according to ABB specifications when installing the ABB 5SHY3545L0016 devices in the stack; incorrect clamping pressure can lead to thermal issues or mechanical damage. Verify that cooling systems (typically deionized water) are properly maintained with correct conductivity levels to prevent arcing and corrosion. When replacing devices, always replace complete sets of series-connected devices to ensure balanced voltage sharing. Work only with qualified personnel trained in high-power drive maintenance and follow all lockout/tagout procedures before accessing drive power sections. Finally, maintain spare ABB 5SHY3545L0016 devices for critical applications where extended downtime would cause significant production losses.
