ABB 5SHX2645L0004

Description

Introduction and Product Description

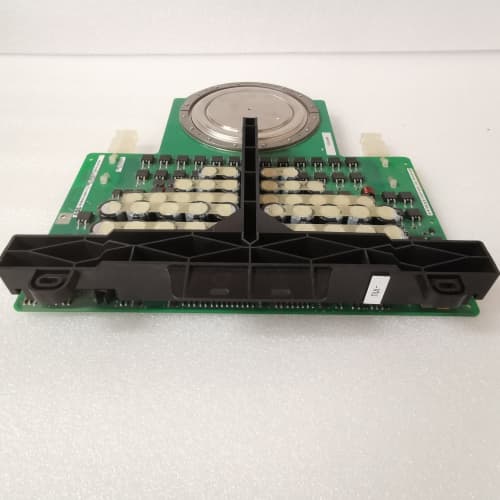

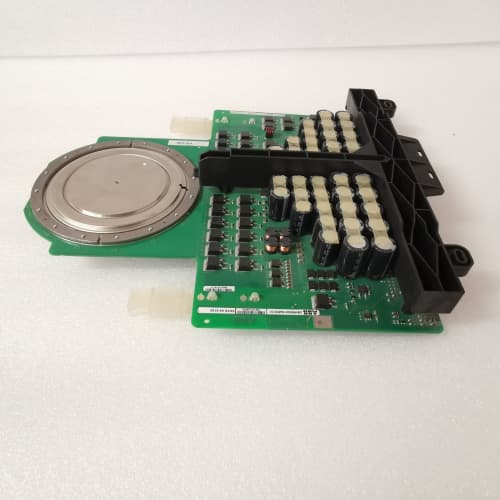

The ABB 5SHX2645L0004 is a high-performance IGBT (Insulated Gate Bipolar Transistor) press-pack module, a critical spare part in ABB’s vast power electronics portfolio. Designed for robustness and reliability in demanding high-power conversion applications, this module serves as the core switching component in medium-voltage drives and other power electronic systems. Unlike conventional modules, the press-pack design of the ABB 5SHX2645L0004 allows for double-sided cooling, significantly enhancing its power density and thermal performance. This specific model is engineered to meet the exacting standards of industrial and energy sectors, providing a dependable solution for controlling large electric motors and managing power flow.

Product Parameters

• Voltage Rating: Typically in the range of several kilovolts (exact Vces to be confirmed from datasheet).
• Current Rating: High continuous and pulsed current capacity, often hundreds to thousands of amperes.
• Module Type: Asymmetric, high-power IGBT in a press-pack (PPI) housing.
• Package: Press-fit, hermetic, and solder-free design for superior reliability and thermal cycling performance.
• Isolation: High isolation voltage to chassis.
• Cooling Method: Primarily designed for double-sided liquid or forced air cooling.

Advantages and Features

1. Superior Thermal Management: The press-pack technology of the ABB 5SHX2645L0004 enables efficient heat dissipation from both sides, reducing thermal resistance and allowing for higher output currents in a compact footprint.
2. High Reliability: The hermetic and solder-free interconnection within the module minimizes failure mechanisms related to thermal fatigue, making it ideal for mission-critical applications.
3. Short-Circuit Ruggedness: Designed to withstand harsh fault conditions, a key feature for protecting drive systems.
4. Ease of Assembly: The press-fit design simplifies installation and replacement in stacks, though it requires precise pressure application.
5. Proven Technology: As part of ABB’s established power semiconductor family, it offers long-term availability and support.

Application Cases in Key Fields

• Industrial Drives: Used as the main inverter switch in ABB’s ACS 1000, ACS 6000, and other medium-voltage variable frequency drives (VFDs) for controlling pumps, fans, compressors, and conveyors in mining, cement, and water treatment plants.
• Energy & Infrastructure: Employed in static VAR compensators (SVCs) and other Flexible AC Transmission System (FACTS) devices for grid stabilization and reactive power compensation.
• Marine & Offshore: Integral to medium-voltage propulsion drives and thruster systems for ships and drilling rigs.

Comparison with Competing Products
Compared to standard module technologies from competitors like Infineon or Mitsubishi, the ABB 5SHX2645L0004 press-pack design offers distinct advantages in thermal performance and reliability for very high-power applications. It often allows for a more compact system design than equivalent modules requiring single-sided cooling. However, its cost and the complexity of the associated clamping mechanism are generally higher than for lower-power industrial IGBT modules. It competes closely with specialized high-power devices from players like Hitachi Energy.

Selection Suggestions and Precautions

• Selection: This part is a direct replacement component. Ensure the ABB 5SHX2645L0004 model number matches exactly the failed module in your drive or system. Always verify the compatibility with the specific drive platform (e.g., ACS 6000).
• Precautions:
  1. Professional Handling Required: Press-pack IGBTs are extremely sensitive to mechanical stress. They must be installed with a precisely calibrated torque/force tool to ensure proper electrical contact and cooling without damaging the ceramic substrate.
  2. Static Sensitive: Use appropriate ESD protection during handling.
  3. Cooling Interface: Ensure the heat sink surfaces are perfectly flat, clean, and often require a specific thermal interface paste or pad as recommended by ABB.
  4. System Verification: After replacement, a comprehensive system check and recommissioning procedure, as outlined in the drive manual, are mandatory.
