ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01

Product Description

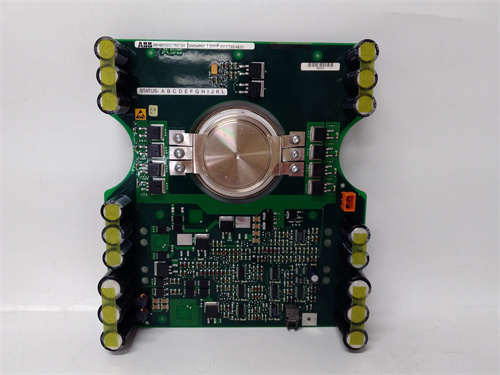

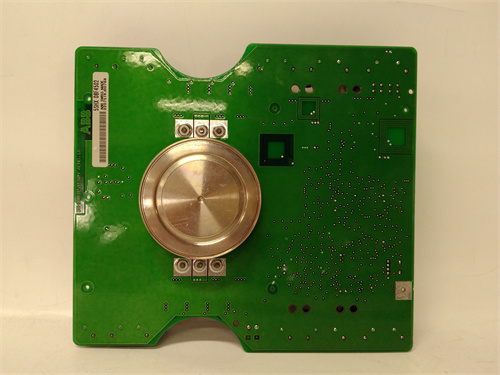

The ABB 5SHX08F4502 is a high-power, Press-Pack IGBT (Insulated-Gate Bipolar Transistor) module, a core component within ABB’s medium voltage variable speed drives, such as the ACS 2000 or industrial power conversion systems. This specific semiconductor module, also identified by the part numbers 3BHB003387R0101, 5SXE05-0151, and the associated gate drive board GVC703AE01, functions as the primary power switching element. The ABB 5SHX08F4502 is responsible for the precise and efficient conversion of electrical power, enabling the control of speed and torque in large motors driving pumps, fans, and compressors. For comprehensive technical documentation, application notes, and handling procedures, the essential resource is the official ABB Medium Voltage Drives documentation portal for the ABB 5SHX08F4502. The performance and reliability of the entire medium voltage drive are critically dependent on the integrity of these IGBT power stacks, making the 5SHX08F4502 a vital spare part for maintenance and lifecycle management. Its press-pack technology offers inherent benefits in fault tolerance and cooling efficiency.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: 5SHX08F4502 (Power Semiconductor IGBT).

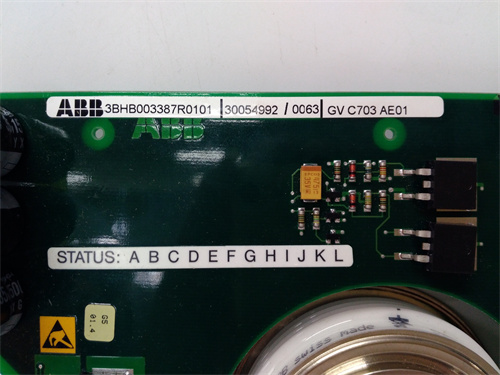

• Related Part Numbers: 3BHB003387R0101 (drive assembly or kit), 5SXE05-0151 (likely a specific sub-component or kit number), GVC703AE01 (Gate Voltage Controller / Driver Board).
• Technology: Press-Pack IGBT (PPI), also known as StakPak IGBT.
• Voltage / Current Rating: High voltage (typically 3300V or 4500V class) and high current (hundreds of Amperes) capable.
• Function: Acts as a high-power, fast-switching semiconductor switch in the inverter or rectifier section of a medium voltage drive.
• Gate Drive: Requires a dedicated gate driver board (like the GVC703AE01) to provide the precise voltage and current signals to turn the IGBT on and off.
• Cooling: Designed for direct mounting onto a liquid-cooled heatsink (cold plate). The press-pack design allows for double-sided cooling, enhancing thermal performance.
• Mechanical Design: No internal potting or gel; uses a direct pressure contact system which allows for a short-circuit failure mode without explosive rupture.
• Protection: Integrated into the drive’s comprehensive protection system, monitoring for over-current, over-temperature, and gate driver faults.

Advantages and Features

• High Power Density: Enables compact drive designs by handling very high power levels in a single module.
• Reliable Short-Circuit Withstand: The press-pack design inherently allows the device to withstand a short-circuit condition for a specified time (typically 10µs), allowing the drive’s control system to safely shut down.
• Excellent Thermal Performance: Double-sided cooling provides efficient heat dissipation, leading to higher current ratings and improved reliability.
• Modular and Serviceable: Designed as a replaceable unit within the power stack, facilitating repair and reducing downtime compared to fully potted modules.
• Long Service Life: When operated within specifications and with proper cooling, these modules offer a long operational lifespan in demanding continuous processes.

Application Cases in Industry

• Oil & Gas (Upstream & Midstream): Used in the variable speed drives controlling large compressors on offshore platforms and pipeline stations for gas transmission.
• Power Generation (FGD & ID Fans): Drives the motors for Induced Draft (ID) fans and booster pumps in power plant flue gas desulfurization (FGD) systems.
• Mining & Minerals: Controls the speed of large grinding mill motors, slurry pumps, and overland conveyor systems.
• Water & Wastewater: Manages the speed of high-power, high-head pumps in large water supply networks and wastewater treatment plants for energy savings.
• Metals & Steel: Drives motors for rolling mill main stands, blowers, and exhaust fans in steel production facilities.

Comparison with Competing Products

The ABB 5SHX08F4502 competes with other medium voltage IGBT modules, primarily from Siemens (Simodrive, IGBT HV Modules) and GE (Power Conversion Stack Modules). Its key differentiator is the Press-Pack IGBT (PPI) technology. Compared to conventional module-type IGBTs (which are potted), the press-pack design offers superior short-circuit ruggedness and better thermal impedance due to double-sided cooling. While competitors may use similar technologies, the 5SHX08F4502 is part of ABB’s well-established StakPak ecosystem, known for its robustness in heavy industrial applications. The alternative is using IGCT (Integrated Gate-Commutated Thyristor) technology, where ABB is also a leader, but IGBTs like the 5SHX08F4502 often offer advantages in switching frequency and control simplicity.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. The ABB 5SHX08F4502 is strictly a direct replacement part for a failed module within a specific ABB medium voltage drive (e.g., ACS 2000). The exact part number from the failed unit must be matched.
  2. It is typically sold and replaced as a complete assembly, including the associated gate driver board (GVC703AE01). Ensure you procure the correct kit.
  3. Verify the compatibility with the specific drive model, serial number, and power stack configuration.
• Precautions:
  1. Extreme High Voltage Hazard: Handling, testing, and installation must be performed only by specially trained and qualified personnel following all high-voltage safety protocols. The drive must be fully isolated, grounded, and verified dead before any work.
  2. Electrostatic Discharge (ESD): The IGBT and gate driver are highly ESD-sensitive. Use proper ESD grounding straps, mats, and packaging during all handling.
  3. Mechanical Handling: The module must be handled with care. Do not drop or impact it. The ceramic housing is fragile. The specified mounting torque and procedure for the clamping mechanism must be followed exactly to ensure proper electrical contact and cooling.
  4. Cooling System Integrity: Before installing a new module, ensure the cooling system (cold plate) is clean, free of leaks, and the coolant is at the correct specification and flow rate. Overheating is a primary cause of failure.
  5. Genuine Parts and Expert Service: Source the ABB 5SHX08F4502 and its associated components exclusively from ABB or authorized service partners. Replacement and commissioning of such a critical component should be performed by ABB-certified field service engineers to ensure proper installation, parameterization, and testing.
