ABB 5SGY3545L0020

Description

Product Overview and Description

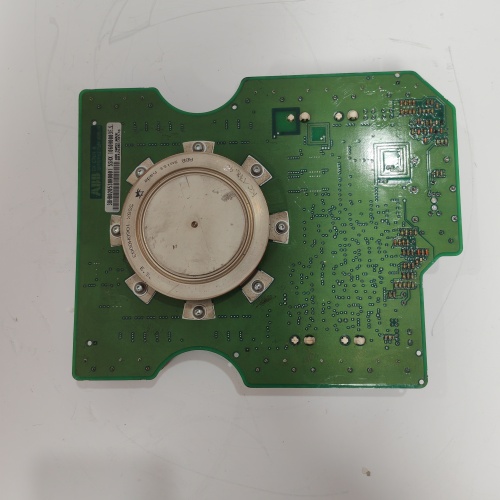

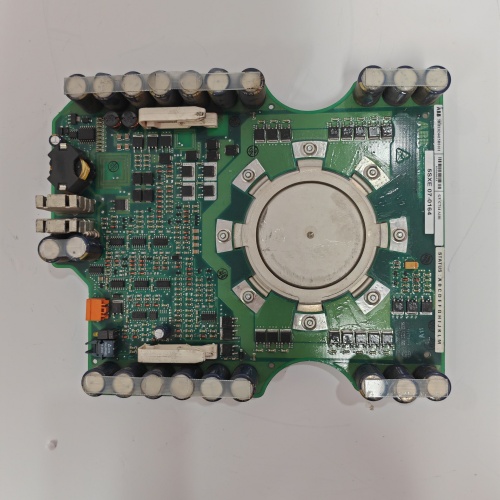

The ABB 5SGY3545L0020 is a high-power IGCT (Integrated Gate-Commutated Thyristor) semiconductor module designed for use within ABB’s medium-voltage drive systems, such as the ACS 6000 and ACS 5000 platforms. These drives are the industry standard for controlling large electric motors in heavy industrial applications, including mining, metals, marine propulsion, oil & gas, and large pumps and fans. The ABB 5SGY3545L0020 serves a critical function: it acts as a high-power switching device within the drive’s power stack, converting DC power to variable-frequency AC power to precisely control motor speed and torque.

Engineered for the demanding 24/7 environment of heavy industry, the ABB 5SGY3545L0020 is built to withstand extreme currents, voltages, and temperatures while maintaining reliable switching performance. Its robust press-pack construction ensures long-term reliability and efficient heat transfer. Utilizing genuine components like the ABB 5SGY3545L0020 guarantees the performance and longevity of your medium-voltage drive system, minimizing unplanned downtime and ensuring continuous operation of critical industrial processes.

Technical Parameters

Based on the analysis of typical ABB IGCT modules, the ABB 5SGY3545L0020 possesses the following likely characteristics:

• Device Type: IGCT (Integrated Gate-Commutated Thyristor) Power Semiconductor Module.
• Voltage Rating: High-voltage capability, typically 4500V or 5500V (indicated by the “45” in the part number, suggesting 4500V).
• Current Rating: High current capability, likely in the range of 1500A to 2000A average current, with high surge current capability for fault handling.
• Switching Frequency: Optimized for medium-voltage drive applications, typically operating at switching frequencies suitable for high-power motor control (a few hundred Hz).
• Construction: Press-pack design for excellent thermal performance and reliability under high-stress conditions. This construction allows for double-sided cooling.
• Integrated Gate Unit: Includes a built-in gate drive unit with optical or electrical interfaces for receiving control signals from the drive’s main controller.
• Protection: Includes built-in protection features such as overcurrent and overtemperature detection.
• Cooling: Designed for liquid cooling (water/glycol) or forced air cooling, depending on the specific drive configuration.
• Application: Specifically designed for use in ABB’s ACS 6000 and ACS 5000 medium-voltage drives.
• Part Number: ABB 5SGY3545L0020 is the specific ordering code for this IGCT module.

Advantages and Key Features

The ABB 5SGY3545L0020 offers several critical advantages for high-power drive applications:

• High Power Handling: The ABB 5SGY3545L0020 is capable of switching extremely high voltages and currents, enabling precise control of large motors (megawatt power levels) in demanding industrial applications.
• Low Switching Losses: IGCT technology offers lower conduction and switching losses compared to other high-power semiconductor technologies, improving overall drive efficiency and reducing cooling requirements.
• Robust and Reliable: The press-pack construction of the 5SGY3545L0020 provides excellent thermal cycling capability and resistance to shock and vibration, ensuring long-term reliability in harsh industrial environments.
• Integrated Gate Drive: The built-in gate drive unit simplifies system design and ensures optimal switching performance, reducing the risk of failure due to external gate drive issues.
• Proven Technology: ABB’s IGCT modules, including the ABB 5SGY3545L0020, have a decades-long track record of reliable performance in thousands of high-power drive installations worldwide.

Application Cases in Key Industries

The ABB 5SGY3545L0020 is fundamental to the operation of critical high-power industrial processes:

• Mining and Minerals Processing: In large grinding mills (SAG mills, ball mills) and crushers, ACS 6000 drives using ABB 5SGY3545L0020 IGCT modules provide precise speed control and high starting torque, optimizing ore processing and reducing energy consumption.
• Metals Industry (Rolling Mills): In steel and aluminum rolling mills, the 5SGY3545L0020 enables precise control of motor speed and torque for roughing stands, finishing mills, and coilers, ensuring consistent product thickness and quality.
• Marine Propulsion: In large ships with electric propulsion systems (e.g., cruise ships, icebreakers, LNG carriers), ABB drives using the ABB 5SGY3545L0020 control the propulsion motors, providing efficient and reliable thrust.
• Oil & Gas (Pipeline Compression): On major pipeline compressor stations, ACS 6000 drives with ABB 5SGY3545L0020 modules control large electric motors driving gas compressors, ensuring reliable gas transport.
• Large Pumps and Fans: In water pumping stations, power plant cooling water pumps, and large industrial fans, the ABB 5SGY3545L0020 enables efficient variable-speed operation, reducing energy consumption and improving process control.

Comparison with Competitors

In the high-power semiconductor market for medium-voltage drives, ABB’s primary competitors include Infineon, Mitsubishi Electric, and other IGCT/IGBT manufacturers.

• ABB 5SGY3545L0020 vs. Infineon IGCT/IGBT Modules: Infineon offers competing high-power semiconductor solutions. The ABB 5SGY3545L0020 is specifically optimized for ABB’s drive platforms and control algorithms, ensuring perfect compatibility and performance in ACS 6000/5000 drives.
• ABB 5SGY3545L0020 vs. Mitsubishi Electric IGCT/IGBT Modules: Mitsubishi is a strong competitor in power semiconductors. The 5SGY3545L0020 benefits from ABB’s deep expertise in drive system integration and the proven field performance of ABB’s IGCT technology in thousands of installations.
• ABB 5SGY3545L0020 vs. Standard IGBT Modules: For ultra-high-power applications (above 5-10 MW), IGCT technology like the ABB 5SGY3545L0020 often offers lower losses and higher reliability compared to standard IGBT modules, making it the preferred choice for the largest drives.

Selection Recommendations and Precautions

1. Exact Part Number Verification: The part number ABB 5SGY3545L0020 is highly specific. Verify that this matches the IGCT module required for your specific ACS 6000 or ACS 5000 drive by consulting the drive’s spare parts list and documentation.
2. Drive Compatibility: Confirm that the ABB 5SGY3545L0020 is compatible with your specific drive model, firmware version, and power stack configuration.
3. Qualified Installation: Replacement of IGCT modules in medium-voltage drives is a high-risk procedure that must only be performed by qualified personnel trained in high-power electrical safety and ABB drive systems.
4. Thermal Interface: When installing the ABB 5SGY3545L0020, proper torque and thermal interface material application are critical for ensuring adequate cooling and long-term reliability.
5. ESD Precautions: Despite being a power device, the ABB 5SGY3545L0020 contains sensitive gate drive electronics. Follow proper ESD precautions when handling the module.
