ABB 5SGY3545L0020

Description

Product Description

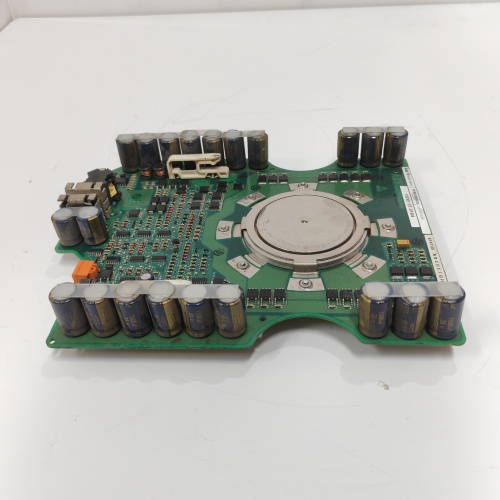

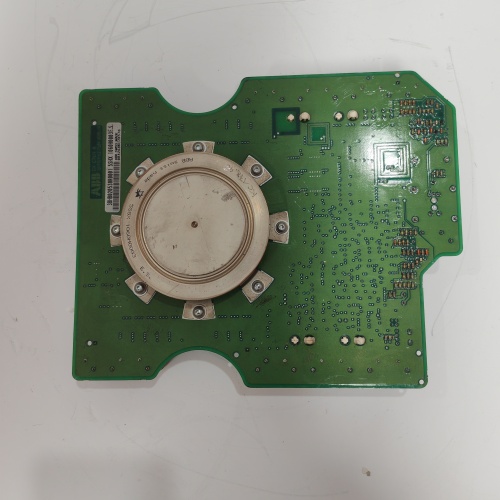

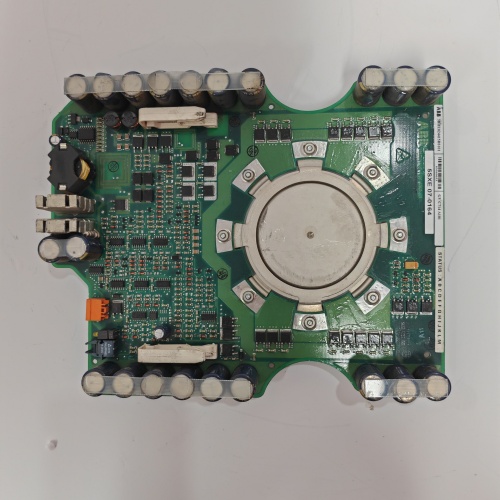

The ABB 5SGY3545L0020 is a high-power semiconductor module from ABB’s renowned 5SGY series, specifically a Press-Pack IGBT (PPI) or a similar advanced power device. This module is designed for ultra-high power, medium-voltage applications, typically serving as the core switching component in voltage source converters (VSCs) for industrial drives, renewable energy systems, and grid infrastructure. The 5SGY3545L0020 integrates an Insulated Gate Bipolar Transistor (IGBT) and a freewheeling diode in a robust, press-pack housing. This design provides excellent thermal cycling capability, high current density, and direct liquid cooling, making it suitable for the most demanding high-power, high-reliability applications such as multi-megawatt motor drives and static synchronous compensators (STATCOMs). The performance and durability of the ABB 5SGY3545L0020 are critical for the efficiency and availability of large-scale power electronic systems.

Product Parameters

• Module Type: High-Power Press-Pack IGBT (PPI) Module
• Voltage Class: Medium Voltage (e.g., 3300V, 4500V – specific voltage is defined by the “3545” code).
• Current Rating: Very high current rating, typically in the range of thousands of Amperes.
• Package: Press-Pack (or similar pressure-contact) housing. This design eliminates bond wires, uses direct pressure contacts for low inductance, and allows for double-sided cooling.
• Internal Components: Contains an IGBT chip and an anti-parallel diode.
• Cooling Method: Designed for direct liquid cooling (typically deionized water/glycol) via mounted heatsinks on both sides.
• Switching Characteristics: Designed for low switching and conduction losses at medium switching frequencies.
• Mounting: Requires a clamping mechanism with precisely controlled pressure to ensure proper electrical and thermal contact.
• Applications: Used as a building block in multi-level inverter topologies (e.g., NPC, MMC) for high-power converters.

Advantages and Features

• Exceptional Power Cycling Capability: The press-pack design of the ABB 5SGY3545L0020 provides superior thermal cycling performance compared to traditional base-plate modules. The absence of solder and bond wires eliminates common failure mechanisms, leading to significantly longer lifetime under high-load fluctuations.
• High Power Density and Efficiency: The double-sided cooling and low-inductance design allow for very high current ratings in a compact form factor, while optimized semiconductor technology ensures low losses for high system efficiency.
• High Reliability and Ruggedness: Designed for mission-critical, 24/7 applications. The robust construction can withstand harsh electrical and mechanical environments common in heavy industry and energy sectors.
• Scalable System Design: Multiple 5SGY3545L0020 modules can be combined to build converters for different voltage and power levels, providing a modular approach to system design.
• Proven Technology in Critical Applications: Part of ABB’s industry-leading StakPak® or similar high-power portfolio, with a long track record in demanding applications like rolling mill drives, mine hoists, and large pump drives.

Application Cases in Various Fields

• High-Power Industrial Drives (ACS6000, ACS6080): Used in the inverter sections driving multi-megawatt synchronous motors for compressors in LNG plants, extruders, and large fans/pumps.
• Renewable Energy Integration: A key component in the power converters for high-voltage direct current (HVDC Light) transmission systems and large-scale STATCOMs for grid stability.
• Marine Propulsion: Used in the variable frequency drives (VFDs) for electric propulsion of large vessels like cruise ships and icebreakers.
• Test Benches & Energy Storage: Employed in high-power grid simulators and converters for large battery energy storage systems (BESS).

Comparisons with Competing Products

1. Vs. Standard IGBT Modules (e.g., EUPEC, Infineon, Mitsubishi): Standard modules use base-plate mounting and wire bonds. The press-pack technology of the 5SGY3545L0020 offers superior reliability under power cycling, higher current density, and better short-circuit withstand capability, but often at a higher cost and with more complex mechanical mounting requirements.
2. Vs. IGCTs (ABB’s own 5SHY series): IGCTs are another high-power device from ABB. The 5SGY3545L0020 IGBT typically offers higher switching frequency capability and simpler gate drive requirements, while IGCTs may have advantages in very high current, low-frequency switching. The choice depends on the specific converter topology and optimization goals.
3. Vs. Other OEM Press-Pack IGBTs: Competitors like Mitsubishi Electric and Toshiba also offer press-pack IGBTs. The ABB 5SGY3545L0020 competes on specific performance parameters (losses, ruggedness), integration with ABB’s gate drives and system know-how, and global service support.
4. Key Differentiator: Its press-pack technology is the primary differentiator, targeting applications where ultimate reliability under strenuous thermal cycling is non-negotiable.

Selection Suggestions and Precautions

1. System-Level Design Requirement: This module is not a standalone component. Its selection and use are part of a complete power stack design by experienced power electronic engineers. It must be matched with a compatible gate drive unit (GDU), snubber circuits, and cooling system.
2. Precise Mechanical Mounting is Critical: The press-pack design requires a precisely engineered clamping fixture with controlled pressure (torque). Incorrect pressure can lead to poor thermal contact (overheating) or damage to the ceramic housing. Always follow ABB’s mounting instructions exactly.
3. Liquid Cooling System Integrity: The cooling system must be impeccably clean (deionized water) and leak-free. Any contamination or air bubbles can cause immediate thermal failure. Monitor coolant flow, temperature, and conductivity rigorously.
4. Gate Drive Compatibility and Protection: Use only the ABB-recommended or certified gate drive board designed for this specific module. Proper protection (short-circuit, overcurrent, de-saturation detection) must be implemented in the gate drive to protect the expensive IGBT.
5. High Voltage/Energy Hazard: These modules operate at lethal medium voltages and store enormous energy. All work must be performed by qualified personnel following high-voltage safety protocols, including full discharge and verification.
6. Thermal and Electrical Testing: Before full-power commissioning, the complete power stack must undergo low-voltage functional tests of the gate drives and thermal tests of the cooling loop under no load.
7. Source from Authorized Distributors: Due to its high value and critical nature, purchase the ABB 5SGY3545L0020 only from ABB or authorized channels to ensure authenticity, receive proper technical documentation, and obtain warranty support.
8. Consider Lifecycle and Support: For long-term projects, discuss the product lifecycle roadmap with ABB. Have a strategy for spare parts and consider the availability of repair services for the complete power stack.
