ABB 5SGY3545L0017

Description

Product Description

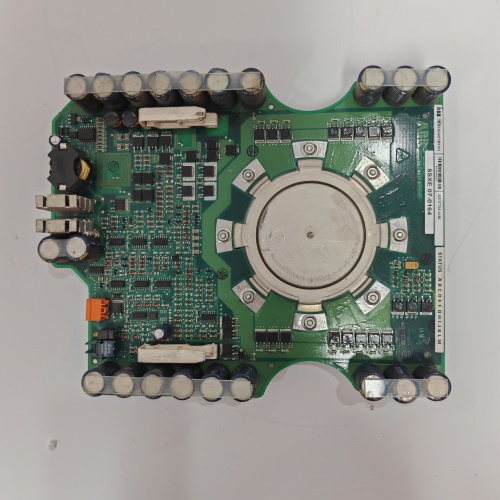

The ABB 5SGY3545L0017 is a high-power, press-pack IGBT (Insulated Gate Bipolar Transistor) semiconductor device from ABB’s HiPak product family. This module is a critical power electronic component used as a switch in high-voltage, high-current applications such as industrial drives, traction converters, and renewable energy systems. The 5SGY3545L0017 IGBT is not a PLC spare part in the traditional sense but is a fundamental building block within the power stages of advanced motor drives and power converters that are integral to modern industrial automation. Implementing the ABB HiPak 5SGY3545L0017 enables efficient power conversion and control in demanding high-power applications.

Product Parameters and Specifications

• Product Type: Press-Pack IGBT / High-Power Semiconductor Module.
• Product Family: ABB HiPak.
• Voltage Rating: High voltage blocking capability, typically 3300V or 4500V (indicated by the “3545” in the part number).
• Current Rating: High nominal current rating, often in the range of hundreds to over a thousand Amperes.
• Package: Press-pack (hockey puck) design. It requires external pressure applied via a heatsink and clamping mechanism for proper electrical contact and thermal conduction.
• Key Characteristics: Includes a co-packaged anti-parallel diode for freewheeling current in inductive loads.
• Thermal Management: Designed to be mounted directly onto a liquid-cooled or high-performance air-cooled heatsink. Maximum junction temperature is a critical parameter.

Advantages and Features

1. High Power Density and Ruggedness: The press-pack design of the ABB 5SGY3545L0017 offers excellent thermal and mechanical performance. It is highly resistant to thermal cycling and power cycling stresses, making it suitable for demanding industrial environments with frequent load changes.
2. Low Saturation Voltage: Provides high efficiency by minimizing conduction losses when the device is in the “on” state, which is crucial for reducing energy waste and thermal management challenges in high-power circuits.
3. Short-Circuit Withstand Capability: Designed to withstand short-circuit conditions for a specified time (typically a few microseconds), allowing downstream protection circuits time to react and clear the fault, enhancing system reliability.
4. Parallelability: Modules can be connected in parallel to achieve even higher current ratings, enabling scalable designs for very high-power applications like large mill drives or medium-voltage drives.
5. Proven Reliability in Critical Applications: As part of ABB’s established HiPak family, this IGBT is used in mission-critical infrastructure such as mining conveyors, marine propulsion, and HVDC transmission, where failure is not an option.

Application Cases in Various Fields

• Medium Voltage Drives (MVD): Used as the main switching element in ACS 1000, ACS 6000, or other ABB medium-voltage variable frequency drives controlling large pumps, fans, and compressors in mining, water treatment, and oil & gas.
• Traction Converters: Forms the power stage in converters for electric and hybrid locomotives, trams, and subway systems.
• Renewable Energy Inverters: Used in large solar inverter stations and wind turbine power converters for grid connection.
• Industrial Power Supplies: Found in high-power, switch-mode power supplies for electrochemical processes or melting applications.

Comparison with Competing Products

• vs. Module-Type IGBTs (e.g., Infineon, Mitsubishi): Competing module types (like 62mm or EconoDUAL) are solder-based and used in lower power ranges. The press-pack 5SGY3545L0017 is designed for significantly higher voltage and current, offering superior power cycling capability and easier replacement in the field due to its clamping mechanism.
• vs. IGCTs (Integrated Gate-Commutated Thyristors): IGCTs are another high-power device. IGBTs like the HiPak generally offer easier gate drive requirements and higher switching frequencies, while IGCTs may have lower conduction losses at very high currents. The choice depends on the specific converter topology and requirements.
• vs. Older Thyristor/SCR Technology: IGBTs are fully controllable switches (can be turned on and off by the gate), whereas thyristors only control turn-on. This gives IGBT-based systems using the 5SGY3545L0017 superior control, higher efficiency, and better power quality performance.

Selection Suggestions and Precautions

1. Expert System Design Required: Selecting and implementing this IGBT is part of designing a complete power electronics converter. It requires in-depth knowledge of thermal management, snubber circuits, gate driving, and protection schemes. It is not a standalone component for general automation personnel.
2. Critical Thermal Interface and Clamping: The press-pack design requires a precisely controlled clamping force applied via a recommended clamping unit. An incorrect interface pressure can lead to overheating, high contact resistance, or catastrophic failure. The thermal interface material (grease or pad) is also crucial.
3. Gate Drive Compatibility: The gate driver circuit must be specifically designed to match the electrical characteristics (gate charge, voltage thresholds) of the 5SGY3545L0017 IGBT. An improper gate drive can cause excessive switching losses, oscillations, or device destruction.
4. Comprehensive Protection is Mandatory: The application must include fast-acting protection against overcurrent, short-circuit, overvoltage, and overtemperature. The IGBT’s short-circuit withstand time is very limited.
5. Handle with Extreme ESD and Mechanical Care: The device is sensitive to electrostatic discharge (ESD). It must also be handled carefully to avoid damaging the ceramic housing or the pressure contacts. Always follow the manufacturer’s handling instructions meticulously.
