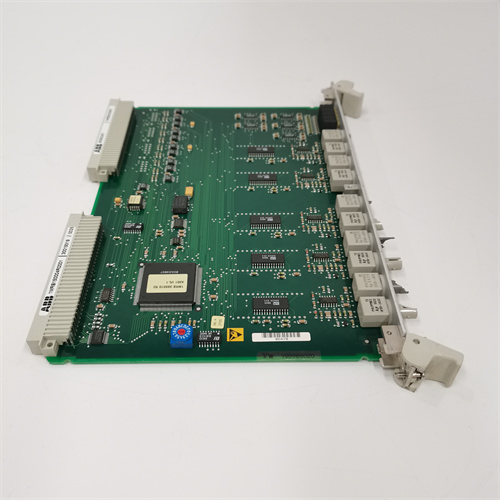

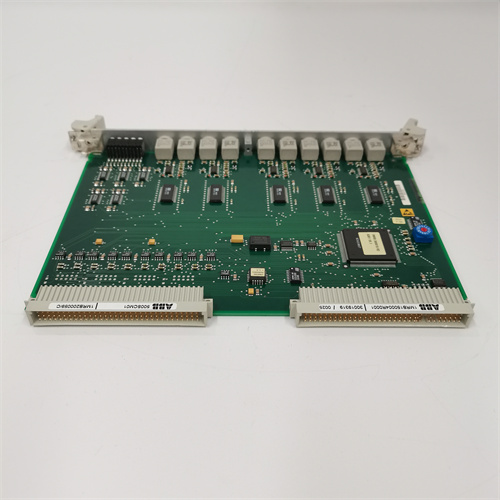

ABB 500SCM01 1MRE450004R1

Description

Product Description

The ABB 500SCM01 1MRE450004R1 is a versatile serial communication interface module designed for the ABB Freelance AC 700F and AC 800F Controller families. This module enables the PLC to connect to a wide range of field devices and subsystems that use serial communication protocols, acting as a crucial gateway for data integration. The primary function of the ABB 500SCM01 1MRE450004R1 is to provide two electrically isolated RS-232C/RS-485 ports, allowing the controller to act as a master or slave in various industrial networks. It is an essential component for modernizing and integrating legacy equipment into the Freelance control system, facilitating communication with devices like motor drives, weighing scales, barcode readers, and other PLCs. The robust design and protocol flexibility of the ABB 500SCM01 1MRE450004R1 make it a reliable solution for bridging communication gaps in diverse industrial applications. Implementing the ABB 500SCM01 1MRE450004R1 effectively extends the connectivity of the Freelance system, ensuring seamless data exchange across the automation architecture.

Product Parameters

• Function: Dual-port Serial Communication Module.
• Communication Interface: 2 isolated serial ports, configurable as RS-232C or RS-485.
• Supported Protocols: Modbus RTU (Master/Slave), ASCII, and other common serial protocols.
• Isolation: Galvanic isolation between the serial channels and the controller bus for enhanced noise immunity and system protection.
• Data Transfer Rate: Supports standard baud rates up to 115.2 kbps.
• Configuration: Configured via the ABB Freelance Engineering tool (Control Builder F).
• Compatibility: Designed for the ABB Freelance AC 700F and AC 800F controller racks.
• Order Number: 1MRE450004R1 is the specific article code for the ABB 500SCM01 module.

Advantages and Features

The key advantage of the ABB 500SCM01 1MRE450004R1 is its dual, isolated port design which provides two independent communication channels in a single module slot, maximizing connectivity density. Its support for industry-standard protocols like Modbus RTU ensures easy integration with a vast ecosystem of third-party devices without requiring additional protocol converters. The module features robust electrical isolation, protecting the sensitive controller backplane from ground loops, surges, and noise commonly present on industrial serial networks. Its integration into the Freelance engineering environment allows for straightforward configuration, monitoring, and diagnostics.

Application Cases in Key Fields

• Water and Wastewater Treatment: Connects an AC 800F controller to multiple submersible pump variable frequency drives (VFDs) and dissolved oxygen sensors via Modbus RTU networks across a treatment plant.
• Manufacturing Assembly Lines: Enables communication between a Freelance controller and a series of robotic workstations, vision systems, or legacy weighing controllers using ASCII or RS-232 protocols.
• Building Automation: Allows an AC 700F controller to act as a Modbus master to poll data from a network of HVAC units, chillers, and electricity meters for centralized building management.
• Food and Beverage: Interfaces with batching and mixing systems by connecting to recipe management terminals or flow totalizers via serial links for precise ingredient control.

Comparison with Competing Products

Compared to similar serial communication modules from Siemens (for SIMATIC S7-1200/1500) or Schneider Electric (for Modicon M340), the ABB 500SCM01 1MRE450004R1 is specifically optimized for the ABB Freelance distributed control system environment. Competing products may offer similar protocol support but are tied to their respective PLC ecosystems. The ABB 500SCM01 stands out for its native, seamless integration within the Freelance engineering suite, providing a unified configuration experience. Its dual isolated ports in one module often provide better value and space efficiency compared to some competitors that require separate modules for additional ports.

Selection Suggestions and Precautions

1. Protocol and Role Definition: Clearly identify the required protocol (Modbus RTU Master, Modbus RTU Slave, ASCII) and the role of the controller for each port before configuration.
2. Cabling and Termination: For RS-485 networks using the ABB 500SCM01 1MRE450004R1, strict adherence to cabling guidelines (twisted-pair, shield grounding) and proper network termination at both ends is critical for reliable communication.
3. Address Configuration: Ensure unique slave addresses are assigned to all devices on a Modbus RTU network to prevent communication conflicts.
4. Software Compatibility: Verify that the module is supported by your specific version of the ABB Control Builder F engineering software.
5. Legacy Integration Planning: When integrating legacy serial devices, confirm their protocol details (baud rate, parity, data bits) to match the module’s port settings. For authentic hardware, correct documentation, and firmware details, always refer to the official source: ABB 500SCM01 1MRE450004R1. Consider the electrical environment; in areas with high electromagnetic interference, additional protection for serial lines may be necessary.
