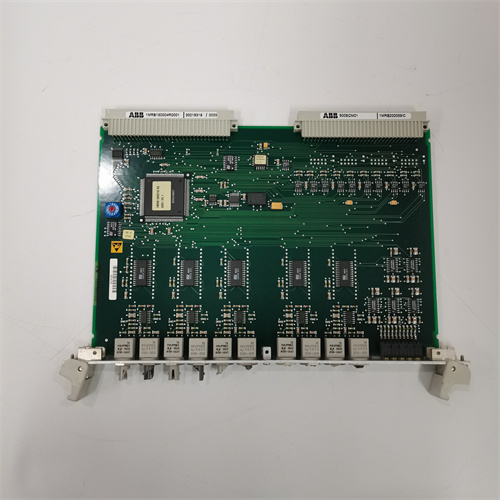

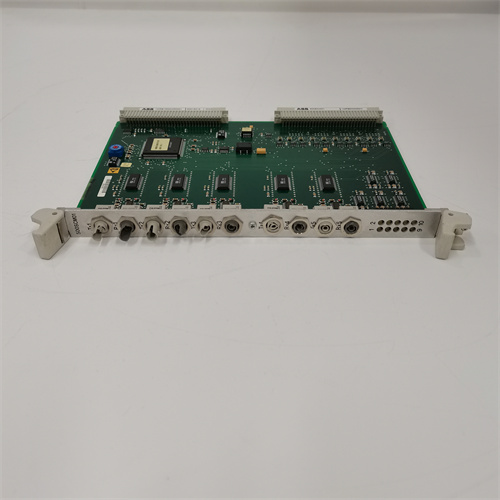

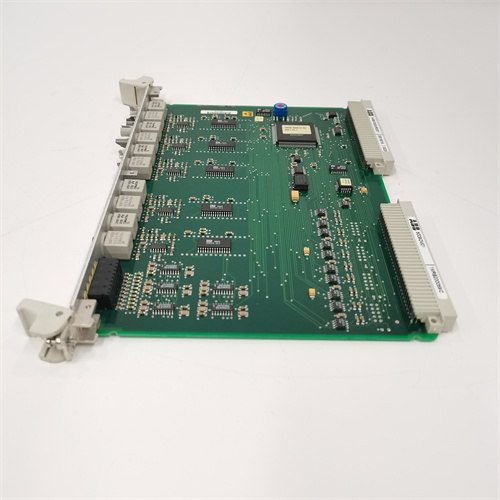

ABB 500SCM01 1MRB150004R0001 1MRB200059/C

Description

The ABB 500SCM01 1MRB150004R0001 1MRB200059/C is a dedicated system communication module designed for ABB’s Procontrol P13/P14 and marine automation systems. This high-integrity communication processor enables deterministic data exchange between distributed control system nodes and provides gateway functionality to vessel management systems. The ABB 500SCM01 1MRB150004R0001 1MRB200059/C remains an essential component for marine automation, offshore platform control, and specialized industrial applications requiring robust, certified communication infrastructure.

Product Overview and Description

The ABB 500SCM01 1MRB150004R0001 1MRB200059/C functions as a dedicated communication processor within ABB Procontrol distributed control architectures, managing high-speed data exchange between controller nodes, operator stations, and higher-level vessel management systems. This module incorporates dual redundant communication channels supporting ABB’s proprietary G-bus protocol alongside standard marine industry interfaces. The ABB 500SCM01 1MRB150004R0001 1MRB200059/C features comprehensive network diagnostics, automatic topology discovery, and seamless failover capabilities essential for mission-critical marine automation applications. Designed specifically for the demanding marine environment, the module includes conformal-coated circuit boards, extended vibration tolerance, and corrosion-resistant connectors. Front-accessible status indicators provide immediate visibility into network health, node status, and communication activity without requiring engineering workstation connection.

Key Parameters and Specifications

• Communication Protocol: ABB G-bus proprietary deterministic protocol, Modbus RTU, NMEA 0183.
• Network Topology: Redundant ring, star, or daisy-chain configurations supported.
• Transmission Rate: 12 Mbps typical on G-bus, 115.2 kbps maximum on serial interfaces.
• Port Configuration: 2x G-bus ports, 2x RS-485 serial ports, 1x RS-232 configuration port.
• Redundancy: Dual-channel communication with bumpless automatic failover (<50 ms).
• Node Support: Up to 63 nodes per network segment, multiple segments via repeaters.
• Diagnostics: Network health, node status, communication error counters, traffic monitoring.
• Isolation: 1500 VAC G-bus to logic, 500 VAC serial port isolation.
• Memory: 16 MB SDRAM, 8 MB Flash for firmware and configuration storage.
• Power Consumption: 400 mA from +5 VDC, 150 mA from +24 VDC.
• Certifications: DNV-GL, Lloyd’s Register, ABS, Bureau Veritas, CCS marine type approved.
• Environmental: -25°C to +70°C operating, 5-95% relative humidity non-condensing, 4g vibration tolerance.
• Mounting: Eurocard format, 6U height, 4HP width, DIN 41612 connector.

Advantages and Functional Benefits

The ABB 500SCM01 1MRB150004R0001 1MRB200059/C delivers specialized advantages for marine and offshore automation:

1. Marine Type Approval: Full certification from all major classification societies (DNV-GL, LR, ABS, BV, CCS) significantly reduces vessel certification effort and risk.
2. Deterministic Performance: Guaranteed 10 ms maximum network update rate supports time-critical vessel automation functions including power management and dynamic positioning interfaces.
3. Redundant Architecture: Dual communication channels with automatic failover provide fault-tolerant operation essential for unmanned engine room notation and reduced watchkeeping certifications.
4. Legacy Compatibility: Full backward compatibility with Procontrol P13 systems and earlier 500SCM module variants, preserving substantial marine automation investments.
5. NMEA Integration: Native NMEA 0183 interface enables direct connection to GPS, gyrocompass, and other navigation equipment without external protocol converters.

Application Fields and Use Cases

The ABB 500SCM01 1MRB150004R0001 1MRB200059/C is extensively deployed across marine, offshore, and specialized industrial applications:

• Merchant Vessels: Container ships, bulk carriers, tankers – integrated alarm monitoring systems, power management, ballast control.
• Offshore Supply Vessels: Dynamic positioning system interfaces, station-keeping control, ROV support systems.
• Drilling Rigs: Drilling control system networking, BOP control communication, marine riser management.
• Passenger Vessels: Cruise ships, ferries – integrated bridge systems, safety monitoring, propulsion control networking.
• Naval Applications: Frigates, corvettes, auxiliaries – platform management systems, machinery control communication.

Competitor Comparison

When evaluated against alternative marine communication solutions, the ABB 500SCM01 1MRB150004R0001 1MRB200059/C demonstrates distinctive positioning. Siemens Marine SCALANCE XR-300 series industrial Ethernet switches provide general networking capability but lack native G-bus protocol support and require extensive configuration for marine automation applications. Kongsberg Maritime’s cProc communication modules offer comparable vessel network integration but at significantly higher cost and limited to Kongsberg control system ecosystem. The ABB 500SCM01 1MRB150004R0001 1MRB200059/C maintains unique advantage through seamless Procontrol system integration and comprehensive classification society certifications. While modern Ethernet-based marine automation systems represent newer technology, the ABB 500SCM01 1MRB150004R0001 1MRB200059/C remains essential for sustaining the extensive Procontrol installed base exceeding 10,000 vessels worldwide. Generic industrial communication processors cannot replicate the ABB 500SCM01 1MRB150004R0001 1MRB200059/C‘s deterministic performance and certified reliability required for unmanned machinery spaces.

Selection Recommendations and Precautions

• Firmware Revision Verification: The ABB 500SCM01 1MRB150004R0001 1MRB200059/C requires specific firmware revisions for different classification society notations; confirm firmware version matches vessel certification requirements before installation. Mixed firmware revisions across redundant modules prevent successful synchronization.
• Network Termination: G-bus segments require proper termination at both physical ends; the ABB 500SCM01 1MRB150004R0001 1MRB200059/C does not provide integrated termination. Missing or incorrect termination causes network reflections and intermittent node communication failures difficult to diagnose.
• Cable Specification: Use only ABB-approved G-bus cable (1MRB150004-Uxxx series); substitution with standard industrial Ethernet or instrumentation cable reduces maximum segment length by approximately 60% and invalidates marine type approval.
• Redundancy Configuration: Redundant ABB 500SCM01 1MRB150004R0001 1MRB200059/C installations require physically separated communication paths throughout vessel; single cable tray containing both primary and secondary channels eliminates redundancy benefit for fire and mechanical damage scenarios.
• Grounding Protocol: Strict adherence to single-point grounding scheme is mandatory for marine installations; multiple ground paths through communication cable shields create ground loops causing communication errors and accelerated port transceiver degradation.
• Spare Parts Strategy: The ABB 500SCM01 1MRB150004R0001 1MRB200059/C remains in active production but manufacturing lead times currently extend to 18-24 weeks. Maintain minimum 25% spares inventory relative to installed count for vessels with unmanned machinery space notations where failure response time is critical.
• Configuration Backup: Always export complete module configuration parameters via RS-232 configuration port before replacement; the ABB 500SCM01 1MRB150004R0001 1MRB200059/C configuration resides in volatile memory without battery backup.
• Environmental Verification: Confirm installation environment does not exceed 60°C continuous; marine engine room ambient temperatures frequently approach maximum specifications. The ABB 500SCM01 1MRB150004R0001 1MRB200059/C relies on convection cooling; supplementary ventilation recommended for high-ambient-temperature installations.
• Classification Society Interface: Major modification or replacement of ABB 500SCM01 1MRB150004R0001 1MRB200059/C components may require classification society surveyor notification; consult vessel certification documentation and flag state requirements before commencing work.
