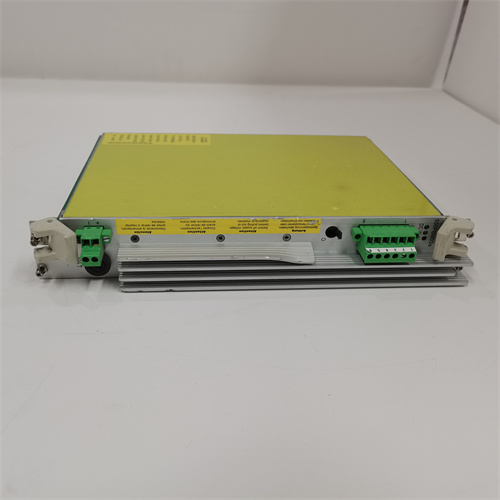

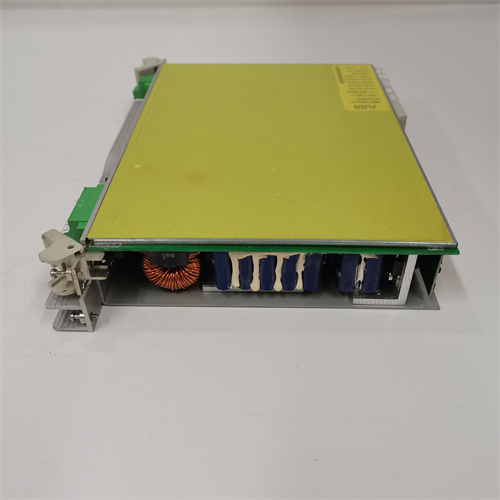

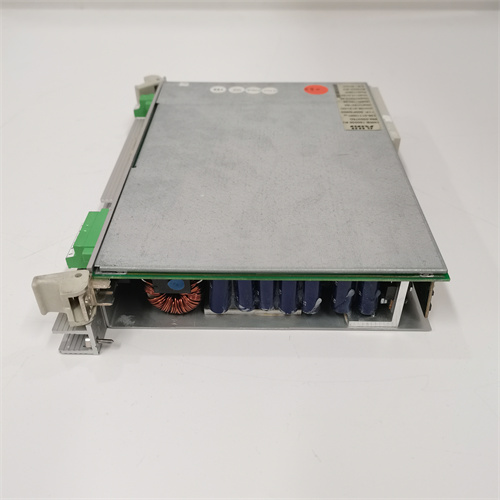

ABB 500PSM03 1MRB 150038 R1 894-030375D 136-011100H

Description

Product Description

The ABB 500PSM03 1MRB 150038 R1 894-030375D 136-011100H is a complex system component comprised of multiple part numbers, likely referencing a Power Supply Module (PSM) within an ABB control or protection system. The core identifier, 500PSM03, suggests it is a specific variant of a power supply module designed for a demanding application, such as within ABB’s Relion protection relay series or a similar automation platform. This module’s primary function is to convert and condition incoming AC or DC power to provide stable, isolated DC voltages required by the sensitive electronic circuits of the control or protection device it serves. Integrating the correct ABB 500PSM03 variant is fundamental for ensuring the operational integrity and reliability of the overall system.

Product Parameters and Specifications

• Product Type: Power Supply Module (PSM) for a specific ABB system (e.g., Relion relay, controller cabinet).
• Core Model: 500PSM03 – Denotes the power supply module series and version.
• Other References:
  • 1MRB 150038 R1: Likely an ABB internal assembly or orderable part number.
  • 894-030375D: Could be a drawing number, a manufacturing code, or a board assembly identifier.
  • 136-011100H: Potentially a specific hardware revision or a component code.
• Input Power: Designed for a specific input range (e.g., 85-264 VAC, 100-250 VDC), which must be verified for the exact variant.
• Output Voltages: Provides multiple isolated DC outputs (e.g., +5V, ±12V, +24V) to power the host device’s processor, I/O, and communication circuits.
• Mounting: Typically designed as a plug-in module or board that installs inside a larger device chassis or rack.
• Safety & Compliance: Designed to meet relevant safety and EMC standards for industrial or electrical utility equipment.

Advantages and Features

1. Critical System Power Integrity: The primary role of a module like the ABB 500PSM03 is to deliver clean, regulated, and isolated power. This is non-negotiable for the accurate operation of protection algorithms, precise analog measurements, and reliable digital logic in the host device.
2. Robust Design for Demanding Environments: Power supplies in protection and control systems are built to withstand electrical noise, transients, and wide temperature ranges. The 500PSM03 is engineered for high reliability in substation or industrial plant environments.
3. Ensures Continuous Operation: A stable internal power source prevents system resets, data corruption, or erratic behavior that could be caused by fluctuations in the raw plant supply, contributing directly to system availability.
4. Integrated Protection Features: Typically includes safeguards such as over-voltage protection, over-current limiting, and thermal shutdown to protect both the power supply itself and the downstream electronics.
5. Guaranteed Compatibility: Using the exact part number combination (e.g., 1MRB 150038 R1) ensures mechanical fit, electrical compatibility, and performance as specified by the original equipment manufacturer (OEM), ABB.

Application Cases in Various Fields

• Electrical Substation Protection: Likely used as the internal power supply for an ABB Relion series protection relay (e.g., REF, REJ, RET) protecting feeders, transformers, or motors in utility and industrial networks.
• Industrial Control Cabinets: Could serve as the dedicated power module for a controller or I/O interface unit within a larger ABB automation system (e.g., AC 800M cabinet accessories).
• Power Quality and Measurement Devices: May power the internal electronics of advanced metering or power quality analyzers.

Comparison with Competing Products

• vs. Generic Industrial Power Supplies: Off-the-shelf power supplies lack the specific form factor, voltage combination, mounting, and certification for direct integration into proprietary ABB equipment. Their use could void warranties and compromise system performance or safety.
• vs. Third-Party “Clone” or Rebuilt Modules: While cheaper, third-party modules may not meet original ABB specifications for component quality, ripple/noise performance, or environmental tolerance, posing a risk to the reliability of the critical host system.
• vs. Older Generation Power Supply Modules: This specific 500PSM03 variant with its associated suffixes may offer improved efficiency, better thermal performance, or updated safety certifications compared to earlier versions used in the same device family.

Selection Suggestions and Precautions

1. Mandatory Cross-Referencing and Verification: This string of numbers represents a very specific assembly. Do not assume compatibility based on the “500PSM03” alone. You must use the full part number string to locate the correct technical documentation and verify it is the exact replacement for the failed module in your specific device. Check the host device’s manual, spare parts list, or nameplate.
2. Handle as an ESD-Sensitive Component: Treat this electronic module with proper electrostatic discharge (ESD) precautions. Handle by the edges and use an anti-static wrist strap and bag.
3. Input Power Verification: Before installation, double-check that the incoming power source (AC voltage, DC voltage) matches the exact input specifications for this verified part number. Applying incorrect power will destroy the module.
4. Obsolescence and Sourcing: Given the detailed part numbering, this is likely a proprietary component for a specific system generation. Source from authorized ABB channels or highly reputable surplus specialists who guarantee the correct part number match.
5. Professional Installation Recommended: Replacement of internal power supply modules in complex protection or control equipment often requires disassembly. This should be performed by qualified personnel familiar with the host device to avoid damage.
