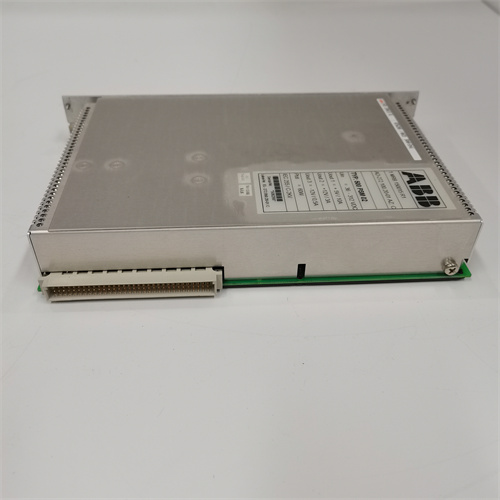

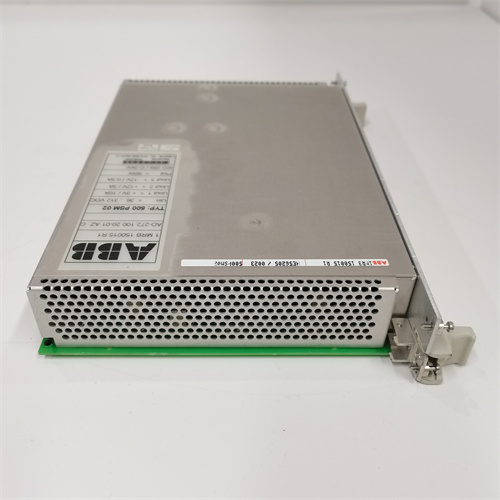

ABB 500PSM02 1MRB150015R1 AD-272.100.20-01 AZ:C

Product Description

The ABB 500PSM02 1MRB150015R1 is a specialized system power supply and communication interface module for the ABB S500 and System 800xA automation platforms, where it also carries the ordering code AD-272.100.20-01. This module performs a dual critical function: it acts as a Power Supply Module (PSM) for the S500 controller rack and simultaneously serves as the primary communication gateway to the higher-level 800xA system network. The ABB 500PSM02 is engineered to convert the incoming plant auxiliary power (typically 24V DC, 115V AC, or 230V AC) into the clean, regulated DC voltages required by the S500 CPU and I/O modules. Concurrently, it establishes a robust, deterministic communication link, allowing the S500 controller to operate as a fully integrated node within the ABB Ability™ System 800xA environment. This dual role makes the 500PSM02 a cornerstone component for building scalable and integrated control solutions.

Product Parameters

• Product Type: Power Supply and Communication Interface Module (for S500 Controllers in 800xA).
• Compatibility: Designed for S500 controllers (e.g., AC 800M) integrating into System 800xA.
• Primary Functions:
  1. Power Supply: Converts incoming AC/DC power (specified by variant, e.g., 115/230V AC) to internal DC voltages (e.g., +5V, +24V) for the controller backplane.
  2. Communication Gateway: Provides the physical and data link interface to the 800xA network, typically via a high-speed, fault-tolerant industrial Ethernet (e.g., 800xA Connect via FTE – Fault Tolerant Ethernet).
• Input Voltage: Available in various ranges (e.g., 24V DC, 115/230V AC) as defined by the suffix codes (AZ:C may indicate a specific input voltage and frequency).
• Communication Protocols: Native support for ABB’s Industrial Ethernet protocols for seamless integration with 800xA servers, clients, and other controllers.
• Redundancy Support: Can be configured in redundant pairs (N+1) for both power and communication paths to achieve high system availability.
• Diagnostics: Comprehensive status LEDs and internal diagnostics for power health, communication link status, and module faults.
• Mounting: Occupies a dedicated slot in the S500 controller rack.

Advantages and Key Features

• Unified Power and Network Integration: The key advantage of the ABB 500PSM02 is its combination of power conversion and network interfacing in a single module, simplifying cabinet layout, reducing inter-module wiring, and ensuring optimized compatibility.
• High Availability Architecture: Designed for critical processes, its support for redundant configuration in both power and communication domains eliminates single points of failure, maximizing controller uptime.
• Deterministic Network Performance: Provides a high-performance, low-latency connection to the 800xA system network, which is essential for fast control loop execution and reliable peer-to-peer controller communication.
• Centralized Engineering and Diagnostics: As an integral part of the 800xA system, the module is fully configured and monitored from the central 800xA engineering station (Control Builder M), providing a unified view of hardware health and network status.
• Robust and Reliable Design: Built to industrial standards for continuous operation in demanding environments, ensuring long-term stability for the controller’s core infrastructure.

Application Case Studies

• Chemical Batch Process in an 800xA DCS: An S500 controller with a 500PSM02 module governs a reactor unit. The module powers the controller and I/O cards while providing the real-time data link to the 800xA servers. Operators in the central control room can view reactor temperatures, start batches, and acknowledge alarms via the 800xA interface, all facilitated by this module.
• Power Plant Auxiliary System Control (BOP): Controlling the boiler feedwater system, an S500 controller with this module acts as a specialized subsystem controller. It executes local logic for pump sequencing while the 500PSM02 seamlessly integrates all data (pressures, flows, valve positions) into the plant-wide 800xA supervisory system for the unit operator.
• Water Treatment Plant Filter Control: Multiple S500 controllers, each with a 500PSM02, manage individual filter beds. The modules provide local power and enable the controllers to communicate over the 800xA network, allowing for centralized SCADA visualization, historical trending, and coordinated backwash sequences from a main control room.

Comparison with Competing Products

The ABB 500PSM02 is a unique, ecosystem-specific component. Its function is analogous to combining a power supply module and a communication processor module in other PLC systems, such as a Siemens S7-400 PS407 power supply paired with a CP 443-1 communication processor. However, in the ABB architecture, these functions are deeply integrated into one unit optimized for the 800xA network. Compared to using a standard S500 power supply and a separate communication interface, the 500PSM02 offers a cleaner, more compact, and factory-tested solution. Its primary competitors are other integrated power/communication modules within competing DCS platforms (e.g., Emerson, Honeywell). Its key advantage is the guaranteed performance and single-vendor support within the ABB 800xA ecosystem.

Selection Suggestions and Precautions

• Selection Suggestion: Select the ABB 500PSM02 1MRB150015R1 when configuring an S500 (AC 800M) controller to be a node within a System 800xA architecture. It is the designated module for this integrated role and is essential for new 800xA extensions or upgrades.
• Precautions:
  1. Input Voltage Specification: The suffix code (e.g., AZ:C) critically defines the acceptable input voltage (e.g., 120V AC, 230V AC). Ordering the wrong variant can result in immediate damage upon power-up. Verify this against your plant’s available auxiliary power.
  2. Redundancy Planning: If high availability is required, you must plan for and purchase a second 500PSM02 module and the necessary redundancy cabling and configuration from the start. It cannot be added as an afterthought easily.
  3. Network Infrastructure: The module connects to the 800xA network, which requires specific switches (often Cisco Stratix managed switches configured for FTE). Ensure the surrounding network infrastructure is designed and configured to ABB’s specifications for reliable communication.
  4. Firmware and Software Compatibility: The module’s firmware must be compatible with the version of the 800xA system software and the S500 controller firmware. Always check the compatibility matrix before installation or replacement to avoid integration issues.
