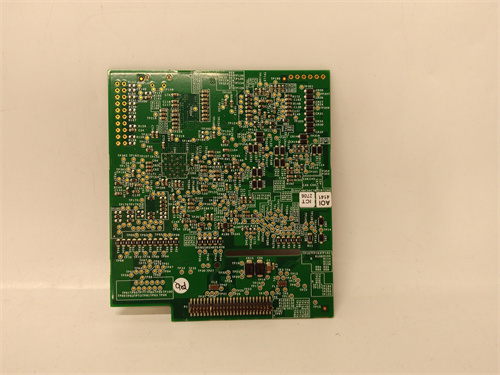

ABB 3HNA023093-001

Description

Product Description

The ABB 3HNA023093-001 is a specialized Robot Axis Computer Board or Servo Drive Module from ABB’s industrial robotics division, specifically designed for their IRB series of robots. This module is a critical component within the robot’s motion control system, functioning as the dedicated controller for one or more of the robot’s servo axes. The primary role of the ABB 3HNA023093-001 is to execute high-precision, real-time control algorithms for motor position, speed, and torque. It interfaces with the robot’s main controller (the main computer board), receives motion commands, and directly drives the power stages (inverters) that control the servo motors at the robot joints. The performance and reliability of this axis computer are fundamental to the robot’s accuracy, repeatability, and dynamic response. The 3HNA023093-001 represents the sophisticated, distributed intelligence that enables complex robotic motion.

Product Parameters

• Manufacturer/Brand: ABB Robotics
• Product Series: Part of the drive system for specific IRB robot models (e.g., IRB 6600, IRB 7600, etc.)
• Module Type: Axis Computer Board / Servo Drive Module
• Primary Function: Real-time servo control for one or more robot axes (joints).
• Control Features: Executes current control, speed control, and position control loops for brushless AC servo motors.
• Communication: Interfaces with the robot’s main controller via a high-speed deterministic bus (e.g., DriveBus or similar ABB proprietary network).
• Motor Feedback: Interfaces with high-resolution resolvers or encoders on the servo motor for closed-loop control.
• Power Stage Interface: Provides controlled PWM (Pulse Width Modulation) signals to the IGBT-based power modules that supply current to the motor windings.
• Safety Functions: Integrates with the robot’s overall safety system, monitoring for faults and enabling Safe Torque Off (STO) functionality.
• Compatibility: Specific to certain robot types, generations, and axis assignments. Must be matched exactly to the robot model and the axis it controls.

Advantages and Features

• High-Performance Motion Control: The ABB 3HNA023093-001 is optimized for the demanding requirements of industrial robotics, providing the fast processing and precise control necessary for smooth, accurate, and high-speed motion.
• Distributed Control Architecture: This modular approach improves system reliability and serviceability. A failure in one axis computer typically only affects one joint, and the module can be replaced individually.
• Tight Integration with ABB Robotics System: As a genuine ABB component, it is perfectly matched to the robot’s mechanical design, motor characteristics, and system software, ensuring optimal performance and straightforward configuration.
• Advanced Diagnostics: The module provides detailed diagnostic information accessible through ABB’s robot service tools (e.g., RobotStudio, FlexPendant), aiding in predictive maintenance and rapid troubleshooting of axis-related faults.
• Proven Reliability in Demanding Environments: Designed for the continuous operation, vibration, and thermal cycles experienced in welding, painting, material handling, and assembly applications.

Application Cases in Key Fields

• Automotive Body Shop (Spot Welding): In an IRB 7600 welding robot, the 3HNA023093-001 module controlling the wrist axes ensures precise and repeatable positioning of the heavy welding gun, which is critical for weld quality and cycle time.
• Painting and Dispensing: For a painting robot, the smooth and precise motion provided by this axis computer is essential for achieving a consistent coating thickness and finish without drips or streaks.
• Machine Tending: In a cell where a robot loads/unloads CNC machines, the module’s reliable control ensures fast, accurate, and collision-free movements for handling parts.
• Palletizing and Packaging: Controls the high-speed, repetitive movements of large robots used for stacking boxes or bags, where reliability and uptime are paramount.

Comparisons with Competing Products

• Vs. Fanuc Servo Amplifier (e.g., A06B-6130-H002): Fanuc, as a major competitor, uses integrated servo amplifiers. The ABB 3HNA023093-001 represents ABB’s architecture, often with a more distinct separation between the axis computer (control intelligence) and the power stage. The choice is dictated by the robot brand (ABB vs. Fanuc).
• Vs. KUKA KSD (KUKA Servo Drive): KUKA’s system is another integrated drive approach. The ABB module competes on the overall performance of the robot system, serviceability, and the ecosystem (RobotStudio programming).
• Vs. Generic Industrial Servo Drive: A standard servo drive from Bosch Rexroth or Yaskawa cannot replace the 3HNA023093-001. It lacks the specific firmware, communication protocol, safety integration, and mechanical/thermal design required for direct integration into an ABB robot arm.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Exact Robot and Axis Identification: This part is highly specific. You must identify the exact robot model (e.g., IRB 6700-200/2.60), the robot’s serial number, and the specific axis (e.g., axis 3, the lower arm) the failed module controls.
  2. Source from Authorized Robotics Channels: Purchase only from ABB Robotics or an authorized robotics distributor. The module must be flashed with the correct firmware for your specific robot and software version.
  3. Consider Service Exchange: For critical downtime situations, inquire about an advanced exchange (or “spine”) program where a tested module is shipped immediately upon returning the failed one.
• Precautions:
  1. High Voltage and Mechanical Hazard: Robot controllers contain lethal DC bus voltages (~600V). Replacement must only be performed by qualified robotics technicians following strict lockout/tagout procedures for both electrical and mechanical energy (secure the robot arm).
  2. ESD Sensitivity: Handle the board as a highly sensitive electronic component using full ESD protection.
  3. Calibration Required: After replacing an axis computer, the robot will typically require a mastering/calibration procedure (updating revolution counters) to relearn the precise mechanical relationship between the motor encoder and the arm position. This is a critical step for restoring accuracy.
  4. Software/Firmware Sync: The new 3HNA023093-001 module must have its firmware updated or verified to match the robot’s system software. This is done using ABB service tools. A mismatch will cause communication errors.
