ABB 3HAC6157-1

Description

Product Description

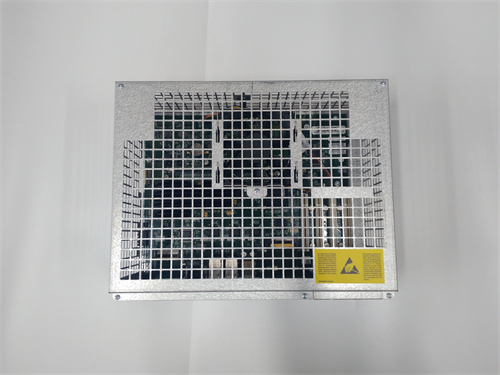

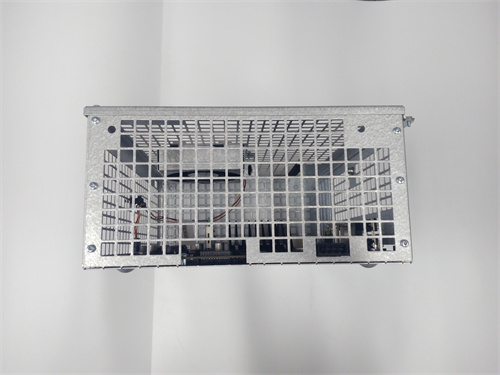

The ABB 3HAC6157-1 is a critical servo drive module designed for ABB’s industrial robot controllers, such as those in the IRC5 or S4C+ families. This unit is a key component within the drive rack, responsible for converting the control signals from the main computer board into the high-power electrical currents needed to precisely drive and control a specific axis motor of an industrial robot. Essentially, the 3HAC6157-1 acts as the “muscle” for a single robot joint, executing motion commands with accuracy and speed. Maintaining a functional ABB 3HAC6157-1 drive is essential for the smooth, reliable, and precise operation of the entire robotic system.

Technical Parameters

• Device Type: Single-axis Servo Drive Unit / Servo Amplifier.
• Manufacturer: ABB Robotics.
• Compatible Systems: Designed for specific generations of ABB robot controllers (e.g., for IRB 6600, IRB 7600 with IRC5 controller, or older S4C+ systems).
• Function: Drives one robot axis motor (e.g., Axis 1, 2, 3…). Multiple identical or similar drives are used in a controller to drive all robot axes.
• Input Power: Receives a high-voltage DC bus supply (typically ~600-800 V DC) from the controller’s main power supply unit.
• Control Interface: Receives low-voltage control signals (torque reference) via a high-speed serial link or parallel bus from the controller’s main computer.
• Output Power: Delivers controlled, pulsed (PWM) AC power to the connected servo motor.
• Protections: Includes overcurrent, overtemperature, short-circuit, and ground fault protection.
• Communication: Part of the internal drive system communication network within the controller.
• Status Indication: LED indicators for power, status, and errors.

Advantages and Features

• High Precision and Dynamic Performance: The 3HAC6157-1 is engineered to provide the precise current and voltage required for the exacting motion control of ABB robots, enabling high speed, repeatability, and path accuracy.
• Optimized for ABB Robotics Ecosystem: This drive is specifically designed and tuned to work seamlessly with ABB’s servo motors, gearboxes, and feedback systems, ensuring optimal performance and longevity of the mechanical unit.
• Integrated Diagnostics and Safety: The drive contains extensive self-diagnostics and is integrated into the controller’s safety system. It can report faults and participate in safe torque off (STO) functions.
• Modular and Service-Friendly Design: As a modular component within the drive rack, a faulty ABB 3HAC6157-1 unit can be identified and replaced relatively efficiently, minimizing robot downtime.
• Proven Industrial Reliability: Built to withstand the electrical noise, vibration, and thermal cycles of continuous industrial operation in manufacturing environments.

Application Cases in Various Fields

• Automotive Manufacturing: Driving robot axes for spot welding, material handling, painting, and assembly in car production lines.
• Metal Fabrication: Controlling robots for arc welding, cutting, and milling applications requiring precise path following.
• General Industry (Plastics, Packaging): Powering robots for machine tending, palletizing, and dispensing tasks.
• Foundries and Die Casting: Operating robots for die casting, trimming, and forging in harsh, high-temperature environments.

Comparison with Competing Products

The ABB 3HAC6157-1 is part of a closed, proprietary robotic system. Its direct “competitors” are servo drives from other industrial robot OEMs like KUKA, Fanuc, or Yaskawa (Motoman). Comparisons are largely at the system level:

• System Integration: The 3HAC6157-1 is inseparable from the ABB controller architecture. Its advantage is flawless integration and performance optimization within that system, unlike universal third-party drives which are not compatible.
• Performance: ABB’s drive technology is competitive with top-tier robot manufacturers, focusing on smooth motion, high dynamics, and energy efficiency.
• Serviceability: ABB’s modular design for components like the 3HAC6157-1 is a key service feature, allowing for targeted repairs which can be more cost-effective than replacing an entire drive rack.

Selection Suggestions and Precautions

1. Exact Part Number Verification: This is critical. The 3HAC6157-1 must be the exact part number specified for the robot model, controller type, and axis position. Using an incorrect drive can cause damage or unsafe operation.
2. Professional Diagnosis Required: A failure of the ABB 3HAC6157-1 is often a symptom. A qualified technician must diagnose the root cause (e.g., motor fault, feedback failure, mechanical binding, power supply issue) before replacement to prevent immediate failure of the new unit.
3. High-Voltage Hazard: Servo drives operate with lethal DC bus voltages. Replacement must be performed by trained personnel following strict lock-out/tag-out (LOTO) and safety procedures after fully discharging the DC bus capacitors.
4. Controller Configuration: After replacing a drive unit, the robot controller often requires specific calibration or configuration procedures to recognize and integrate the new 3HAC6157-1 module. This requires service software (e.g., RobotStudio) and access rights.
5. Source from Reputable Suppliers: Due to the critical nature and cost, purchase genuine ABB or certified remanufactured drives from authorized channels to ensure quality, compatibility, and warranty support.
