ABB 3HAB9271-1/01B | Robot I/O Module, In Stock, Fast Shipping

Description

Product Introduction

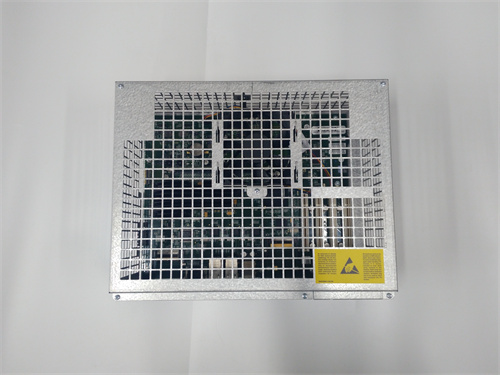

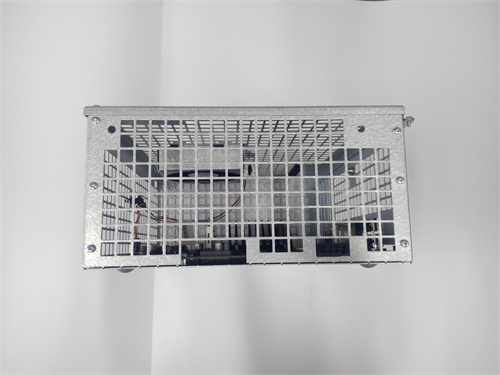

The ABB 3HAB9271-1/01B is an I/O module designed for the ABB S4C and S4C+ series industrial robot controllers. This module provides discrete input and output interfacing between the robot controller and peripheral equipment such as grippers, conveyors, safety devices, and external tooling. It mounts directly into the robot controller rack and communicates with the main CPU via the controller’s internal backplane.

The S4C and S4C+ controller platforms were ABB’s flagship robotic control systems for over a decade, and thousands remain in operation today in automotive, metal fabrication, packaging, and general manufacturing applications. As these controllers reach end-of-life status, original replacement modules such as the 3HAB9271-1/01B have become increasingly difficult to source. For facilities operating ABB robots with S4C or S4C+ controllers, maintaining a spare I/O module is essential to avoid extended downtime when failures occur.

Key Technical Specifications

Key Selling Points & Differentiators

• Direct S4C/S4C+ Replacement: Designed specifically for ABB S4C and S4C+ robot controllers. Drop-in replacement for failed units with the same part number. No configuration changes required when replacing identical revision.
• Legacy System Support: As ABB has moved to newer controller platforms (IRC5, OmniCore), original S4C components have been discontinued. We maintain inventory specifically to support plants still operating these legacy robots.
• Factory-Sealed Authenticity: Each unit undergoes visual inspection for ABB OEM markings, serial number traceability, and factory packaging verification. We do not sell refurbished boards with unknown repair history.
• Rigorous Testing: We test every 3HAB9271-1/01B on a live ABB S4C or S4C+ test rack, verifying backplane communication, I/O channel functionality, and proper handshake with the robot controller CPU.
• Critical Spare Availability: For robot cells with no planned upgrade path, securing spares for essential components like this I/O module can mean the difference between a same-day repair and weeks of downtime waiting for replacement parts.

Frequently Asked Questions (FAQ)

Q: Which ABB robot controllers is this module compatible with?
The 3HAB9271-1/01B is compatible with ABB S4C and S4C+ robot controllers. It does not work with S4 (non-C) controllers, IRC5, or OmniCore platforms. If you have an older S4 controller, you need a different I/O module. If you have IRC5, this module will not physically fit in the controller rack.

Q: Is this module discontinued?
Yes. ABB has discontinued the S4C and S4C+ controller platforms and all associated replacement parts. The 3HAB9271-1/01B is no longer manufactured. Availability is limited to new surplus and tested used inventory. If you are operating S4C or S4C+ robots, we recommend securing spares while stock remains available.

Q: What is the difference between the 3HAB9271-1/01B and the 3HAB9271-1/01A?
The /01B revision represents a later hardware revision with minor component updates and improved manufacturing processes. The /01B is backward-compatible and can replace any earlier revision (including /01A) without modification. If your system currently uses a /01A module, the /01B is a direct drop-in replacement.

Q: Does this module require configuration in the robot software?
The module is recognized automatically by the S4C/S4C+ controller. However, I/O mapping and signal configuration are defined in the robot program or system parameters. When replacing a failed module with the same part number and revision, the existing I/O configuration remains valid. No reprogramming is required.

Q: Can I hot-swap this module in a running robot controller?
No. The S4C and S4C+ controllers do not support hot-swap of I/O modules. The controller must be powered down before removing or inserting any module. Attempting to remove or install a module with power applied can damage the module, the backplane, or the controller CPU, and may corrupt the robot program or system parameters.

Q: What are common failure modes for this module?
In our experience, the most common failures are:

• Failed input channels due to field wiring shorts or overvoltage events
• Failed output channels from solenoid or valve coil back-EMF
• Corrosion on edge connectors from high-humidity environments
• Component failure from age-related capacitor degradation

We recommend installing surge suppression on inductive loads and keeping the controller cabinet clean and dry to extend module life.

Q: What testing do you perform before shipping?
We test every 3HAB9271-1/01B on a live ABB S4C or S4C+ test rack. Our test procedure includes:

• Visual inspection for physical damage, corrosion, or previous repairs
• Edge connector cleaning and inspection
• Backplane communication verification
• Input channel testing (all channels cycled with simulated field signals)
• Output channel testing (all channels toggled with load simulation)
• 24-hour continuous power-on soak test
• Final functional test before packaging

A test report with channel mapping and test results is included with each shipment.
