ABB 3BSE076940R1 PM862K01 AC 800M

Description

Product Description

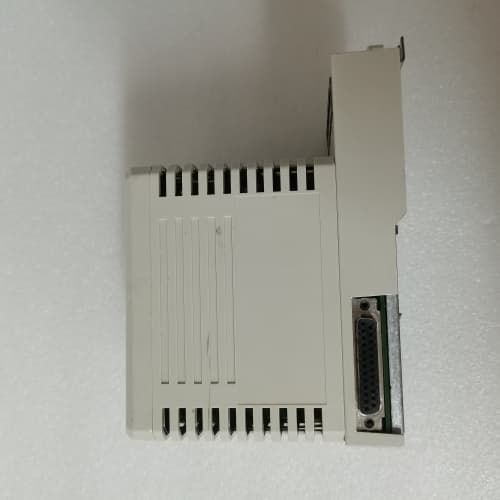

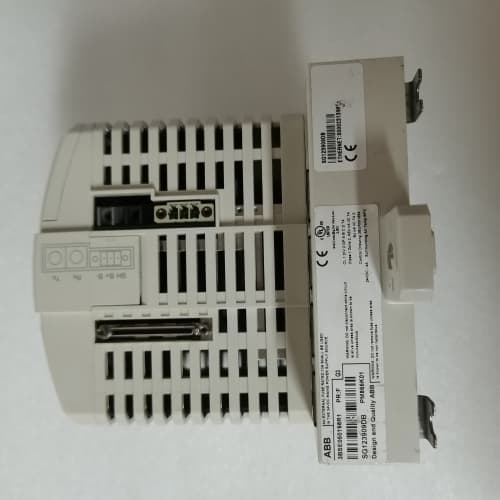

The ABB 3BSE076940R1 PM862K01 is a high-performance controller unit belonging to the acclaimed AC 800M series, which forms the core of ABB’s IndustrialIT and Ability System 800xA automation systems. This particular model, the PM862K01, is engineered for demanding control applications that require substantial processing power, extensive memory, and high reliability. It serves as the central brain for complex automation tasks, executing logic, sequential, and regulatory control with precision. The robustness and scalability of the ABB 3BSE076940R1 PM862K01 make it a cornerstone for modern industrial control architectures, seamlessly integrating with I/O systems and higher-level supervisory networks.

Product Parameters

• Processor: Powerful CPU optimized for deterministic real-time control.
• Memory: Significant user memory capacity for large and complex application programs.
• Communication Interfaces: Features multiple ports, typically including Ethernet (for peer-to-peer, S800 I/O, and engineering), serial ports, and support for various fieldbus masters via communication modules.
• Redundancy: Supports full hot-swappable controller redundancy (when used in pairs with appropriate synchronization modules) for mission-critical applications with zero switchover time.
• Operating Temperature: Designed for industrial environments with a wide operating temperature range.
• Certifications: Complies with key industrial standards for EMC, safety, and hazardous locations (e.g., ATEX, IECEx).
• Firmware: Part of the AC 800M family, programmable with Control Builder M engineering tool.

Advantages and Features

• High Performance & Scalability: Delivers fast scan times and can handle large I/O counts, making the ABB PM862K01 suitable from medium to very large applications.
• Unmatched Integration: Deeply integrated into ABB’s System 800xA, providing not just control but also seamless information management, asset optimization, and collaborative production management.
• Robust Redundancy: Its true hot-swap redundancy capability ensures maximum availability and fault tolerance, a critical feature for continuous process industries.
• Future-Proof Platform: The AC 800M architecture is long-lived and backward compatible, protecting investment and simplifying future expansions.
• Cybersecurity: Includes robust security features to protect the control system from unauthorized access, a vital consideration in today’s connected industrial landscape.

Application Cases in Application Fields

• Chemical & Pharmaceutical: Manages batch processes, recipe control, and safety interlocks in continuous production, ensuring repeatability and compliance.
• Oil & Gas: Acts as the main safety and process controller for upstream platforms, pipeline compressor stations, and refinery units, often deployed in redundant configurations.
• Power Generation: Controls boiler management, turbine sequencing, and balance-of-plant systems in thermal and renewable power plants.
• Water & Wastewater: Supervises complex treatment processes, pump station networks, and distribution systems for efficient resource management.
• Pulp & Paper: Coordinates distributed drives, web handling, and quality control loops across large production machines.

Comparisons with Competing Products

Compared to competitors like Siemens SIMATIC S7-1500 or Rockwell ControlLogix, the ABB 3BSE076940R1 PM862K01 holds a distinct position:

• System vs. Controller: While competitors offer powerful standalone controllers, the ABB AC 800M PM862K01 excels as an integral component of the comprehensive System 800xA, offering superior levels of system-wide information and operational integration.
• Process Focus: It is particularly strong in large-scale, redundant process automation applications, whereas competing lines may have a broader spread across discrete and hybrid manufacturing.
• Engineering Environment: ABB’s Control Builder M is a unified environment for configuration, programming, and documentation, which is highly appreciated in complex process projects but may have a different learning curve compared to more widespread platforms.

Selection Suggestions and Precautions

• Selection Advice: Choose the ABB PM862K01 when you are implementing or expanding a System 800xA architecture, require high availability with redundancy, or are engaged in large-scale process industry projects. Assess the required I/O count, communication protocols, and need for specialized libraries (e.g., for safety).
• Precautions:
  1. Ensure compatibility with existing S800 I/O modules or plan for the necessary communication interfaces.
  2. Factor in the need for proprietary engineering software (Control Builder M) and relevant licenses.
  3. For redundancy, remember to purchase the controller pair and the necessary synchronization module (S800 I/O requires a redundancy connection module as well).
  4. Always source the ABB 3BSE076940R1 PM862K01 and its components from authorized distributors to guarantee authenticity, firmware compatibility, and manufacturer support.
  5. Proper planning for firmware version management across the controller and related modules is crucial for system stability.
