ABB 3BHE046836R0101 GFD563A101

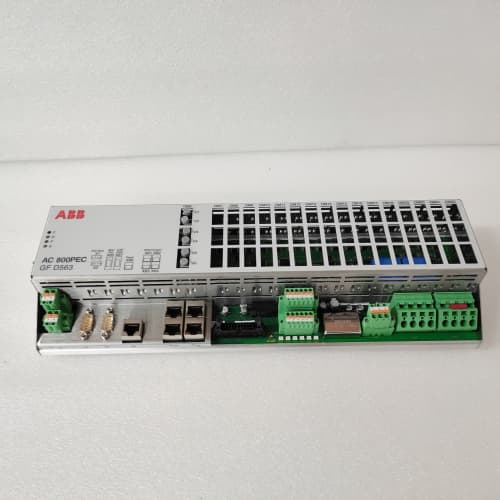

ABB 3BHE046836R0101 GFD563A101 is a high-precision central excitation controller module, engineered to regulate generator excitation systems, optimize reactive power, and enhance grid stability in power generation and industrial automation.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB 3BHE046836R0101 GFD563A101 is a high-precision central excitation controller module, engineered to regulate generator excitation systems, optimize reactive power, and enhance grid stability in power generation and industrial automation. ABB 3BHE046836R0101 GFD563A101 integrates dual PROFIBUS DP ports, real-time voltage regulation, and advanced stability control algorithms, enabling seamless coordination with ABB PLC/DCS and third-party power equipment. ABB 3BHE046836R0101 GFD563A101 delivers precise excitation current adjustment to maintain generator terminal voltage stability, reducing grid fluctuations and improving energy efficiency. ABB 3BHE046836R0101 GFD563A101 features a rugged design with wide temperature tolerance and redundant communication, ensuring reliable operation in harsh industrial and power plant environments. Whether deployed in thermal power, hydropower, or industrial cogeneration systems, it enhances system dynamic response and minimizes downtime, making it a cornerstone of modern power control architectures.

Technical Parameters ABB 3BHE046836R0101 GFD563A101

Parameter Item Parameter Value
Product Model ABB 3BHE046836R0101 GFD563A101
Product Series ABB GFD Series Excitation Controller
Module Type Central Excitation Controller Module
Core Functions Generator excitation control, voltage regulation, reactive power optimization, stability enhancement, redundant communication
Power Supply 24 V DC
Communication Interfaces 2 × PROFIBUS DP ports (line redundancy); transmission rate 9.6 kbps–12 Mbps
Control Accuracy Voltage regulation accuracy ±0.2%
Operating Temperature -20℃ to +60℃
Storage Temperature -40℃ to +85℃
Humidity Range 5%–95% RH (non-condensing)
Weight ~0.7 kg
Dimensions 120 mm × 80 mm × 60 mm (L×W×H)
Protection Level IP20 (front panel)
Certifications CE compliant; 1-year manufacturer warranty

Advantages and Features ABB 3BHE046836R0101 GFD563A101

  1. Precise Voltage & Reactive Power Control: ABB 3BHE046836R0101 GFD563A101 achieves ±0.2% voltage regulation accuracy, optimizing reactive power output to boost grid stability and energy efficiency by up to 3%.
  2. Redundant Communication for High Availability: Dual PROFIBUS DP ports with line redundancy ensure uninterrupted data transmission, minimizing communication-related downtime in critical power systems.
  3. Rugged Environmental Adaptability: Operates reliably in -20℃ to +60℃ and 5%–95% RH (non-condensing), with robust design to withstand vibration and electrical noise in power plant environments.
  4. Seamless System Integration: Compatible with ABB AC 800M DCS and third-party PLCs via PROFIBUS, enabling plug-and-play integration into existing power control networks.
  5. Intelligent Diagnostics & Maintenance: Built-in self-monitoring and fault alarm functions simplify troubleshooting, reducing maintenance time and operational costs.

Application Cases

  1. Thermal Power Plant Excitation Control: A 600 MW thermal power plant integrated ABB 3BHE046836R0101 GFD563A101 to control its generator excitation system. The module’s precise voltage regulation reduced grid fluctuations by 40% and improved power generation efficiency by 2.5%.
  2. Hydropower Station Stability Enhancement: A large hydropower station deployed ABB 3BHE046836R0101 GFD563A101 to optimize reactive power output. Its dynamic stability control cut frequency deviation events by 35% and enhanced grid support during peak loads.
  3. Industrial Cogeneration System: A petrochemical plant used ABB 3BHE046836R0101 GFD563A101 in its cogeneration unit, enabling seamless coordination between the generator and plant grid. This integration reduced energy waste by 15% and improved on-site power supply reliability.

Competitor Comparison

Comparison Item ABB 3BHE046836R0101 GFD563A101 Siemens 6RA80 Series Excitation Controller Schneider Electric Altivar Process Excitation Module
Voltage Regulation Accuracy ±0.2% ±0.5% ±0.3%
Communication Redundancy Dual PROFIBUS DP ports Single PROFIBUS DP No native redundancy (requires external module)
Operating Temperature -20℃ to +60℃ -10℃ to +55℃ 0℃ to +50℃
Key Advantage High accuracy, redundant communication, ABB DCS compatibility Mature ecosystem, wide industry adoption Cost-effective, user-friendly interface
Environmental Adaptability Superior for harsh power plant environments Suitable for general industrial applications Best for controlled indoor settings

Selection Suggestions

  1. Choose ABB 3BHE046836R0101 GFD563A101 for power generation systems (thermal, hydropower, cogeneration) requiring ±0.2% voltage regulation accuracy and redundant communication.
  2. Opt for ABB 3BHE046836R0101 GFD563A101 in harsh environments (-20℃ to +60℃) where robust operation and minimal downtime are critical.
  3. Select ABB 3BHE046836R0101 GFD563A101 for integration with ABB AC 800M DCS or PROFIBUS-based power control networks to ensure seamless data exchange and system coordination.
  4. Use ABB 3BHE046836R0101 GFD563A101 in grid-connected systems to enhance dynamic stability and reactive power management, reducing voltage/frequency fluctuations.

Precautions

  1. Ensure the 24 V DC power supply is stable and properly isolated to prevent damage to ABB 3BHE046836R0101 GFD563A101.
  2. Configure PROFIBUS DP redundancy correctly to maximize communication reliability in critical power control loops.
  3. Mount ABB 3BHE046836R0101 GFD563A101 in a dust-free, well-ventilated cabinet to maintain temperature within -20℃ to +60℃.
  4. Regularly verify voltage regulation accuracy and communication link status to detect early degradation or faults.
  5. Use shielded cables for PROFIBUS connections to minimize electromagnetic interference in industrial power environments.
