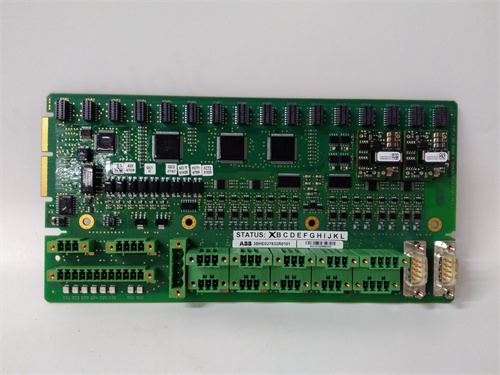

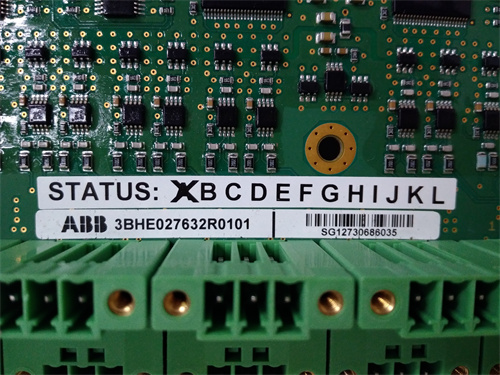

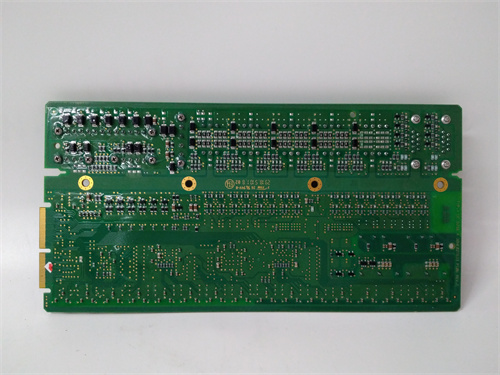

ABB 3BHE027632R0101

Description

Product Description

The ABB 3BHE027632R0101 is a high-reliability Power Supply Module designed for critical automation and control systems, most likely within ABB’s System 800xA or AC 800M controller families. This module functions as a regulated and isolated DC power source, converting raw input power (typically from a plant’s 24V DC, 48V DC, or 110/125V DC battery-backed supply) into the clean and precise voltage levels required by sensitive controller CPUs, communication modules, and I/O electronics. The 3BHE027632R0101 is engineered for continuous, fault-tolerant operation, often supporting N+1 redundancy configurations to eliminate single points of failure in the power path. Its robust design and comprehensive monitoring features make it a foundational component for ensuring the overall system availability and integrity in demanding industrial environments such as power generation, oil & gas, and chemical processing plants. The reliable performance of the ABB 3BHE027632R0101 is essential for maintaining uninterrupted control system operation.

Product Parameters

• Module Type: System Power Supply Module
• Compatible System: ABB System 800xA, AC 800M Controller Racks
• Input Voltage: Wide-range DC input (specific range defined by variant, e.g., 24-48V DC or 88-150V DC).
• Output Voltages: Provides multiple isolated DC outputs (e.g., +5V, ±12V, +24V) for the controller backplane and modules.
• Output Power: Rated for a specific wattage (e.g., 60W, 120W, 240W) to support a fully or partially populated controller rack.
• Redundancy Support: Designed for parallel operation in redundant (N+1) configurations with load sharing and fault tolerance.
• Hot-Swappable: Allows for replacement without powering down the entire controller rack, supporting online maintenance.
• Protections: Includes overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection (SCP), and overtemperature protection (OTP).
• Status Indicators: Comprehensive LED indicators for Input Power OK, Output Power OK, and Fault conditions.
• Communication: May include a communication link to report its status to the controller for system-level diagnostics.
• Mounting: Installs into a dedicated power supply slot in the controller rack.

Advantages and Features

• High Availability and Redundancy: The support for N+1 redundancy is a key feature of the ABB 3BHE027632R0101. This ensures continuous system operation even if one power supply fails, which is critical for 24/7 processes.
• Exceptional Reliability and Quality: Manufactured to ABB’s stringent industrial standards, it offers high mean time between failures (MTBF) and stable voltage regulation, protecting sensitive control electronics from power anomalies.
• Advanced Diagnostics and Monitoring: Real-time status LEDs and potential communication to the control system provide clear health information, enabling proactive maintenance and rapid fault identification.
• Hot-Swap Capability: The ability to replace the module without system downtime is essential for maintaining process availability during maintenance activities.
• Seamless System Integration: As a genuine ABB component, it is mechanically and electrically designed for perfect compatibility with the designated controller rack, ensuring proper connector mating, airflow, and load sharing in redundant setups.

Application Cases in Various Fields

• Power Plant DCS (Distributed Control System): Providing redundant power to AC 800M controller racks managing boiler control, turbine sequencing, and balance-of-plant systems.
• Oil & Gas Offshore Platforms: Powering the safety and process control systems in harsh environments where system uptime is paramount for safety and production.
• Chemical Plant Automation: Ensuring uninterrupted power to batch and continuous process controllers where a power supply failure could lead to a process deviation or shutdown.
• Pulp & Paper Mill Control Systems: Supporting the control racks that manage large, continuous paper machines where downtime is extremely costly.

Comparisons with Competing Products

1. Vs. Generic Industrial Power Supplies: Standard DIN-rail or rack-mount power supplies lack the specific form factor, redundancy communication logic, hot-swap design, and system-level integration and diagnostics required for a high-availability controller system. The 3BHE027632R0101 is part of an engineered solution.
2. Vs. Other DCS/Power Supply Vendor Modules (e.g., Emerson, Siemens, Honeywell): Competing DCS manufacturers have their own proprietary power modules. The ABB 3BHE027632R0101 is optimized for ABB’s 800xA/AC 800M architecture. Its advantages include guaranteed compatibility, optimized airflow and thermal design for the rack, and support within ABB’s engineering and diagnostic tools.
3. Vs. Uninterruptible Power Supply (UPS): A UPS provides backup during AC power loss. The 3BHE027632R0101 is the primary DC-DC converter and regulator. They are complementary components; the UPS feeds clean AC or DC to the input of power supplies like the 3BHE027632R0101.
4. Key Differentiator: Its role as a managed, redundant, and hot-swappable power subsystem integral to the control system’s high-availability design, rather than just a simple voltage converter.

Selection Suggestions and Precautions

1. Verify Input Voltage Requirement: This is the most critical step. Confirm the available plant DC supply voltage (e.g., 24V DC, 125V DC) and select the 3BHE027632R0101 variant with the matching input range. An incorrect match will prevent operation.
2. Calculate Total Power Load: Sum the power consumption of all modules planned for the controller rack (CPU, I/O, comms). Ensure the power supply’s wattage rating has adequate headroom (typically 20-30% spare capacity). An undersized unit will overheat and fail.
3. Implement Redundancy for Critical Loops: For any application where control system availability is crucial, always install power supplies in a redundant (N+1) pair. Use the official ABB interconnection cable between the two units.
4. Follow Installation Guidelines: Adhere strictly to the installation manual for mounting, torque specifications on connectors, and airflow requirements. Poor installation can lead to overheating or connection failures.
5. Monitor Status Indicators: Incorporate the status LEDs of the ABB 3BHE027632R0101 into routine operator rounds or system health checks. A fault LED indicates the need for immediate planned replacement of the redundant unit.
6. Spare Parts Strategy: Always have a spare power supply module of the correct input voltage on hand. The hot-swap feature is only beneficial if a replacement is readily available.
7. Safety During Hot Swap: Even when hot-swapping, follow the manufacturer’s specific procedure to safely isolate and remove the faulty module without causing arcs or disturbing the adjacent unit.
8. Source from Authorized Distributors: Purchase this critical component from ABB or authorized channels to guarantee authenticity, correct specifications, and full technical support.
