ABB 3BHB003689 | Medium Voltage Drive Component – 690V

Description

Product Introduction

That mining operation in Australia—the one with the 5MW SAG mill driven by an ACS6000—had a drive fault last year. The mill stopped, and the maintenance crew couldn’t reset it. The fault log pointed to a short circuit in the inverter section. They opened the cabinet, and the smell was unmistakable—burnt silicon. One of the IGCTs had failed, and the 3BHB003689 gate drive board was damaged by the resulting arc flash. One 2,500 board, one 5,000 IGCT, one week of lost production.

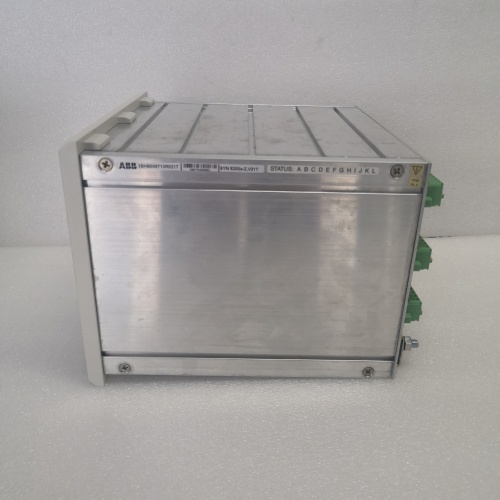

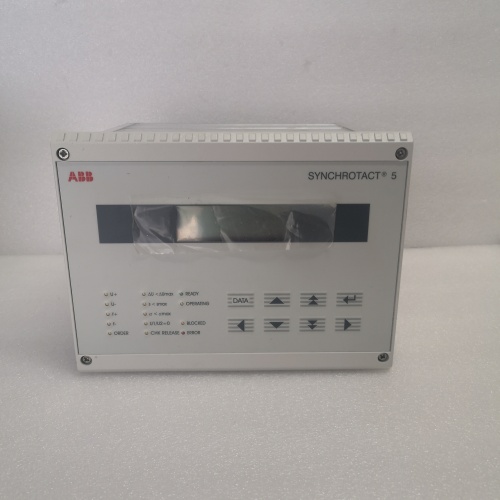

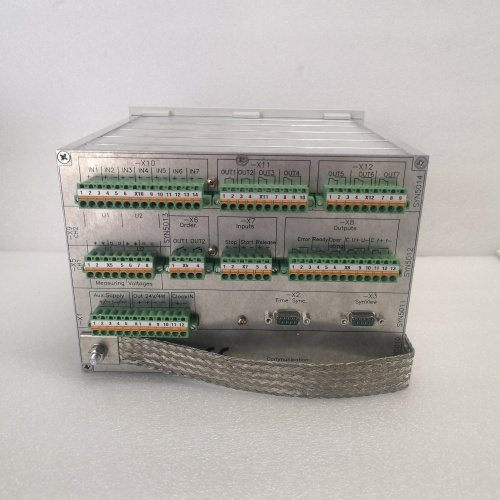

The ABB 3BHB003689 is a power interface board used in ACS6000 medium voltage drives. It’s part of the gate drive system that fires the IGCTs (Integrated Gate Commutated Thyristors) in the inverter section. The board takes low-voltage firing commands from the main control, isolates them optically, and amplifies them to drive the IGCT gates. It also monitors feedback from the power stack—voltage, current, and fault status. The 3BHB003689 is typically mounted close to the IGCTs, often on the same heatsink assembly. In a 6kV drive, you’ll find several of these boards, one per phase or per switching device.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A gate drive board gets a thorough pulse test. Here’s our process.

1. Incoming Verification
   • Match the part number: 3BHB003689. (Check for suffix—R0001 is common.)
   • Visual inspection: Look for burn marks around the output connectors. Check the PCB for conformal coating—should be even, no bubbles.
   • Inspect the fiber optic ports (if present) for damage.
   • Verify the revision sticker.
2. Power-On Self-Test
   • Install the board in a test jig with simulated IGCT loads.
   • Apply 24V DC control power.
   • Watch the “POWER” LED—should be steady.
   • Connect to the test controller, verify the board is recognized.
3. Gate Pulse Test
   • Command the test controller to generate firing pulses at 50 Hz.
   • Use an oscilloscope to measure pulses at each output.
   • Verify amplitude (20V ±2V), pulse width, and rise time.
   • Test at minimum and maximum pulse widths.
4. Peak Current Test
   • Connect a low-resistance load to simulate an IGCT gate.
   • Measure peak current—must exceed 10A.
5. Isolation Test
   • 500V megger between all firing outputs (shorted) and control ground—>10 MΩ.
   • 2500V hi-pot for 1 minute—no breakdown.
6. Fault Detection Test
   • Simulate a missing pulse condition.
   • Verify the fault is detected and reported.
   • Simulate a short circuit on an output—verify the board protects itself and reports fault.
7. Thermal Soak
   • 4 hours at 65 °C in a thermal chamber, running continuous firing pulses.
   • Monitor pulse amplitude and timing—no drift outside spec.
8. Firmware Verification
   • Read the firmware version via the test port.
   • Log it in the test report.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—pulse timing diagrams, isolation test results.

Field Replacement Pitfalls

I’ve swapped these in mines, refineries, and test labs. Here’s where people go wrong.

❗Pulse Timing
The firing pulses must be precisely aligned with the AC line voltage. If the sync signal is missing or noisy, the pulses will be wrong—the IGCTs will fire at the wrong time, causing half-wave conduction or commutation failure. Check the sync input before blaming the board.

Gate Drive Requirements
Different IGCTs need different gate drive characteristics. This board is designed for a specific range. If you’ve replaced IGCTs with a different type, the gate drive may be insufficient. Check the datasheets.

Fiber Optic Connections
If your system uses fiber optic links, those fibers are fragile. A cracked fiber or dirty connector can cause intermittent firing. Clean all connectors with alcohol and inspect with a scope.

Grounding
The gate drive board’s ground must be connected to the IGCT’s common (usually the DC negative). If there’s a ground loop, the pulses may be noisy. Use a single-point ground.

Snubber Circuit
The drive’s snubber circuit protects the IGCTs from voltage spikes. If you’ve had a failure, check the snubber components—they may be damaged too.

Nail these five, and your 3BHB003689 will fire those IGCTs for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this board was manufactured by ABB, packed in its original box, and never installed. The optocouplers have zero hours, the pulse transformers are unused, and the firmware is as shipped from the factory.

Refurbished risk in plain terms
A refurbished 3BHB003689 often comes from a decommissioned drive. It may have run for years in a hot cabinet. The optocouplers are aged—their current transfer ratio has dropped. A refurbisher tests it at room temperature with a light load and calls it good. In a real drive, with high ambient heat, it may fail to fire the IGCTs.

Real cost of a refurbished failure
If this board fails to fire an IGCT, the drive trips. On a 5MW mill, that’s thousands of dollars per hour in lost production. The cost of one outage dwarfs the price difference.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Pulse timing diagrams (oscilloscope captures).
• Isolation test results.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” boards and 25% below ABB’s current list price. That pays for the full pulse test, the 4‑hour thermal soak, and the warranty that covers replacement if an optocoupler fails.

Performance Benchmarks & Test Results

Test conditions: Test jig, simulated IGCT load, 24V DC control power, ambient 24 °C.

We keep oscilloscope captures of every pulse train—ask, and we’ll email the PDF.
