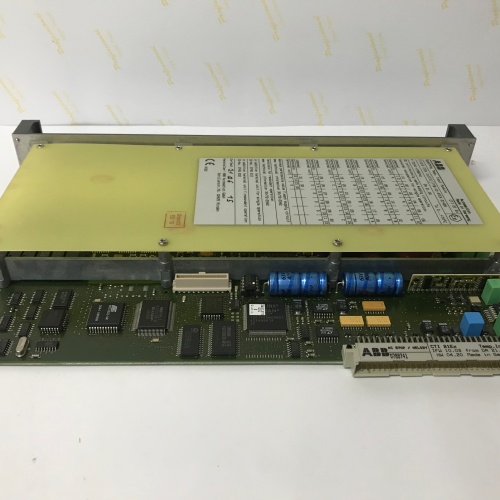

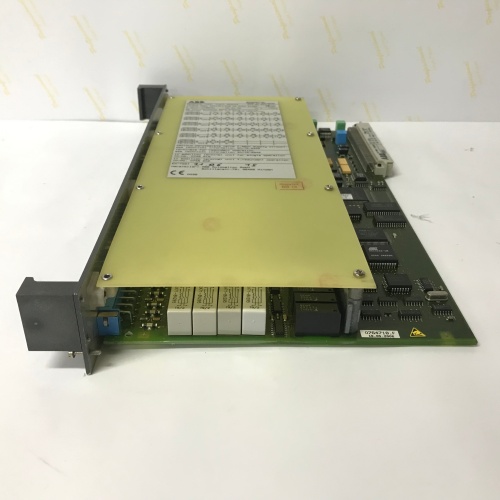

ABB 3BDH000741R1 CTI 21-P EX

Description

Product Description

The ABB 3BDH000741R1 CTI 21-P EX is a specialized intrinsically safe analog input terminal designed for the advanced connectivity and signal conditioning needs of hazardous area applications. This robust component, part of the ABB CTI 21-P EX series, serves as a critical interface point within ABB’s System 800xA or other compatible automation environments. The ABB 3BDH000741R1 CTI 21-P EX is engineered to safely connect field-mounted instruments, such as sensors and transmitters located in explosive (Ex) atmospheres, to the control system in a non-hazardous area. For comprehensive technical data and procurement,. By providing galvanic isolation and energy limitation, this terminal ensures safe and reliable signal transmission from Zone 1/21 hazardous areas, making the ABB 3BDH000741R1 CTI 21-P EX an indispensable part of safety instrumented systems and process control in critical industries.

Product Parameters

• Product Type: Intrinsically Safe Analog Input Terminal (Barrier/Isolator).
• Brand & Series: ABB, CTI 21-P EX series.
• Model: ABB 3BDH000741R1 CTI 21-P EX.
• Protection Type: Intrinsic Safety (Ex ia/ib) for connection to equipment in hazardous areas (Gas: Zone 1, Dust: Zone 21).
• Signal Type: Analog Input, typically for 4-20mA or 0-20mA two-wire transmitters.
• Channels: Likely a single-channel module for one field device.
• Field-Side Parameters: Certified for specific intrinsic safety parameters (Ui, Ii, Pi, Ci, Li) that must be matched with the connected field device’s certificate.
• System-Side Connection: Interfaces with the control system’s I/O card (e.g., ABB S800 I/O) via a backplane or terminal connection.
• Power Supply: Powered from the safe-area system side.
• Isolation: High-grade galvanic isolation between the hazardous area (field) and safe area (system).
• Mounting: Designed for DIN-rail mounting in an approved enclosure in the safe area.
• Certifications: ATEX, IECEx, and other regional explosion protection certifications.

Advantages and Features

The primary advantage of the ABB 3BDH000741R1 CTI 21-P EX is its ability to enable safe and compliant process measurement in explosive environments without requiring expensive explosion-proof enclosures for the control system. Its key features include reliable signal transmission with high accuracy and excellent noise immunity due to isolation. The terminal simplifies wiring and system design by providing a clearly defined interface between hazardous and non-hazardous areas. It offers diagnostic capabilities and is designed for high reliability and long-term stability, which are critical for safety-related loops. Its modular design allows for easy integration and replacement within the CTI 21 system.

Application Cases in Application Fields

This terminal is essential in any industry processing flammable materials. In oil & gas refineries and offshore platforms, the ABB 3BDH000741R1 CTI 21-P EX connects pressure, level, and temperature transmitters from classified areas to the DCS. In chemical and pharmaceutical plants, it interfaces with analytical sensors and flow meters located in Zones where flammable vapors or dust may be present. Within paint and coating facilities, it safely brings in signals from sensors in spray booths. The ABB 3BDH000741R1 CTI 21-P EX is also widely used in grain silos, sugar refineries, and other bulk handling facilities where combustible dust atmospheres exist.

Comparisons with Competing Products

Compared to traditional Zener diode barriers, the ABB 3BDH000741R1 CTI 21-P EX, as an active isolating repeater power supply, offers superior performance. It provides true galvanic isolation, which prevents ground loops and improves signal integrity, unlike passive Zener barriers which require a dedicated and certified ground. Against other active isolators from competitors like Pepperl+Fuchs or MTL, the ABB 3BDH000741R1 CTI 21-P EX is optimized for seamless integration with ABB’s System 800xA and S800 I/O architecture, offering easier configuration within Control Builder M and guaranteed compatibility. It represents a high-performance, system-native solution.

Selection Suggestions and Precautions

• Loop Verification (MOST CRITICAL): You must perform an intrinsic safety loop verification. The entity parameters (Uo, Io, Po, Co, Lo) of the associated safe-area equipment (e.g., the system-side isolator/card) combined with the ABB 3BDH000741R1 CTI 21-P EX must be compared with the entity parameters (Ui, Ii, Pi, Ci, Li) of the field device. The values must adhere to the standard safety rules (e.g., Ui >= Uo, Ii >= Io, Pi >= Po, Ci + Ccable <= Co, Li + Lcable <= Lo).
• Certification Matching: Ensure the ABB 3BDH000741R1 CTI 21-P EX holds the correct explosion protection certifications (ATEX, IECEx) for your plant’s geographic location and the specific hazardous area classification (Gas Group, Temperature Class).
• Installation Location: Must be installed in a safe area (Zone 2/22 or non-hazardous).
• Wiring: Use approved, certified wiring methods for the hazardous area segment. Separation of intrinsically safe and non-intrinsically safe wiring is mandatory.
• Documentation: Maintain complete documentation of the loop calculation and certificates for the entire loop (field device, cable, barrier, system interface).
