ABB 3ASC25H204 DAPU100

Description

Product Description

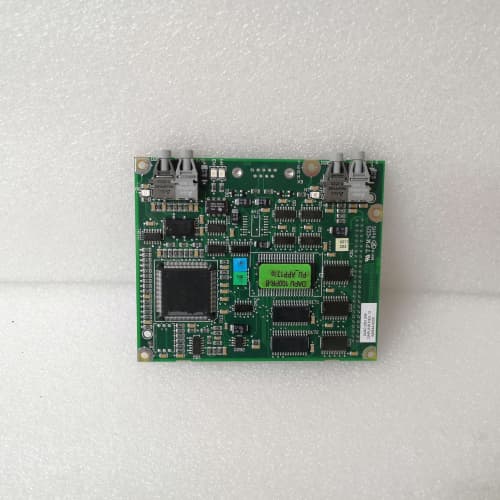

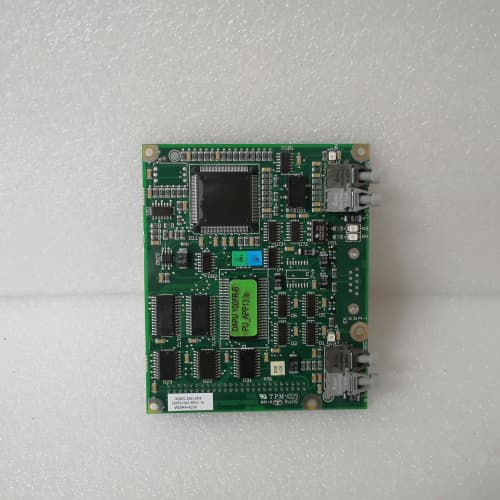

The ABB 3ASC25H204 DAPU100 is a critical digital control and interface module within an ACS800 or similar industrial drive cabinet. The part number indicates it is a Drive Application Program Unit or a key I/O and Control Board. This module serves as the localized control intelligence and interface hub, handling functions such as processing digital and analog I/O signals, executing drive application-specific logic, managing communication with the drive’s main control board, and providing interface connections for external control devices. The DAPU100 is essential for configuring the drive’s behavior for specific applications (e.g., pump, fan, conveyor control) without requiring changes to the core firmware of the main processor. The reliable operation of the ABB 3ASC25H204 board ensures that customized control sequences, safety interlocks, and peripheral device communications function correctly, making it a vital component for advanced drive system integration.

Product Parameters

• Module Type: Drive Application Program Unit / I/O & Control Interface Board
• Compatible System: ABB ACS800 series drives and potentially other related drive families.
• Primary Function: Provides application-specific programming capability, additional I/O, and interface management.
• I/O Capabilities: Typically includes digital inputs (DIs) for start/stop, digital outputs (DOs) for status, analog inputs (AIs) for speed reference, and analog outputs (AOs) for meter output.
• Processing: Contains a microcontroller capable of running custom logic (Drive Application Program) written in ABB’s application programming software (e.g., DriveWindow or similar).
• Communication Interfaces: Likely includes serial communication ports (e.g., for connection to the main control unit and potentially for external Modbus) and may support fieldbus interfaces via optional modules.
• Memory: Includes non-volatile memory for storing the application program and parameters.
• Mounting: Installs on a dedicated slot or location within the drive cabinet, connected via a backplane or harness.
• Status Indicators: LEDs for power, status, and activity.
• Power Supply: Receives low-voltage DC power from the drive’s internal power supply.

Advantages and Features

• Application Flexibility: The ABB 3ASC25H204 DAPU100 allows for deep customization of the drive’s control logic, enabling it to perform complex sequences, interlocks, and data processing tailored to the specific machine or process, beyond standard drive macros.
• Enhanced I/O and Integration: Expands the drive’s native I/O capacity, providing more points for connecting sensors, pushbuttons, and indicators, and facilitating easier integration into the overall control system without an external PLC.
• Simplified System Architecture: By embedding application logic directly within the drive cabinet, it can reduce or eliminate the need for a separate small PLC, lowering cost, complexity, and panel space.
• Seamless Drive Integration: As a genuine ABB component, it is electrically and functionally optimized for the host drive, ensuring reliable communication, proper voltage levels, and access to all necessary drive parameters and signals.
• Robust Industrial Design: Built to operate in the same challenging electrical and environmental conditions as the drive itself, ensuring high reliability.

Application Cases in Various Fields

• Water & Wastewater Pump Control: Programmed on the DAPU100 to implement custom pump sequencing, alternation logic, and dry-run protection based on analog level signals, directly within the drive cabinet.
• HVAC Fan Control: Used to create advanced control algorithms for building pressure or temperature control, processing signals from multiple sensors and coordinating multiple drives.
• Material Handling Conveyors: Implements interlocking logic, speed synchronization between conveyors, and zero-speed detection for slip monitoring.
• Industrial Mixers & Agitators: Provides custom torque limiting, batch timer control, and safety interlocks for access doors.

Comparisons with Competing Products

1. Vs. Using a Standard Drive Macro: Drives come with pre-defined application macros (e.g., PID, Torque control). The 3ASC25H204 DAPU100 offers programmable logic for applications that do not fit a standard macro, providing significantly greater flexibility.
2. Vs. External PLC for Control Logic: Using a small external PLC offers similar flexibility. The key advantage of the integrated DAPU100 is reduced hardware count, simplified wiring (signals are internal to the drive), and often tighter integration with the drive’s own diagnostics and parameters.
3. Vs. Competitor’s Drive Embedded Controllers (e.g., Siemens CU320, Danfoss FC360): Other major drive manufacturers offer similar embedded control options. The ABB DAPU100 is specific to the ABB drive ecosystem. Competition hinges on the ease of programming, available I/O, and the depth of integration with the drive’s core functions.
4. Key Differentiator: It transforms a standard variable frequency drive into a programmable, application-specific controller, blurring the line between a drive and a compact machine controller.

Selection Suggestions and Precautions

1. Confirm Drive Compatibility: Before ordering, verify that the 3ASC25H204 DAPU100 is compatible with your specific ACS800 drive model, firmware version, and hardware revision. Not all drive frames or ratings support this optional board.
2. Define Application Requirements Clearly: Document all required I/O points (type and number), the control sequence, and any communication needs. Ensure the DAPU100‘s resources (I/O count, memory, processing speed) are sufficient.
3. Programming Skill Requirement: Utilizing this module requires knowledge of ABB’s drive application programming software and language. Ensure personnel are trained or have access to this expertise for development and troubleshooting.
4. Backup Application Program: Always create and securely store a backup of the application program loaded onto the DAPU100. This is crucial for disaster recovery or replicating the setup on another drive.
5. Consider I/O Isolation and Wiring: While integrated, the external I/O connections may still require proper isolation, shielding, and fusing as per standard industrial practice to protect the board from field-side faults.
6. Testing and Simulation: Thoroughly test the custom application program in a controlled environment or using software simulation tools (if available) before deploying it in a live process to avoid unexpected machine behavior.
7. Source from Authorized Channels: Purchase the ABB 3ASC25H204 module from ABB or authorized distributors to ensure authenticity, correct firmware, and access to technical documentation and support.
