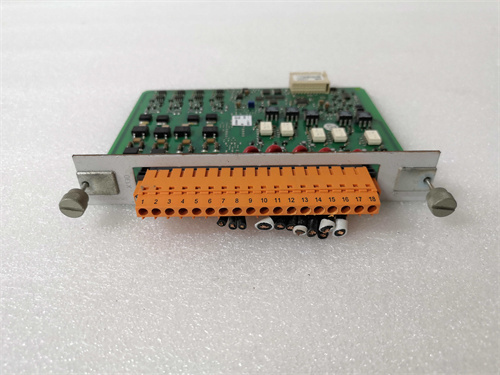

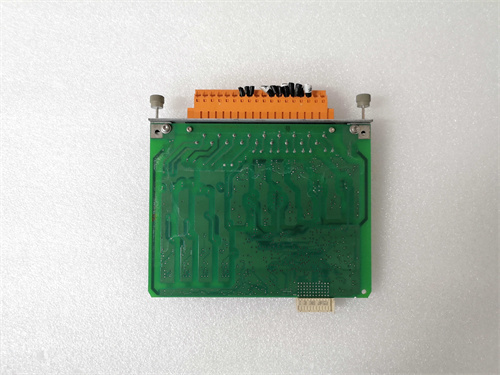

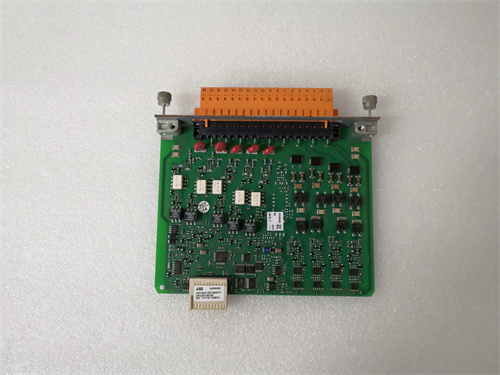

ABB 2RCA006836A0001E

Description

Product Description

The ABB 2RCA006836A0001E is a specialized system interface and communication module from ABB’s industrial automation portfolio. This module functions as a critical gateway, specifically a Profibus DP Interface for the ABB S900 I/O system, which is a versatile and rugged I/O family used in process and factory automation. Its primary role is to enable seamless integration of the S900 I/O stations into a Profibus DP network, allowing a central Profibus master (such as a Siemens, ABB, or other PLC) to remotely control and monitor a distributed set of I/O points. The ABB 2RCA006836A0001E acts as the Profibus DP slave, managing the data exchange between the high-speed Profibus network and the connected S900 analog and digital I/O modules. This facilitates a cost-effective and flexible distributed control architecture. The robust design of this interface module ensures reliable communication in harsh industrial environments. Implementing the ABB 2RCA006836A0001E is key to leveraging the simplicity and ruggedness of the S900 I/O within a standardized fieldbus network.

Product Parameters

• I/O Family: ABB S900 I/O.
• Module Type: Profibus DP Slave Interface Module.
• Fieldbus Protocol: Profibus DP (Decentralized Peripherals) conforming to EN 50170.
• Profibus Data Rate: Configurable from 9.6 kbps up to 12 Mbps, auto-baud detection.
• Connection: 9-pin D-sub connector (RS-485) for the Profibus DP network.
• I/O Connection: Interfaces with S900 I/O modules via the internal S900 backplane/bus.
• Configuration: Set via DIP switches for Profibus address and other parameters. Further configuration is done via Profibus master configuration software (e.g., Siemens STEP 7).
• Data Exchange: Provides cyclic exchange of input and output data between the Profibus master and the S900 I/O modules.
• Diagnostics: Status LEDs for power, Profibus communication activity, and system errors.
• Mounting: Installs on a DIN-rail within an S900 I/O station assembly.

Advantages and Features

• Open Standard Connectivity: Provides easy integration into any control system that supports Profibus DP, making the S900 I/O usable with a wide variety of PLCs from ABB, Siemens, Rockwell (via a gateway), and others.
• Rugged and Compact Design: The S900 system, including the ABB 2RCA006836A0001E interface, is designed for harsh industrial environments with wide temperature ranges and high immunity to noise and vibration.
• Simplified Distributed Architecture: Enables the placement of I/O close to field devices, reducing long and costly wiring runs of individual signals back to a central cabinet.
• Flexible I/O Mix: The interface module allows the S900 station to be populated with a flexible mix of analog and digital I/O modules tailored to the local process needs.
• Cost-Effective Solution: Offers a reliable and versatile remote I/O solution, often at a lower cost point than fully integrated proprietary systems.

Application Cases in Application Fields

• Factory Automation (with non-ABB PLCs): Allows a Siemens S7-300/400 PLC (as Profibus master) to control and monitor ABB S900 I/O distributed on a packaging or assembly machine.
• Process Skid Integration: Used on vendor-supplied skids (e.g., pump skids, compressor packages) equipped with S900 I/O, allowing them to be easily integrated into a plant’s main Profibus DP network.
• Water and Wastewater Treatment: Distributes S900 I/O for pump control and valve monitoring across a large treatment plant, communicating back to a central SCADA via Profibus.
• Material Handling: Connects I/O from conveyor sections and sortation units to a central Profibus-based PLC controller.

Comparisons with Competing Products

• Vs. Siemens ET 200SP Distributed I/O Station: Siemens’ own Profibus DP I/O system. The ABB 2RCA006836A0001E with S900 I/O offers a comparable distributed I/O function but from a different vendor. The choice may depend on existing plant standards, specific I/O module requirements, or cost.
• Vs. ABB’s own S800 I/O with Profibus Interface: The S800 is a more advanced, higher-density I/O system for ABB’s AC 800M. The ABB 2RCA006836A0001E with S900 represents a more economical, rugged, and simpler option, often for use with third-party PLCs or in less complex applications.
• Vs. Standalone Profibus Remote I/O from other vendors (e.g., Wago, Phoenix Contact): Many vendors offer Profibus slave racks. The ABB 2RCA006836A0001E differentiates itself by being part of the proven, industrially hardened S900 mechanical and electrical platform.

Selection Suggestions and Precautions

1. Profibus Network Design: Adhere to standard Profibus DP network rules: use proper shielded cable, terminate both ends of the bus with active terminators, and ensure unique addresses for all slaves, including the ABB 2RCA006836A0001E.
2. Correct Addressing: Set the Profibus station address on the module’s DIP switches correctly. This address must be unique and match the configuration in the master’s hardware configuration.
3. Master Configuration: The configuration of the ABB 2RCA006836A0001E (its GSD file) must be imported into the Profibus master’s configuration tool (e.g., Siemens STEP 7). The I/O data length and structure must be defined to match the actual S900 I/O modules installed.
4. Power Supply Requirements: Ensure the S900 station has a properly rated power supply for all I/O modules and the communication interface. The ABB 2RCA006836A0001E draws power from the S900 backplane.
5. Environmental Suitability: While rugged, ensure the ambient temperature and humidity at the installation site are within the S900 system’s specifications for reliable long-term operation.
