ABB 216NG63A HESG441635R1 HESG216877K

Description

Product Overview

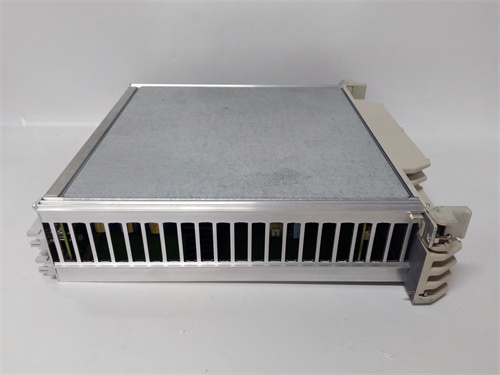

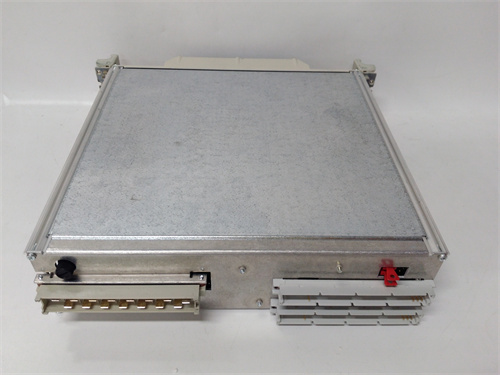

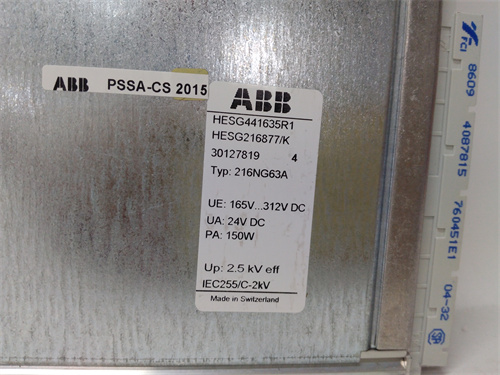

The ABB 216NG63A HESG441635R1 HESG216877K is a critical and complex printed circuit board (PCB) assembly, specifically a gate pulse or firing board, designed for ABB’s medium to high-power industrial drives and power conversion systems, such as the ACS 600/ACS 800 family or similar thyristor/IGCT-based converters. This module, identified by the core part number HESG441635R1, serves as the intelligent interface between the drive’s main control unit and the high-power semiconductor switches (like IGCTs or thyristors). Its primary function is to generate the precisely timed, high-current, isolated gate pulses required to turn the power semiconductors on and off, while also monitoring their status and providing vital protection functions. For detailed technical schematics, cross-reference lists, and application notes, please visit the official product resource: ABB 216NG63A HESG441635R1 HESG216877K. The reliability of the ABB 216NG63A is paramount, as its failure typically results in an immediate drive trip and potential damage to the power stack.

Product Parameters and Specifications

• Function: Gate Drive / Firing Pulse Board for Power Semiconductor (IGCT/Thyristor) Control.
• Compatibility: Designed for a specific power stack and drive type (e.g., ACS 800-17, ACS 600). The codes 216NG63A and HESG216877K define the exact application and mechanical variant.
• Core Technology: Contains high-speed logic circuits, isolated power supplies, and high-current gate drive amplifiers. It implements complex firing algorithms, including fiber-optic interfaces for receiving commands from the main control board and providing electrical isolation.
• Protection Functions: Monitors critical parameters of the power semiconductor, such as desaturation detection (for IGBTs/IGCTs), gate-emitter voltage, and provides short-circuit protection by blocking pulses in fault conditions.
• Number of Channels: Typically drives one or multiple power semiconductor positions in a specific phase leg of the converter.
• Isolation: Provides reinforced isolation (several kV) between the low-voltage control side and the high-voltage power side, crucial for safety and proper operation.
• Diagnostics: Features status LEDs and diagnostic feedback signals sent back to the main control unit to indicate board health and gate command execution.
• Connectors: Uses specialized, high-density connectors for interfacing with the control board (fiber optics, low-voltage signals) and the power semiconductor module (gate/auxiliary pins).

Advantages and Key Features

The primary advantage of the ABB 216NG63A HESG441635R1 HESG216877K is its role as a genuine, application-specific gate drive solution that is perfectly matched to the electrical and thermal characteristics of the associated power semiconductor and the control strategy of the drive. It ensures optimal switching performance and efficiency, minimizing switching losses and electromagnetic interference (EMI). The board incorporates critical protection features that act within microseconds to protect expensive power devices from destruction during faults. Its robust isolation design guarantees safe operation and protects the sensitive control electronics from high-voltage transients. Using this exact ABB assembly is the only reliable way to restore original performance and reliability, as third-party alternatives cannot replicate the proprietary firing algorithms and protection coordination. The ABB 216NG63A is a key component in achieving the drive’s rated performance and longevity.

Application Cases in Industry

This gate drive board is used inside the power cabinets of large variable frequency drives and converters. In Metals Industry, it is part of the drive controlling the main motors in a rolling mill or a strip processing line. Within Mining, it is found in the drives for large grinding mill motors, hoists, and high-power conveyor systems. For Marine Propulsion and Oil & Gas compressor drives, the ABB 216NG63A ensures reliable switching of the power devices that control multi-megawatt motors. It is also critical in Power Generation for large pump and fan drives, and in Test Benches for high-power motor testing.

Comparison with Competing Products

1. Genuine ABB Drive Spare (this assembly): Guarantees perfect compatibility with the drive’s firmware, control logic, and power stack. It is tested and validated by ABB for that specific drive frame and rating.
2. Third-Party “Compatible” Gate Drive Board: May be offered as a lower-cost alternative. This carries extreme risk. Even slight differences in timing, gate resistance, protection thresholds, or isolation characteristics can lead to catastrophic failure of the power semiconductors, causing extensive damage and prolonged downtime. Such boards are often unsupported and void the drive’s warranty.
3. System Upgrade/Replacement: The alternative is to replace the entire drive power section or the whole drive. This is a major capital project compared to a board-level repair.

The ABB 216NG63A HESG441635R1 HESG216877K exists in a high-stakes niche where the comparison is between guaranteed, safe operation and high risk of catastrophic failure.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Match is Absolutely Critical: The part numbers 216NG63A, HESG441635R1, and HESG216877K must be identical to those on the failed board. These codes define the drive type, voltage level, and position in the stack. A single character difference can indicate incompatibility.
  2. Drive Identification: Document the complete drive model, serial number, and frame size (e.g., ACS 800-17-0500-3). Cross-reference the board number with the drive’s spare parts manual.
  3. Investigate Root Cause: Before replacement, investigate why the original board failed (e.g., external short circuit, cooling failure, aging). Replacing the board without addressing the root cause will lead to a repeat failure.
  4. Source from Authorized ABB Drive Services: Purchase this critical component only from ABB or their most trusted and authorized industrial electronics distributors specializing in drive spares.
• Important Precautions:
  1. Lethal Voltages Present: The drive DC bus retains a lethal charge for a long time after power is disconnected. Follow strict Lock-Out/Tag-Out (LOTO) procedures and verify the DC bus voltage is below safe levels (typically <50V) using a properly rated meter before touching any internal components.
  2. ESD Sensitivity: The board contains highly static-sensitive components. Handle only with full ESD protection (wrist strap, grounded mat, anti-static bag).
  3. Fiber Optic Handling: Handle fiber-optic cables with extreme care. Do not bend them sharply, and keep the connectors clean. Damage to the fibers will prevent communication and cause a fault.
  4. Post-Replacement Testing: After installation, the drive must undergo a careful commissioning procedure. This includes checking fiber-optic communication, verifying gate pulse signals with an oscilloscope (if possible), and performing a low-voltage functional test before applying full power to the motor
