ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008

Description

Product Description

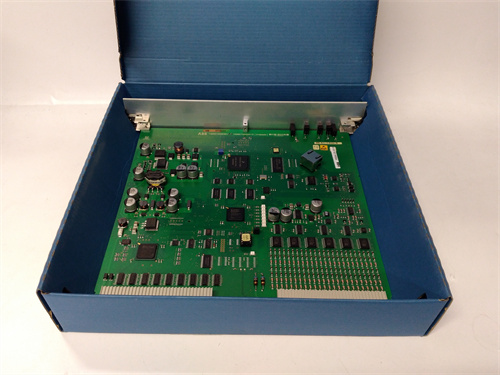

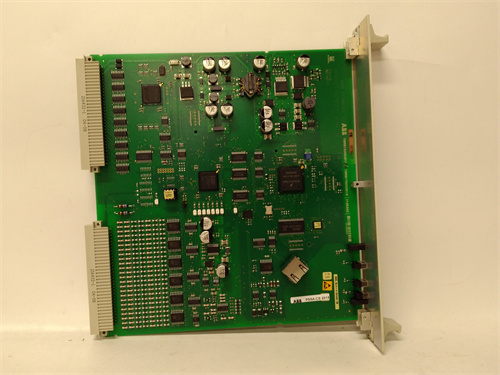

The ABB 216EA62 is a high-integrity, digital output module for the ABB System 800xA High Integrity (HI) family, with associated article numbers including 1MRB178066R1E, 1MRB150083R1E, and 1MRB300162R0008. This module is specifically designed for safety-critical applications where the reliable and fault-tolerant actuation of final elements is required. The ABB 216EA62 executes commands from the safety controller to drive devices such as solenoid valves, motor starters, or alarm annunciators to bring a process to a safe state. For comprehensive technical documentation, safety manuals, and configuration details, the primary resource is the official ABB Library portal for the ABB 216EA62. The design of the 216EA62 emphasizes robust diagnostics and a high degree of fault tolerance, ensuring that safety actions are performed when needed and not taken spuriously. As a core component within a Safety Instrumented System (SIS), the 216EA62 module plays a vital role in the reliable execution of safety instrumented functions (SIFs).

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: 216EA62 (High Integrity Digital Output Module).
• Product Article Numbers: 1MRB178066R1E, 1MRB150083R1E, 1MRB300162R0008 (representing specific configurations, revisions, or kit part numbers).
• System Compatibility: ABB System 800xA High Integrity and AC 800M HI safety systems.
• Function: Safety-rated Digital Output (DO) module.
• Output Channels: Typically provides 8 or 16 channels with independent or group-isolated outputs.
• Output Type: Solid-state (transistor) or relay outputs, capable of switching typical industrial loads (e.g., 24-230V AC/DC, up to 2A per channel).
• Safety Certification: Certified according to IEC 61508 for use in Safety Instrumented Systems, supporting Safety Integrity Levels (SIL) up to SIL 3.
• Diagnostics: Advanced per-channel diagnostics for detection of dangerous failures, including load wire break (open circuit), short-circuit detection, and on-state verification.
• Redundancy Support: Can be configured in redundant (1oo2, 1oo2D) architectures to meet Safety Availability (PFD) and Hardware Fault Tolerance requirements.
• Form Factor: A single-slot module for installation in an S800 I/O station or CI854 communication interface unit.

Advantages and Features

• Functional Safety Certified: Designed and validated as part of a safety system, providing the necessary diagnostic coverage and failure mode control required for SIL 2/SIL 3 applications.
• High Diagnostic Coverage: Continuous monitoring ensures that dangerous failures (e.g., a channel stuck in the “ON” state when commanded “OFF”) are detected and can be alarmed, allowing the system to take a defined safe action.
• High Availability: Supports hot-swapping and redundant configurations, allowing for online maintenance and repair without taking the safety function offline.
• Deterministic Performance: Guarantees a known, reliable response time for output actions, which is a critical parameter in safety loop timing calculations.
• Integrated Safety Engineering: Fully configured, programmed, and documented within the ABB 800xA engineering environment using Control Builder M, ensuring consistency and simplifying safety lifecycle management.

Application Cases in Industry

• Oil & Gas – Emergency Shutdown (ESD): Activates Emergency Shutdown Valves (ESDV) and Blowdown Valves (BDV) to isolate sections of a platform or refinery upon detection of a hazardous event.
• Chemical Processing – Safety Interlocks: Commands the closure of emergency isolation valves on reactor feed lines or the activation of emergency relief systems to prevent over-pressurization.
• Power Generation – Burner Management: Drives fuel shut-off valves and trip solenoids in Burner Management Systems (BMS) to safely shut down a boiler-turbine unit.
• Fire & Gas Systems: Triggers fire suppression system releases (deluge valves) and initiates alarm sirens and beacons across a facility.
• Pharmaceutical Manufacturing: Controls safety-critical interlocks for containment systems, ensuring safe operation during handling of potent compounds.

Comparison with Competing Products

Direct competitors are safety-certified digital output modules from other major safety system vendors, such as the Siemens SIMATIC ET 200SP F-DQ or the Emerson DeltaV SIS electronic marshalling DO card. The ABB 216EA62 differentiates itself through its native and optimized integration within the ABB 800xA High Integrity ecosystem. Compared to a standard digital output module, the 216EA62 incorporates sophisticated safety diagnostics (on-state verification) and is designed with internal circuitry to achieve the required Safe Failure Fraction (SFF). Its primary advantage is the seamless engineering experience and guaranteed interoperability within an ABB safety system, whereas integrating third-party safety I/O may introduce interface complexity and additional validation effort.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB 216EA62 specifically for implementing safety instrumented functions (SIFs) within an ABB 800xA HI or AC 800M HI system architecture.
  2. Carefully match the output type (relay vs. solid-state), voltage, and current rating to the connected field device (e.g., solenoid valve coil specifications). Ensure the total load per module and per channel is not exceeded.
  3. Plan the system architecture to utilize redundancy where required to achieve the target Safety Availability (PFDavg) for each safety loop.
• Precautions:
  1. Safety Lifecycle Compliance: The module must be used within a formally designed and validated Safety Instrumented System per IEC 61511. Proper application requires safety engineering competence.
  2. Certified Configuration: Use only ABB-approved firmware, hardware revisions, and configuration parameters as documented in the module’s safety manual. Unauthorized changes can invalidate the safety certification.
  3. Load Compatibility & Protection: Ensure connected loads are within specifications. For inductive loads (solenoids, contactor coils), use external suppression diodes or RC networks as specified in the manual to protect the output electronics from voltage spikes.
  4. Wiring Segregation: Safety signals must be wired in physically separated cable trays or conduits from standard control wiring to prevent fault propagation and maintain safety integrity.
  5. Genuine Components and Documentation: Due to its critical role, source authentic ABB 216EA62 modules using the correct article numbers (e.g., 1MRB178066R1E) from authorized ABB distributors. Maintain the specific safety manual for the purchased variant. The use of non-certified parts poses severe safety and legal risks.
