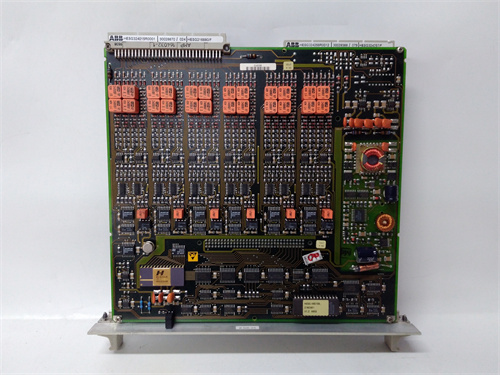

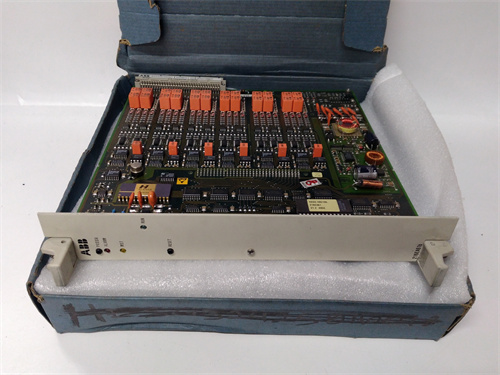

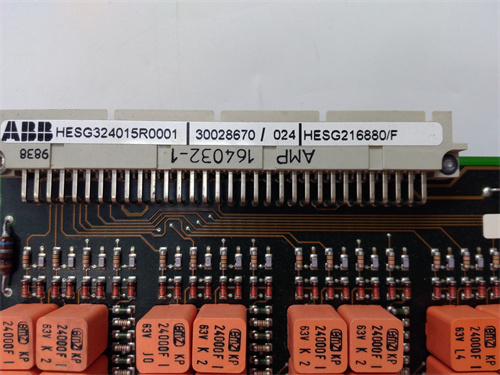

ABB 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1

Description

Product Description

The ABB 216EA61b is a high-integrity, fault-tolerant digital output module for safety-critical control systems, identified by the associated article numbers HESG324015R1, KHESG324258R3I, and HESG448230R1. As a core component of the ABB Advant Controller 800xA High Integrity (HI) and AC 800M HI family, this module is engineered to execute safety commands with the utmost reliability. The ABB 216EA61b is responsible for driving final elements like solenoid valves, motor starters, and alarm devices based on commands from a safety-rated controller, ensuring processes can be brought to a safe state when required. For complete technical documentation, safety manuals, and configuration guides, the definitive resource is the official ABB Library portal for the ABB 216EA61b. The design of the 216EA61b emphasizes deterministic response and diagnostic coverage, making it a pivotal element in any Safety Instrumented System (SIS) where failure is not an option. Its robust architecture is critical for applications demanding the highest levels of functional safety and availability.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: 216EA61b (High Integrity Digital Output Module).
• Product Article Numbers: HESG324015R1, KHESG324258R3I, HESG448230R1 (specific order codes for different configurations or regional variants).
• System Compatibility: Part of the ABB Advant Controller 800xA and AC 800M High Integrity (HI) safety system.
• Function: Safety-rated Digital Output (DO).
• Output Channels: Typically provides 8 or 16 channels with high-current switching capability (e.g., 2A per channel at 24V DC).
• Output Type: Solid-state or relay-based outputs designed for demanding inductive loads common in industrial field devices.
• Safety Certification: Certified for use in Safety Instrumented Systems (SIS) according to IEC 61508, supporting high Safety Integrity Levels (SIL 2/SIL 3).
• Diagnostics: Incorporates advanced per-channel diagnostics including load wire break detection, short-circuit detection, and on-state verification.
• Redundancy: Supports hardware and channel-level redundancy configurations to eliminate single points of failure.
• Form Factor: A single-slot module designed for installation in an S800 I/O station or a CI854 communication interface unit.

Advantages and Features

• Functional Safety Certified: Designed and validated for safety applications, providing the necessary diagnostic coverage and fault tolerance to meet stringent SIL requirements.
• High Diagnostic Coverage: Continuous monitoring of each output channel’s health ensures that dangerous failures are detected and the system can transition to a safe state.
• High Availability Architecture: Supports redundant configurations and features a robust design for continuous operation in harsh industrial environments, maximizing process uptime.
• Deterministic Performance: Guarantees a known and reliable response time, which is a critical parameter in the design of any safety function.
• Integrated Engineering: Fully configurable within the ABB 800xA engineering environment using Control Builder M, ensuring consistent configuration data management and simplified lifecycle maintenance.

Application Cases in Industry

• Oil & Gas: Activates Emergency Shutdown (ESD) valves (SDV, BDV) and deluge systems on offshore platforms and in refineries upon detection of a hazardous condition.
• Chemical Processing: Commands the opening or closing of critical isolation valves in reaction vessels or distillation columns to prevent runaway reactions or toxic releases.
• Power Generation: Drives turbine trip solenoids, fuel shut-off valves, and damper actuators in burner management systems (BMS) to safely shut down boiler-turbine units.
• Pharmaceutical: Controls safety interlocks on high-pressure autoclaves and reactors to protect personnel and product during sterile manufacturing processes.

Comparison with Competing Products

Direct competitors are other safety-certified digital output modules from major safety system vendors, such as the Siemens SIMATIC ET 200SP F-DQ (Fail-Safe Digital Output) or the Emerson DeltaV SIS Electronic Marshalling DO Card. The ABB 216EA61b differentiates itself through its native and optimized integration within the ABB 800xA High Integrity ecosystem. Compared to a standard digital output module, the 216EA61b incorporates sophisticated diagnostics (e.g., on-state verification), redundant internal circuits, and dedicated safety firmware. Its primary advantage is the seamless, single-engineering environment for both basic process control and safety functions, whereas integrating a third-party safety I/O may require separate tools and create interface complexities.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB 216EA61b exclusively for implementing safety instrumented functions (SIFs) within an ABB 800xA HI or AC 800M HI system architecture.
  2. Carefully verify the load requirements (voltage, current, inrush, inductive) of the field devices (e.g., solenoid valves) against the module’s per-channel and total load specifications.
  3. Plan the system architecture to utilize redundancy (e.g., 1oo2D voting) where necessary to achieve the required Safety Availability (PFDavg) and Hardware Fault Tolerance.
• Precautions:
  1. Safety Lifecycle Compliance: The module must be installed, configured, and validated as part of a formally designed SIS per IEC 61511 standards. Proper use requires safety engineering competence.
  2. Certified Configuration: Use only ABB-approved firmware, hardware revisions, and configuration parameters as documented in the module’s safety manual. Deviations can compromise the safety certification.
  3. Load Compatibility: Ensure connected loads are within specifications. Use external suppression diodes for inductive loads if not internally integrated, as specified in the manual, to protect the output electronics.
  4. Wiring Segregation: Safety signals must be wired in physically separated cable trays or conduits from standard control wiring to prevent fault propagation.
  5. Genuine Components: Due to its critical safety role, source authentic ABB 216EA61b modules using the correct article numbers (HESG324015R1, KHESG324258R3I, HESG448230R1) from authorized ABB distributors. The use of non-certified parts invalidates the safety system’s integrity and poses severe risks.
