ABB 216DB61 HESG324063R0100 HESG216882A

Description

Product Overview

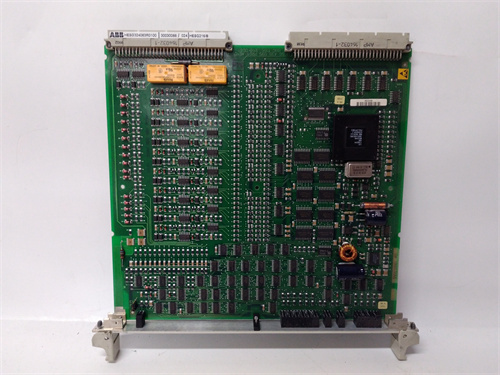

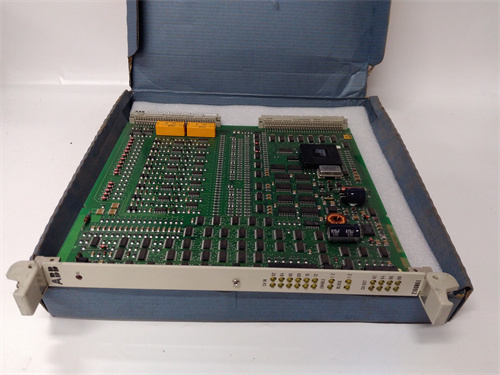

The ABB 16DB61 HESG324063R0100 HESG216882A is a critical printed circuit board (PCB) assembly that serves as a replacement or spare part for an ABB HESG or similar series control module, commonly found within their industrial automation systems, particularly in thyristor or rectifier control units. This complex assembly, often referred to by the part number HESG324063R0100, functions as a specialized control card, potentially containing the core logic, gate pulse generation, and feedback monitoring circuits for driving high-power semiconductor devices like SCRs (Silicon Controlled Rectifiers). For detailed technical schematics, cross-reference lists, and application notes, engineers should consult the official product resource: ABB 16DB61 HESG324063R0100 HESG216882A. This board is not a standard PLC I/O module but a vital component for maintaining the operation of specific ABB power electronic controllers and drive systems, where its failure can halt an entire production line or process.

Product Parameters and Specifications

• Function: Control PCB / Logic Board for ABB Power Control Unit (e.g., thyristor controller, rectifier regulator).
• Compatibility: Designed as a direct replacement for the board designated HESG324063R0100 within specific ABB controller frames, such as those in the HESG series used for industrial heating, DC drive, or excitation systems.
• Core Components: The board integrates a microprocessor or dedicated logic circuits, gate drive amplifiers, signal conditioning circuits, and communication interfaces. It often manages functions like phase-angle control, current/voltage regulation, and fault protection.
• Connectors: Features multiple high-density connectors for interfacing with other controller cards, power sections (thyristor bridges), current/voltage transducers, and external control signals (e.g., 4-20mA speed/current reference).
• LED Indicators: Includes status LEDs for power, run state, and fault diagnostics.
• Firmware: Operates with embedded firmware specific to the controller’s application. The board may require specific software versions or parameter settings.

Advantages and Key Features

The primary advantage of the ABB 16DB61 HESG324063R0100 HESG216882A is its role as a genuine, form-fit-function replacement for a critical and often obsolete control board. It provides restored system functionality for expensive power control equipment without the need to replace the entire controller or drive system, offering significant cost savings. Using this authorized spare ensures electrical and mechanical compatibility, guaranteeing proper fit and communication with the existing backplane and peripheral cards. It maintains the original performance and safety characteristics of the system, as it is built to the same specifications. For plant maintenance, having this board as a spare is key to minimizing downtime for critical assets like industrial furnaces, large DC motors, or mill drives.

Application Cases in Industry

This control board is found in heavy industrial applications utilizing ABB’s power control technology. In Metals Production, it is a core component in the regulator for a thyristor-controlled DC drive powering a rolling mill or a reel. Within the Chemical Industry, it could be part of an excitation system for a large synchronous motor or the controller for an electrochemical rectifier. For Glass and Ceramic Manufacturing, the ABB HESG324063R0100 board might be the brain of a thyristor power controller managing the heating elements of a large furnace. In Mining, it could regulate the DC drive for a hoist or a conveyor. Essentially, it is used anywhere precise control of high DC power via thyristor bridges is required.

Comparison with Competing Products

There is no direct “competitor” in the traditional sense, as this is a proprietary spare part. The comparison is typically between:

1. Genuine ABB Spare (this board): Offers guaranteed compatibility, reliability, and often comes with technical support. It is the recommended and safest choice.
2. Third-Party Replica or Refurbished Board: May be available at a lower cost but carries risks regarding component quality, firmware integrity, long-term reliability, and potential lack of certification. Performance may not match the original.
3. System Upgrade/Replacement: The alternative is to replace the entire control system with a modern drive or PLC-based solution, which is a major capital project but offers new features and longer-term support.

The ABB 16DB61 HESG324063R0100 HESG216882A is the solution for maintaining the existing system’s lifecycle with minimal risk.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Match is Critical: This part must be an exact match for the failed board. The part number (HESG324063R0100) and often the ABB 16DB61 identifier must be verified from the label on the original board in the controller. Even a single digit difference can indicate incompatibility.
  2. Controller Identification: Identify the complete model and serial number of the host ABB controller unit (e.g., DCS 500, PCS 100, specific HESG frame) to ensure cross-reference accuracy.
  3. Software/Firmware: Inquire if the replacement board requires a specific firmware version to be loaded or if parameters need to be transferred from the old board. Some boards may come pre-loaded, others may not.
  4. Source from Authorized Distributors: To avoid counterfeit products, purchase this critical spare only from ABB or its authorized industrial automation spare parts distributors.
• Important Precautions:
  1. ESD Protection: This is a highly sensitive electronic assembly. Handle with strict Electrostatic Discharge (ESD) precautions—use a grounded wrist strap and anti-static packaging.
  2. Power Down and Lock Out: Ensure the entire controller cabinet is de-energized, locked out, and tagged out (LOTO) before attempting to remove or install the board. High voltages are present in these cabinets.
  3. Document Settings: Before removing the old board, document all DIP switch settings, jumper positions, and any adjustable potentiometer settings if applicable.
  4. Professional Installation: Replacement should be performed by qualified technicians familiar with the equipment. Incorrect installation can damage the new board or other system components.
