ABB 216DB61

Description

Product Overview and Description

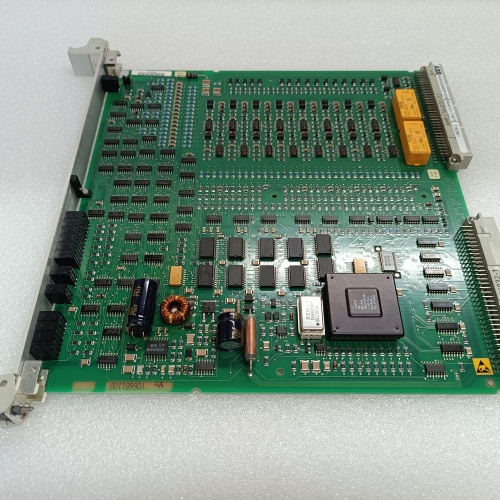

The ABB 216DB61 is a high-performance, rack-mounted analog input module from the ABB Advant Controller (AC) 400 series, a core component of the ABB MOD 300 distributed control system (DCS). This module serves as a critical interface for acquiring precise process measurement data by converting analog signals from field transmitters into digital values for the controller. The ABB 216DB61 is engineered for reliability in continuous process applications, handling multiple channels of various signal types with high accuracy and isolation. It plays a fundamental role in data acquisition for regulatory control, monitoring, and safety systems within large-scale industrial plants.

Product Parameters

• Module Type: Analog Input Module.
• Compatibility: ABB MOD 300 DCS with Advant Controller AC 400 series (e.g., AC410, AC450).
• Channel Configuration: Typically 8 or 16 channels (depending on exact variant), configurable per channel.
• Input Signal Types: Configurable per channel to accept:
  • Current: 0-20 mA, 4-20 mA (with optional 24V DC loop power).
  • Voltage: 0-1V, 0-5V, 0-10V, ±1V, ±5V, ±10V.
  • Resistance Temperature Detector (RTD): 2-, 3-, or 4-wire Pt100, Pt1000, Ni100, etc.
  • Thermocouple (TC): Types J, K, T, E, R, S, B, N, with built-in cold junction compensation.
• Resolution: High-resolution analog-to-digital conversion (e.g., 16-bit).
• Accuracy: High accuracy, typically ±0.1% of span or better for standard signals.
• Isolation: Channel-to-channel isolation and group isolation from the system backplane to ensure signal integrity and safety.
• Sampling Rate: Sufficient for process control applications (multiple samples per second per channel).
• Diagnostics: Comprehensive diagnostics for open circuit, short circuit, over-range, and module health.
• Communication: Interfaces with the controller via the proprietary MOD 300 I/O bus (M-bus).

Advantages and Key Features

1. High-Density Universal Input: The ABB 216DB61 consolidates multiple channels of diverse analog signals into a single module slot, maximizing rack space and reducing spare part variety. Its per-channel configurability offers exceptional application flexibility.
2. Exceptional Accuracy and Stability: Designed for precise process measurement, it provides excellent long-term drift performance and high noise immunity, ensuring reliable data for critical control loops and calculations.
3. Integrated Signal Conditioning: The module provides built-in features such as excitation for RTDs, cold junction compensation for thermocouples, and optional loop power for 2-wire transmitters, simplifying field wiring and external hardware.
4. Robust Diagnostics: Advanced diagnostic capabilities allow for predictive maintenance by detecting field wiring faults and sensor issues before they impact process control or cause unscheduled shutdowns.
5. Seamless DCS Integration: As a native component of the MOD 300/AC 400 system, the ABB 216DB61 is fully supported within the ABB engineering environment, enabling straightforward configuration, scaling, and integration into the plant’s control strategy and graphics.

Application Cases in Various Fields

• Oil & Gas Refining: Measuring temperatures from hundreds of thermocouples on a crude distillation column and pressures from 4-20 mA transmitters across a hydrocracker.
• Pulp & Paper Production: Monitoring consistency, pH, and temperature signals in the stock preparation area and measuring steam pressures and temperatures across the paper machine dryer section.
• Chemical Processing: Acquiring analog signals from flow meters, level transmitters, and analytical pH/conductivity sensors in a continuous reactor system for precise batch or continuous control.
• Power Generation: Measuring feedwater temperatures, turbine bearing metal temperatures (via RTDs), and various pressures in a boiler-turbine-generator set, relying on the accuracy of the ABB 216DB61.

Comparison with Competing Products

The ABB 216DB61 competes with high-density analog input modules from other DCS vendors like Honeywell (Experion), Emerson (DeltaV), and Siemens (SIMATIC PCS 7). Compared to standard PLC analog cards, it offers higher channel density, broader direct sensor support (T/C, RTD), superior accuracy, and deeper diagnostic integration within the DCS architecture. Its primary advantage is its optimized performance and engineering workflow within the installed base of ABB MOD 300 systems. For plant expansions or spares for this legacy platform, the ABB 216DB61 is the logical and fully compatible choice. Modern DCS modules may offer faster networks (Ethernet), but this module remains a reliable workhorse for existing systems.

Selection Suggestions and Precautions

• Selection Advice:
  • System Compatibility: Confirm the module is compatible with your specific AC 400 series controller and I/O rack (e.g., S800 I/O). Verify firmware and hardware revisions.
  • Signal Inventory: Audit all field instruments to determine the required mix of signal types (4-20mA, T/C, RTD). The universal nature of the ABB 216DB61 makes it ideal for mixed applications.
  • Density vs. Separation: While high density is efficient, consider critical loops. It may be prudent to separate extremely critical or noise-sensitive signals onto different modules for risk mitigation.
• Important Precautions:
  • Wiring and Grounding: Use proper shielded twisted-pair cables for analog signals. Ground the cable shield at the ABB 216DB61 end only to prevent ground loops and ensure noise immunity.
  • Intrinsic Safety (IS): For connections in hazardous areas, signals must be routed through certified intrinsic safety barriers or isolators before reaching this standard I/O module.
  • Configuration is Critical: Each channel or channel group must be correctly configured in the engineering software for the specific signal type, range, and filtering. An incorrect configuration will yield faulty process data.
  • Fuse Protection: If using the module’s internal loop power, ensure field wiring is sound to avoid short circuits. Some designs may have self-protecting circuits.
  • Obsolescence Planning: The MOD 300 platform is mature. Ensure long-term support plans are in place. Source the ABB 216DB61 from ABB or authorized, reputable distributors to guarantee authenticity and performance.
