ABB 216AB61 HESG324013R0100 HESG435572P1

Description

Product Description

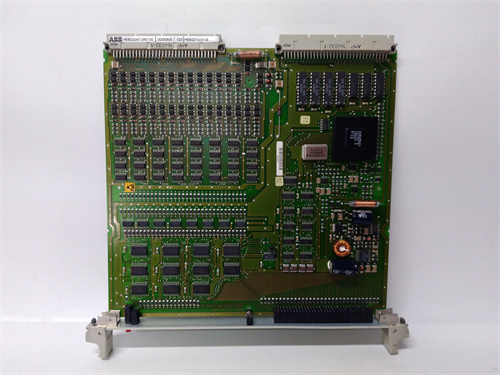

The ABB 216AB61 is a high-performance, safety-rated analog input module from the ABB Advant Controller 800xA series, with additional product identification codes HESG324013R0100 and HESG435572P1. This module is a critical component designed to reliably acquire and condition analog signals from field sensors in demanding industrial processes. As part of ABB’s comprehensive distributed control system (DCS) architecture, the ABB 216AB61 module ensures that vital process parameters like temperature, pressure, flow, and level are accurately converted into digital values for the controller’s logic. For detailed technical specifications, installation guides, and safety manuals, the essential resource is the official ABB Library portal for the ABB 216AB61. The integrity of the entire control loop often depends on the precision and reliability of the 216AB61, making it a fundamental I/O building block in safety-instrumented systems and critical process control applications. Its robust design is tailored for high availability and precise measurement in continuous process industries.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: 216AB61 (Analog Input Module).

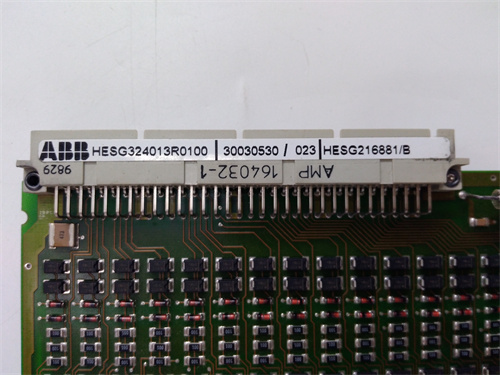

• Product Article Numbers: HESG324013R0100, HESG435572P1 (specific order codes for the module assembly).
• System Compatibility: Part of the ABB Advant Controller 800xA and AC 800M High Integrity (HI) family.
• Function: High Integrity, Safety-rated Analog Input.
• Input Channels: Typically provides 8 or 16 channels for analog current or voltage signals (e.g., 4-20mA, 0-10V).
• Safety Certification: Certified for use in Safety Instrumented Systems (SIS), meeting standards like IEC 61508 for high Safety Integrity Levels (SIL 2/SIL 3).
• Diagnostics: Features extensive built-in diagnostics for channel faults, wire break detection, short-circuit detection, and out-of-range signals.
• Isolation: Channels are individually isolated from each other and from the system bus to prevent fault propagation and ensure signal integrity.
• Resolution: High-resolution analog-to-digital conversion for accurate measurement.
• Form Factor: A single-slot module designed for installation in an S800 I/O or CI854 communication interface unit.

Advantages and Features

• Safety-Critical Design: Engineered and certified for high-integrity applications, providing the reliability needed for safety shutdown systems.
• High Availability: Redundant module configuration is supported, and extensive diagnostics enable predictive maintenance and quick fault identification, minimizing downtime.
• Exceptional Accuracy: Provides precise and stable signal conversion, which is crucial for closed-loop control and accurate process monitoring.
• Advanced Diagnostics: Continuous self-monitoring and detailed channel-level diagnostics provide clear status information to the control system, enhancing operational safety.
• Seamless System Integration: Fully integrated into the ABB 800xA engineering environment, allowing for centralized configuration, monitoring, and documentation.

Application Cases in Industry

• Oil & Gas (Upstream & Refining): Used in Emergency Shutdown (ESD) and Fire & Gas (F&G) systems to monitor critical pressures, temperatures, and gas concentrations on offshore platforms and in refineries.
• Chemical & Pharmaceutical: Acquires data from reactors and distillation columns in Safety Instrumented Functions (SIFs) where a failure could lead to hazardous events, ensuring safe batch processes.
• Power Generation: Monitors essential parameters like boiler drum level, turbine bearing temperature, and feedwater flow in burner management and turbine protection systems.
• Pulp & Paper: Provides high-integrity input for safety interlocks on chemical recovery boilers and other high-pressure, high-temperature processes.

Comparison with Competing Products

The primary competitors are safety-rated analog input modules from other major DCS vendors, such as the Siemens SIMATIC ET 200SP F-AI (Fail-Safe Analog Input) or the Emerson DeltaV SIS CHARMs. The ABB 216AB61 distinguishes itself through its deep, native integration within the ABB 800xA High Integrity environment. Compared to a standard analog input module, the 216AB61 incorporates redundant circuitry, more rigorous diagnostics, and certified firmware specifically for safety applications. Its main advantage is the holistic safety lifecycle management within the 800xA system, whereas integrating third-party safety I/O into a DCS can add complexity in engineering and certification.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB 216AB61 specifically for safety-related applications (SIL 2/3) within an existing or new ABB 800xA High Integrity or AC 800M HI system.
  2. Verify the exact signal type (mA, V, TC, RTD) and number of channels required, ensuring the module variant matches the application.
  3. Plan for redundancy at the module level for critical loops to achieve the required safety availability and allow for online maintenance.
• Precautions:
  1. Safety System Compliance: The module must be used within a properly designed and validated Safety Instrumented System (SIS). Its inclusion does not automatically make a system safe.
  2. Certified Configuration: Use only ABB-approved configurations, firmware, and engineering tools (e.g., Control Builder M) as specified in the safety manual. Unauthorized modifications can invalidate the safety certification.
  3. Wiring Practices: Follow strict separation guidelines for wiring between safety and standard signals. Use shielded cables and proper grounding techniques as detailed in the installation manual to ensure signal integrity.
  4. Handling and ESD: Treat the module as an ESD-sensitive device. Use proper grounding during installation.
  5. Lifecycle Management: Source genuine ABB 216AB61 modules from authorized channels. The use of non-certified or counterfeit parts in a safety system carries significant legal, financial, and operational risks. Always refer to the specific documentation for article numbers HESG324013R0100 and HESG435572P1.
