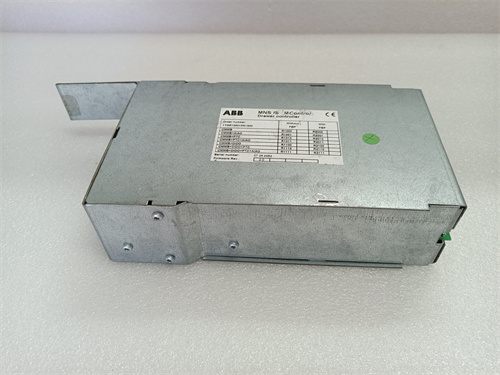

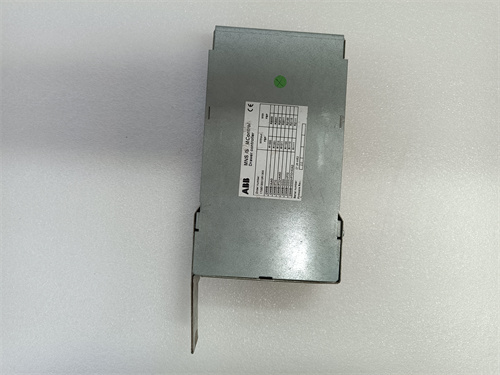

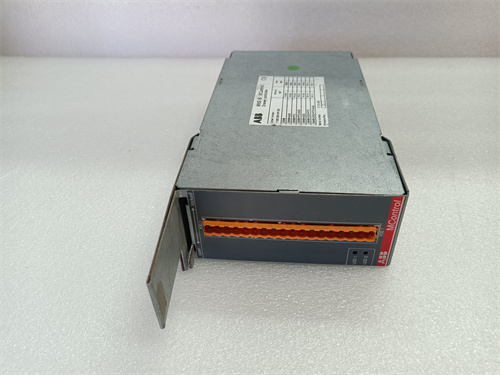

ABB 1TGE120011R2200

Description

Product Description

The ABB 1TGE120011R2200 is a specialized communication interface module designed for integration within ABB’s extensive range of protection and control products, particularly within the Relion® product family and other Substation Automation devices. This module, often referred to as a communication or gateway board, serves as a critical bridge, enabling seamless data exchange between intelligent electronic devices (IEDs) and higher-level control systems. The primary role of the ABB 1TGE120011R2200 is to facilitate communication using industry-standard protocols, thereby allowing for remote monitoring, control, and data retrieval from protective relays and meters. Implementing this interface module is essential for modernizing substations and industrial electrical systems, providing the connectivity backbone for smart grid applications. Its robust design ensures reliable performance in the electrically harsh environments typical of substation switchgear.

Technical Parameters and Features

• Device Type: Communication Interface Module or Gateway Board.
• Primary Function: Protocol conversion and communication interfacing for ABB IEDs.
• Typical Protocols Supported: Commonly supports multiple industrial and utility protocols such as IEC 61850 (MMS/GOOSE), IEC 60870-5-101/104, Modbus TCP/RTU, and DNP3.0. The exact protocol suite is version-specific.
• Physical Interfaces: Equipped with a combination of electrical and optical communication ports, typically including:
  • Ethernet ports (RJ45 or fiber optic) for high-speed LAN communication.
  • Serial ports (RS-485/RS-232) for legacy or point-to-point connections.
• Integration: Plugs directly into a dedicated slot within compatible ABB relay or IED housings, such as the REF615 or similar Relion series devices.
• Configuration: Configured using ABB’s proprietary engineering tools like PCM600 or the relay’s local HMI, allowing for mapping of data points and communication settings.
• Power Supply: Draws operating power directly from the host IED, requiring no external power source.

Advantages and Key Features

• Enhanced System Interoperability: The ABB 1TGE120011R2200 module breaks down communication barriers, allowing ABB protection devices to communicate effortlessly with SCADA systems, DCS, and control centers from various manufacturers.
• Future-Proofing Investment: By enabling support for modern protocols like IEC 61850, this module extends the lifecycle of existing ABB field devices, allowing them to participate in digital substation architectures without a complete hardware replacement.
• Simplified Engineering: Integration within the ABB ecosystem ensures plug-and-play compatibility with Relion devices, reducing configuration time and potential for integration errors compared to using third-party gateways.
• Reliable and Compact Design: As an ABB-original component, it is built to the same high environmental and EMC standards as the host relay, ensuring reliable operation. Its internal mounting saves valuable panel space.
• Centralized Data Access: Facilitates the centralized collection of metering data, event logs, and disturbance recordings from multiple IEDs, enabling comprehensive condition monitoring and fault analysis.

Application Case Studies in Various Fields

• Electrical Transmission & Distribution Substations: Installed in REF615 feeder protection relays to enable IEC 61850 communication for a digitized substation, allowing for GOOSE messaging for interlocking and fast automation schemes.
• Industrial Power Distribution: Used in ACS880 drive systems or PM800 power meters within a factory to provide a Modbus TCP gateway, integrating power quality and motor data into the plant’s overall Energy Management System (EMS).
• Renewable Energy Plants: Integrated into protection devices at a solar PV inverter station or wind farm substation to communicate DNP3.0 protocol data to the remote operations center for performance monitoring and grid compliance reporting.
• Marine and Offshore: Provides protocol conversion on protection relays for offshore platform power distribution, enabling reliable data transmission over often-challenging communication links to the onshore control room.

Comparison with Competing Products

Compared to external, stand-alone protocol converters or communication modules from other PLC/automation brands, the ABB 1TGE120011R2200 offers distinct benefits:

1. Native Integration and Performance: It is designed and tested as an integral part of specific ABB IEDs, offering guaranteed performance, synchronization, and access to all device data points, unlike external gateways which may have limited data mapping capabilities.
2. Ecosystem Cohesion: Configuration is managed within the same ABB engineering tools used for the relay itself (e.g., PCM600), creating a unified project environment. Competing solutions often require separate, disparate configuration software.
3. Form Factor and Reliability: Its internal mounting provides a cleaner, more robust solution with fewer external connections and points of failure compared to an external box with separate power and wiring.

Selection Advice and Important Notes

• Verify Host Device Compatibility: This module is not universal. It is crucial to confirm that the ABB 1TGE120011R2200 is explicitly listed as compatible with the specific model and firmware version of your ABB relay, meter, or drive. Using an incompatible module can cause malfunction.
• Define Communication Requirements: Clearly identify which protocols (IEC 61850, Modbus, DNP3) and which physical media (copper Ethernet, fiber, serial) are required by your control system before specifying the module.
• Secure Official Firmware/Configuration: Always use the correct firmware and configuration files provided by ABB for the module. Incorrect firmware can lead to communication failures or instability.
• Professional Configuration Recommended: Properly mapping the IED’s extensive data set to the communication protocol requires a good understanding of both the device and the protocol. Configuration is best performed by trained personnel.
• Consider Cybersecurity: When enabling network communication, especially IEC 61850 or Ethernet-based protocols, ensure appropriate network security measures (firewalls, segmentation) are implemented in the system design.
