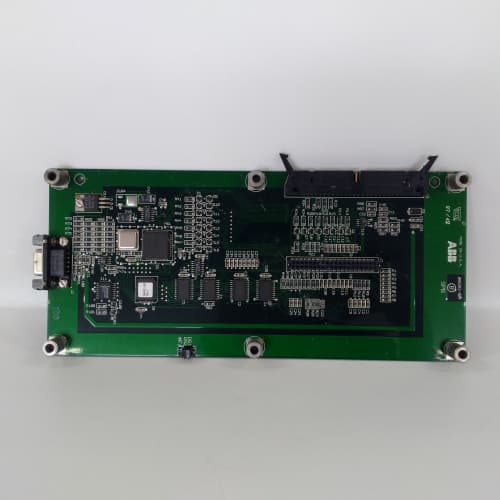

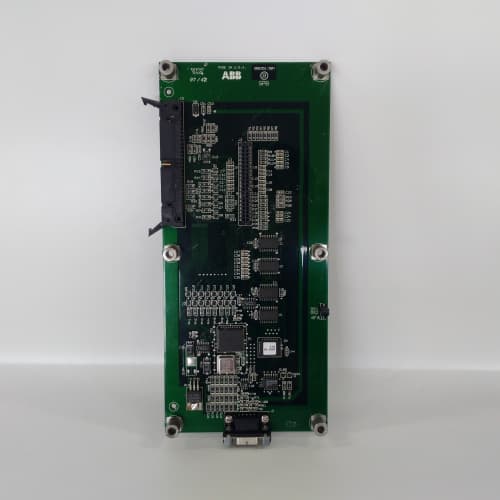

ABB 086407-502

Description

Product Overview and Description

The ABB 086407-502 is a high-reliability Power Supply Module designed for the ABB AC 800M PM864 series of process controllers, which form the core of the ABB Ability™ System 800xA distributed control system (DCS). This module is not merely a spare part but a critical system component responsible for converting the primary 120/230V AC plant power into the stable, clean 24V DC and 5V DC power required by the controller’s CPU and associated I/O modules. The robust design of the ABB 086407-502 ensures flawless operation in industrial settings, providing the electrical foundation for continuous process control. Its integration is seamless within the AC 800M high-performance controller rack, making the ABB 086407-502 an essential element for new installations, system upgrades, and as a vital hot-swappable redundancy component. The dependable performance of the ABB 086407-502 is key to maintaining the high availability expected of modern automation systems, safeguarding against unexpected downtime.

Key Parameters and Specifications

• Manufacturer & Platform: ABB, for the AC 800M High Performance Controller (PM864) system.
• Module Type: Power Supply Unit (PSU).
• Input Voltage: 100-240 VAC, 50/60 Hz (wide range, auto-sensing).
• Output Voltages:
  • +24 VDC for field I/O and communication modules.
  • +5 VDC for the controller’s CPU and internal logic.
• Output Power: Typically 50-60 Watts, sufficient to power a fully configured controller baseplate.
• Cooling: Convection cooled (fanless) for silent operation and higher reliability by eliminating a mechanical failure point.
• Mounting: Installs directly into the designated slot on the left side of the AC 800M controller baseplate (PM864).
• Hot-Swap Capable: Designed for replacement without powering down the entire controller when used in a properly configured redundant system.
• Status Indicators: LED indicators for power OK and fault conditions.

Advantages and Distinctive Features

The primary advantage of the ABB 086407-502 is its role as the dedicated, high-integrity power source for ABB’s flagship PM864 controller. Its wide-range auto-sensing input simplifies global deployment and handles typical mains voltage fluctuations without issue. A key feature is its fanless, convection-cooled design, which significantly enhances long-term reliability by removing the most common point of failure in power supplies—the cooling fan. The module provides clean, well-regulated power that is crucial for the stable operation of the high-speed processor and sensitive communication electronics within the PM864. The hot-swap capability of the ABB 086407-502 is a critical feature for systems requiring maximum uptime, allowing for preventive maintenance or replacement without interrupting the control process. The design and quality assurance behind the ABB 086407-502 ensure it meets the rigorous demands of 24/7 process industries.

Application Cases in Key Fields

• Pulp and Paper Mills: Powering the AC 800M controller that manages a critical paper machine drying section, where a stable power supply is non-negotiable for maintaining product quality and preventing web breaks.
• Marine and Offshore: Serving as the main or redundant power supply for the dynamic positioning (DP) system’s controller on a vessel, where power integrity is directly linked to operational safety.
• Minerals Processing: Providing reliable power to the controller running a complex flotation cell array or grinding mill circuit in a remote mining operation, where environmental conditions are challenging.
• Pharmaceuticals: Ensuring uninterrupted power to the batch process controller in a cleanroom facility, where even a minor power glitch could compromise an entire batch worth millions.

Comparison with Competing Products

Unlike generic 24V DC power supplies, the ABB 086407-502 is specifically engineered to meet the exact voltage, ripple, and dynamic load requirements of the ABB PM864 controller. Competing power modules from other DCS vendors (e.g., Siemens SIMATIC PSU or Emerson DeltaV power supplies) are proprietary to their respective controller racks and are not physically or electrically interchangeable. The ABB 086407-502 distinguishes itself within the ABB AC 800M family by being the standard power supply for the high-performance PM864, whereas other controller models (like PM861 or PM863) may use different, non-compatible power modules. Its integration is far superior to using an external third-party PSU, as it includes direct mechanical mounting, status communication to the controller firmware, and seamless support for redundancy.

Selection Suggestions and Precautions

Selection Suggestions:

1. Select the ABB 086407-502 exclusively for providing or replacing power in an existing ABB AC 800M PM864 controller baseplate.
2. It is a mandatory purchase for any system expansion involving a new PM864 controller or as a recommended spare part for critical systems to enable fast replacement.
3. For maximum system availability, procure two units to configure a redundant power supply setup within the controller rack.

Important Precautions:

1. Controller Compatibility: Verify that your controller is indeed a PM864. This power supply is not compatible with older AC 800M controllers like the PM861, which use a different form factor.
2. Input Power Verification: Ensure the plant AC power source matches the module’s input range (100-240VAC) and is properly fused and isolated according to ABB’s system installation guidelines.
3. Load Capacity: While the ABB 086407-502 is rated for a standard controller load, confirm that the total power consumption of all modules on the baseplate (CPU, communication, and any internal co-processor modules) does not exceed its output capacity, especially in heavily expanded configurations.
4. Hot-Swap Procedure: If performing a live replacement, strictly adhere to ABB’s documented hot-swap procedure for the AC 800M system to avoid arcing, data corruption, or controller fault.
5. Static Discharge: Handle the module with appropriate ESD (electrostatic discharge) precautions to prevent damage to its internal electronics.
