Description

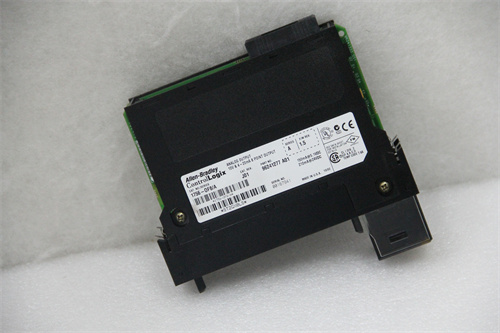

1. AB+1756-OF8

• Product Name: 1756-OF8 Analog Output Module
• Product Description: The 1756-OF8 is an 8-channel, analog output module designed for the ControlLogix system. It provides precise control over analog output signals, allowing integration with a variety of field devices.
• Product Parameters:
  • Channels: 8
  • Output Type: Voltage or current (configurable)
  • Resolution: 16-bit
  • Isolation: 1500V
• Specifications:
  • Communication: ControlLogix backplane
  • Operating Temperature: 0 to 60 °C (32 to 140 °F)
  • Input Power: 5V from the backplane
• Product Use: Ideal for applications requiring precise control of analog signals, such as in manufacturing automation, process control, and instrumentation.

2. 1756-OB16E

• Product Name: 1756-OB16E Digital Output Module
• Product Description: The 1756-OB16E is a 16-point, digital output module designed for the ControlLogix system. It features enhanced diagnostics and better integration capabilities.
• Product Parameters:
  • Channels: 16
  • Output Type: Sourcing (PNP)
  • Voltage Range: 24V DC
• Specifications:
  • Maximum Output Current: 2 A per channel
  • Isolation: 1500V
  • Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Product Use: Suitable for applications that require reliable ON/OFF control of devices, such as lights, motors, and solenoids.

3. 1756-OB16D

• Product Name: 1756-OB16D Digital Output Module
• Product Description: The 1756-OB16D is a 16-point, digital output module that provides relay outputs for the ControlLogix system, ideal for applications requiring mechanical isolation.
• Product Parameters:
  • Channels: 16
  • Output Type: Relay (dry contact)
  • Voltage Range: 5 to 265V AC/DC
• Specifications:
  • Maximum Switching Current: 2 A per channel
  • Insulation Resistance: 100 MΩ at 500 V DC
  • Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Product Use: Best suited for applications that require switching higher voltages or currents with mechanical isolation.

4. 1756-OW16I

• Product Name: 1756-OW16I Output Module
• Product Description: The 1756-OW16I is a 16-channel output module designed for use with the ControlLogix platform, capable of providing various output types. It is robust with integrated diagnostics.
• Product Parameters:
  • Channels: 16
  • Output Type: Solenoid or Relay
  • Voltage Rating: Up to 30V DC
• Specifications:
  • Maximum Output Current: 1 A per channel
  • Isolation: 1500V
  • Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Product Use: Used in applications when controlling solenoids or relay-based devices, such as in automation and control systems.
