5X00241G02 Westinghouse | Ovation Analog Output, New Surplus

Description

Product Introduction

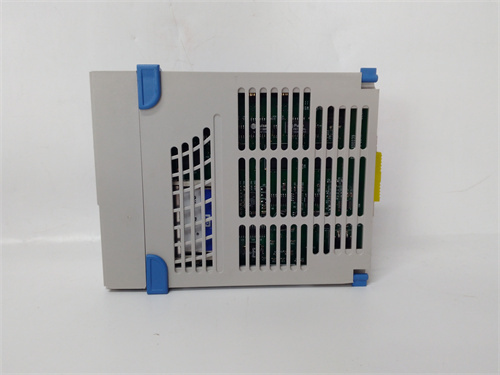

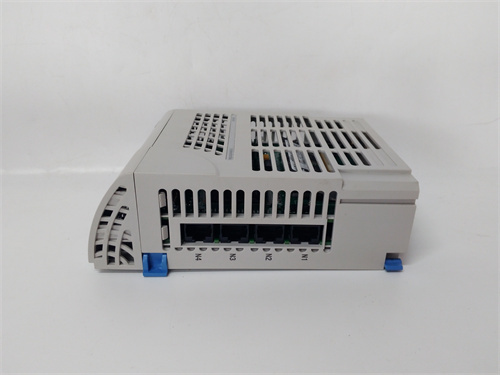

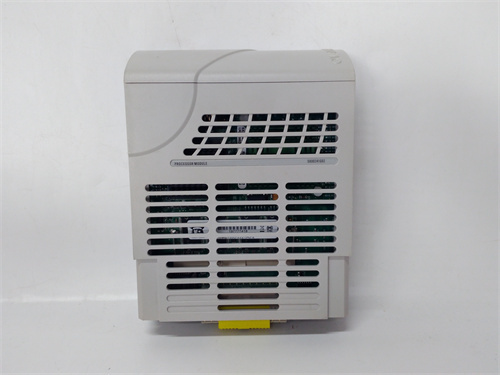

The Westinghouse 5X00241G02 is an 8-channel analog output module designed for the Ovation distributed control system, originally manufactured by Westinghouse and now supported by Emerson. This module provides 4 to 20 mA output signals for positioning valves, actuators, variable frequency drives, and other final control elements. The 5X00241G02 mounts directly into an Ovation I/O cabinet and interfaces with the controller via the proprietary Ovation I/O bus.

The Ovation DCS remains the backbone for many fossil and nuclear power plants, as well as large-scale industrial facilities. The 5X00241G02 is a legacy module from the Westinghouse era that has been superseded by newer Emerson revisions. However, for plants running original Ovation systems, sourcing this specific revision is critical because newer modules may require controller firmware upgrades, different termination assemblies, or changes to the I/O database. We stock these units specifically to support outage maintenance and emergency replacements where maintaining identical hardware is the preferred approach.

Key Technical Specifications

Key Selling Points & Differentiators

• Legacy System Support: Direct replacement for original Westinghouse Ovation installations. No controller firmware upgrades, database modifications, or system reconfiguration required when replacing a failed unit with the same part number.
• HART Pass-Through: Supports HART communication for smart valve positioners and transmitters without requiring separate HART multiplexers. HART signals are passed through the module to a dedicated HART modem or asset management system.
• 8-Channel Density: Provides eight analog outputs per card, balancing channel density with individual channel isolation groups. Reduces I/O cabinet footprint compared to 4-channel alternatives.
• Simultaneous Update: All eight output channels update simultaneously on each scan cycle, critical for applications requiring coordinated valve positioning such as turbine control or burner management.
• Authenticity Guarantee: Each unit undergoes visual inspection for Westinghouse OEM markings, serial number traceability, and PCB integrity. We do not sell counterfeit or refurbished units with unknown history.

Frequently Asked Questions (FAQ)

Q: Is the Westinghouse 5X00241G02 discontinued?
Yes. Westinghouse was acquired by Emerson, and the Ovation product line has since evolved. The 5X00241G02 is a legacy module no longer in active production. Emerson supports newer revisions such as the 5X00622G01 or 5X00781G01 series, but this specific Westinghouse revision is available only through surplus channels. If your system is original Westinghouse Ovation, this is the correct drop-in replacement.

Q: Can I use a newer Emerson Ovation analog output module instead of this one?
Possibly, but not without potential engineering effort. Newer Emerson analog output modules may use different termination panels, have different channel mapping, or require controller firmware updates. If your plant has not upgraded the Ovation controller firmware or engineering database in several years, installing a newer module may result in a configuration mismatch. We recommend verifying your current controller firmware version, termination panel part number, and I/O database configuration before substituting a newer revision.

Q: What is the difference between the 5X00241G02 and the 5X00241G01?
The -G02 revision added improved HART pass-through filtering and slightly better accuracy specifications compared to the -G01. In most applications, the -G01 and -G02 are functionally interchangeable, but the -G02 is the preferred revision for applications using HART communication. If your existing installation uses the -G01 and does not require HART, either revision will work. For HART-enabled loops, we recommend matching the -G02 revision.

Q: Does this module require a specific termination panel?
Yes. The 5X00241G02 connects to a termination panel via a ribbon cable. Common termination panels for this module include the 5X00058G01 or 5X00059G01 series, depending on whether you need individual channel isolation or shared power distribution. If you are replacing a failed card, keep the existing termination panel in place—the card itself is the only component that needs replacement. If you are adding a new module, confirm termination panel compatibility before ordering.

Q: Does the 5X00241G02 provide loop power to field devices?
No. This module outputs a 4 to 20 mA signal but does not provide loop power. Field devices such as valve positioners or I/P converters require an external 24 V DC power supply connected at the termination panel. The module controls the current loop but does not source the voltage. Verify your field wiring diagram to ensure proper loop power is available.

Q: Can I hot-swap this card in a running Ovation system?
Yes. Ovation I/O cards are designed for hot-swap. You can remove and replace the 5X00241G02 while the system remains operational. However, during the swap, the analog outputs will drop to their configured fail-safe state (typically 0 mA, 4 mA, or hold last value depending on system configuration). We recommend performing the replacement during a low-impact period or with the affected loops in manual or bypass to avoid process upsets.

Q: What testing do you perform before shipping?
We run each unit through a full functional test on a live Ovation backplane with a controller simulator. This includes verifying I/O bus communication, generating 4 to 20 mA outputs across all 8 channels with a precision load and measurement system, testing HART pass-through functionality, and performing a 24-hour continuous power-on soak test to catch intermittent failures. We also inspect the edge connector for wear or corrosion before sealing in anti-static packaging. A test report with measured output values is included with each shipment.
