5X00070G04 Emerson | Ovation Analog Input, New Surplus

Description

Product Introduction

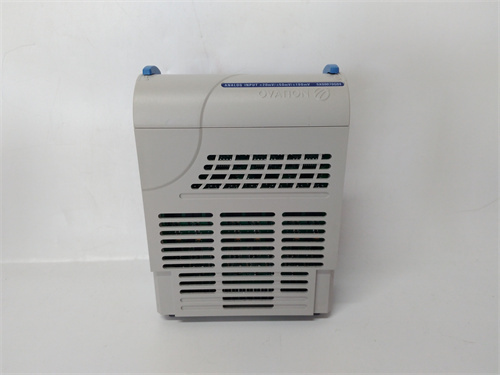

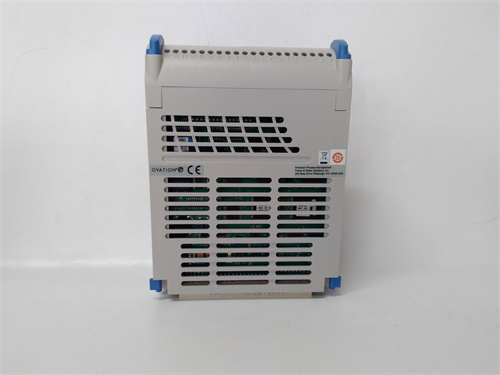

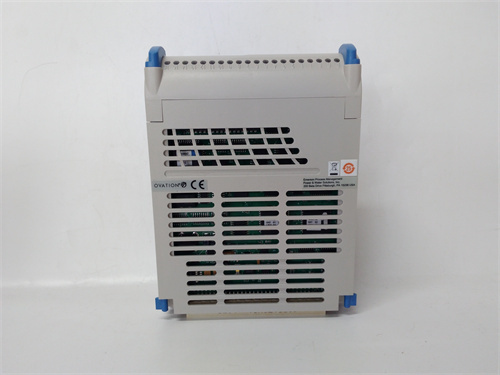

The Emerson 5X00070G04 is an analog input module for the Ovation distributed control system. This module accepts 4 to 20 mA signals from field transmitters, providing high-accuracy measurement for pressure, temperature, flow, and level applications. The 5X00070G04 mounts directly into an Ovation I/O cabinet and interfaces with the controller via the Ovation I/O bus, supporting both simplex and redundant configurations.

The Ovation platform is Emerson’s flagship DCS for the power and water industries, with tens of thousands of installations worldwide. The 5X00070G04 is a legacy analog input module from the Westinghouse Ovation era. Although Emerson has introduced newer analog input modules, the 5X00070G04 remains in operation at many facilities. For plants maintaining original Ovation systems, sourcing verified 5X00070G04 modules is essential for avoiding costly system migrations.

Key Technical Specifications

Key Selling Points & Differentiators

• Ovation Legacy Support: Direct replacement for original Westinghouse Ovation analog input modules. No configuration changes or cabinet modifications required when replacing with the same part number.
• HART Pass-Through: Supports HART communication for smart transmitters without requiring separate HART multiplexers. HART signals are passed through to a HART modem or asset management system.
• High Resolution: 16-bit resolution provides precise measurement for critical control loops.
• Individual Channel Isolation: Each of the eight channels is isolated from the others and from the backplane, reducing ground loop issues and simplifying wiring.
• Authenticity Guarantee: Each unit undergoes visual inspection for Emerson/Westinghouse OEM markings, serial number traceability, and PCB integrity. We test every module on a live Ovation backplane before shipping.

Frequently Asked Questions (FAQ)

Q: Which Ovation systems is the 5X00070G04 compatible with?
The 5X00070G04 is compatible with Ovation systems that use the legacy Westinghouse I/O architecture. It works with Ovation controllers and I/O cabinets from the Westinghouse era and early Emerson Ovation systems. It is not compatible with newer Ovation I/O families without verification.

Q: Is this module discontinued?
Yes. Emerson has transitioned to newer analog input modules such as the 5X00622G01 or 5X00781G01 series. The 5X00070G04 is no longer in active production. Availability is limited to new surplus and tested used inventory. For Ovation systems still in operation, we recommend securing spares while stock remains available.

Q: What is the difference between the 5X00070G04 and the 5X00070G01?
The -G04 revision represents a later hardware revision with improved components and updated firmware. The -G04 is backward-compatible and can replace earlier revisions (-G01, -G02, -G03) without modification. If your system currently uses an earlier revision, the -G04 is a direct drop-in replacement.

Q: Does this module provide loop power to field devices?
No. The 5X00070G04 does not source loop power. Field transmitters require an external 24 V DC power supply connected at the termination panel. The module measures the 4 to 20 mA current loop but does not provide the voltage.

Q: What termination panel is required for the 5X00070G04?
The 5X00070G04 requires an Ovation termination panel with a 24-pin ribbon cable interface. Common termination panels include the 5X00059G01 or 5X00058G01 series. Verify your existing termination panel part number to ensure compatibility.

Q: Can I hot-swap this module in a running Ovation system?
Yes. Ovation I/O modules are designed for hot-swap. You can remove and replace the 5X00070G04 while the system remains operational. During the swap, the analog input values for that module will be unavailable. Process loops using those inputs should be in manual or bypass during the swap to avoid upsets.

Q: What testing do you perform before shipping?
We test every 5X00070G04 on a live Ovation backplane with a controller simulator. Our test procedure includes:

• Visual inspection for physical damage, corrosion, or previous repairs
• Edge connector cleaning and inspection
• I/O bus communication verification
• Input channel testing across the 4 to 20 mA range with precision current source
• Accuracy verification against expected values
• HART pass-through verification (if applicable)
• 24-hour continuous power-on soak test

A test report with channel measurements and test results is included with each shipment.
