57C404C Reliance | AutoMax Analog Input, New Surplus

Description

Product Introduction

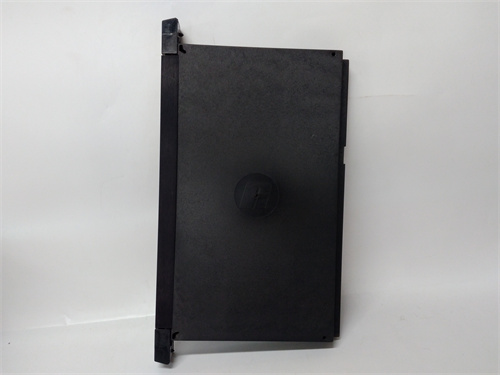

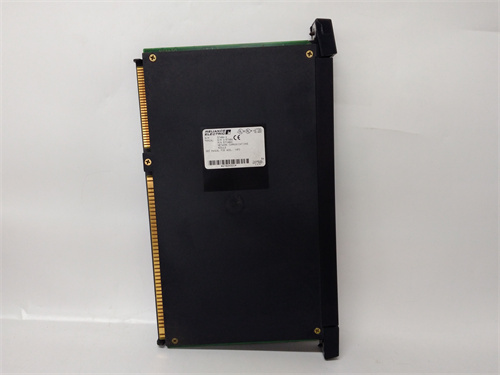

The Reliance 57C404C is a 4-channel analog input module designed for the AutoMax programmable automation controller (PAC) system. This module accepts standard analog signals from field devices such as pressure transmitters, flow meters, temperature sensors, and position feedback devices, converting them to digital values for use in control logic, drive regulation, and process monitoring. The 57C404C mounts directly into an AutoMax rack and interfaces with the system backplane.

AutoMax was Reliance Electric’s flagship automation platform for coordinated drive systems, material handling, and industrial process applications. Although Reliance was acquired by ABB, thousands of AutoMax systems remain in operation today, particularly in metals, paper, and material handling industries. The 57C404C is a critical component for maintaining these legacy systems. Because these modules have been discontinued for over a decade, sourcing verified functional units is essential for avoiding costly system migrations or extended downtime.

Key Technical Specifications

Key Selling Points & Differentiators

• Legacy System Support: Direct replacement for original Reliance AutoMax installations. No configuration changes or rack reconfiguration required when replacing a failed unit with the same part number.
• Multiple Input Ranges: Configurable for current or voltage signals via DIP switches on the module. Field-selectable ranges eliminate the need for external signal conditioners.
• Individual Channel Isolation: Each of the four channels is isolated from the others and from the backplane, reducing the risk of ground loops and simplifying wiring in complex systems.
• Field-Proven Reliability: AutoMax I/O modules were built for heavy industrial environments. The 57C404C uses gold-plated edge connectors and industrial-grade components rated for 24/7 continuous operation.
• Authenticity Guarantee: Each unit undergoes visual inspection for Reliance OEM markings, PCB quality, and component integrity. We test every unit on a live AutoMax rack before shipping to verify all four channels and communication.

Frequently Asked Questions (FAQ)

Q: Is the Reliance 57C404C still available from ABB?
No. ABB discontinued the AutoMax product line years ago. The 57C404C is no longer in production. New surplus and tested used units are the only sources for replacement modules. We maintain a stock of verified functional units specifically for plants still running AutoMax systems.

Q: What is the difference between the 57C404C and the 57C404A or 57C404B?
The -C revision represents the final hardware revision for this module. Earlier -A and -B revisions had slightly different component layouts and used older analog-to-digital converters. The -C revision is the most reliable and has the best noise immunity. When replacing any 57C404 series module, the -C revision is a drop-in replacement for all previous revisions. No configuration changes are needed.

Q: How do I configure the input range for each channel?
Configuration is done via a bank of DIP switches on the module. Each channel has its own switch set for selecting current or voltage mode, and for voltage mode, selecting 0 to 10 V or ±10 V. Current mode is fixed at 4 to 20 mA (0 to 20 mA also available on some revisions). We recommend photographing the switch settings on your existing module before removal and replicating them exactly on the replacement.

Q: Does this module support thermocouple or RTD inputs?
No. The 57C404C accepts only analog voltage or current signals. For thermocouple or RTD inputs, you need a signal conditioner between the sensor and the module, or you need a dedicated thermocouple module such as the 57C422 or 57C423 series.

Q: Can I hot-swap this module in a running AutoMax system?
No. The AutoMax backplane does not support hot-swap of I/O modules. The system must be powered down before removing or inserting a 57C404C. Attempting to remove or install a module with power applied can damage the module, the backplane, or both, and may cause unpredictable behavior in the running system.

Q: What happens to the analog inputs during a module failure?
When a 57C404C fails, the controller loses all four analog input values for that module. Depending on how your control logic is written, this can cause drives to fault, valves to close, or processes to shut down. We strongly recommend maintaining a spare 57C404C on hand for critical AutoMax systems to minimize downtime when a module fails.

Q: What testing do you perform before shipping?
We test every 57C404C on a live AutoMax rack with a functional controller. Our test procedure includes verifying backplane communication, applying known signals (current and voltage) to all four channels, measuring digital values against expected counts, testing DIP switch configuration changes, and performing a 24-hour continuous power-on soak test. We also inspect the edge connector for wear, clean it with isopropyl alcohol, and seal the module in anti-static packaging with a test report.
