Product Introduction

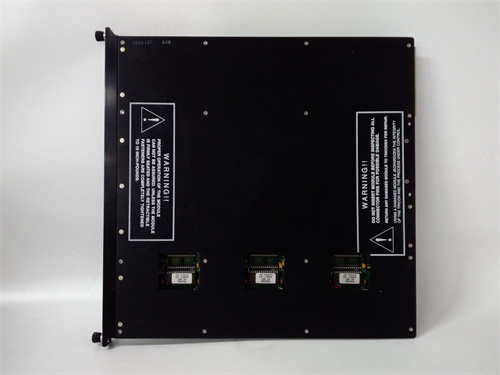

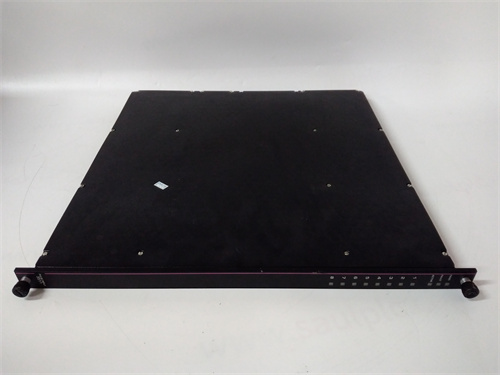

The Triconex 3511 is a 32-channel digital input module designed for the Tricon Triple Modular Redundant (TMR) safety system. This module accepts 24 V DC signals from field devices such as emergency stop pushbuttons, pressure switches, and sensor outputs, and provides voting and diagnostics across three isolated channels per input point. The 3511 mounts in the Tricon main chassis and communicates with the Tricon controller via the I/O bus, supporting SIL 3 safety applications.
The Triconex Tricon platform is one of the most widely deployed safety instrumented systems (SIS) in the world, with thousands of installations in oil and gas, refining, chemical, and power generation facilities. The 3511 is a legacy input module from the Tricon v9 and v10 product lines. While Triconex has introduced newer I/O modules (such as the 3503E and 3513 series), the 3511 remains in operation at many facilities. For plants maintaining legacy Tricon systems, sourcing verified 3511 modules is essential for avoiding costly system migrations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Safety Digital Input Module |
| Number of Channels | 32 channels |
| Input Voltage | 24 V DC (nominal) |
| Input Voltage Range | 20 to 42 V DC |
| Input Impedance | 4.7 kΩ |
| Input Current | 5 mA typical at 24 V DC |
| Input Delay | Configurable (typically 10 to 50 ms) |
| Safety Integrity Level | SIL 3 (IEC 61508), TÜV certified |
| Architecture | Triple Modular Redundant (TMR) |
| Isolation | 1,500 V AC (field to logic) |
| Power Consumption | 5 V DC from backplane, 1.5 A typical |
| Operating Temperature | 0 to 60 °C |
| Mounting | Tricon main chassis |
Key Selling Points & Differentiators
- SIL 3 TMR Architecture: Triple Modular Redundant design with three isolated circuits per input channel. Provides high availability and fault tolerance for safety instrumented functions.
- High Channel Density: 32 channels per module maximizes I/O density in the Tricon chassis, reducing chassis count and footprint.
- Comprehensive Diagnostics: Individual channel diagnostics including open-circuit detection, short-circuit monitoring, and input status verification. Diagnostic coverage meets SIL 3 requirements.
- Legacy System Support: Direct replacement for original Triconex 3511 modules in Tricon v9 and v10 systems. No configuration changes or chassis modifications required.

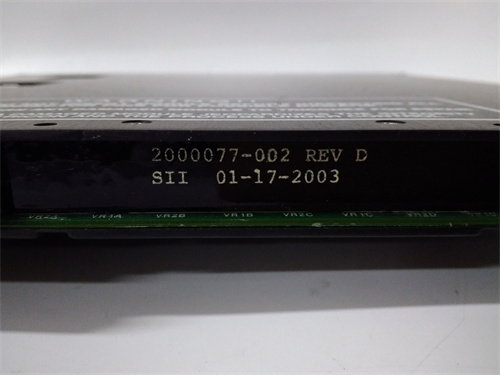

- Authenticity Guarantee: Each unit undergoes visual inspection for Triconex OEM markings, serial number traceability, and PCB integrity. We test every module on a live Tricon system before shipping.
Frequently Asked Questions (FAQ)
Q: Which Tricon systems is the 3511 compatible with?
The 3511 is compatible with Tricon v9 and v10 systems. It is not compatible with the newer Tricon CX or Tricon v11 systems without verification. If you have a Tricon system, check the model number on your controller (main processor) to determine compatibility. The 3511 uses the older form factor with a plastic faceplate and requires the corresponding backplane.
Q: Is this module discontinued?
Yes. Triconex has transitioned to newer I/O modules such as the 3503E (enhanced digital input) and 3513 series. The 3511 is no longer in active production. Availability is limited to new surplus and tested used inventory. For Tricon v9 and v10 systems still in operation, we recommend securing spares while stock remains available.
Q: What is the difference between the 3511 and the 3503E?
The 3503E is a newer, enhanced digital input module with higher channel density (64 channels), faster scan times, and improved diagnostics. However, the 3503E requires a newer Tricon chassis (v10.3 or later) and may not be backward-compatible with older systems. The 3511 is the correct replacement for legacy Tricon v9 and earlier v10 systems. The two modules are not physically interchangeable.
Q: Can I use this module in a non-safety application?
Yes. The 3511 can be used in both safety and non-safety applications. However, the module is certified for SIL 3 safety applications, and using it in a non-safety role does not degrade its reliability. The TMR architecture provides high availability even when SIL certification is not required.
Q: Does this module require external loop power?
No. The 3511 sources field power to the input circuits. Field devices do not require an external power supply; the module provides the necessary voltage and current through the input channel. This simplifies wiring and reduces cabinet component count.
Q: Can I hot-swap the 3511 in a running Tricon system?
Yes. The Tricon system supports hot-swap of I/O modules. You can remove and replace a 3511 while the system remains operational. During the swap, the input values for that module will be unavailable. Safety instrumented functions using those inputs should be placed in bypass or the process placed in a safe state during the replacement per site safety procedures.
Q: What testing do you perform before shipping?
We test every 3511 on a live Tricon system with a controller and I/O backplane. Our test procedure includes:
- Visual inspection for physical damage, corrosion, or previous repairs
- Edge connector cleaning and inspection
- TMR communication verification (all three channels per input)
- Input channel testing across all 32 channels with signal simulation
- Diagnostic verification (open-circuit, short-circuit detection)
- 24-hour continuous power-on soak test
A test report with channel test results and TMR voting verification is included with each shipment.
